826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Chute Assembly Parts Diagram

Chipper/Vacuum

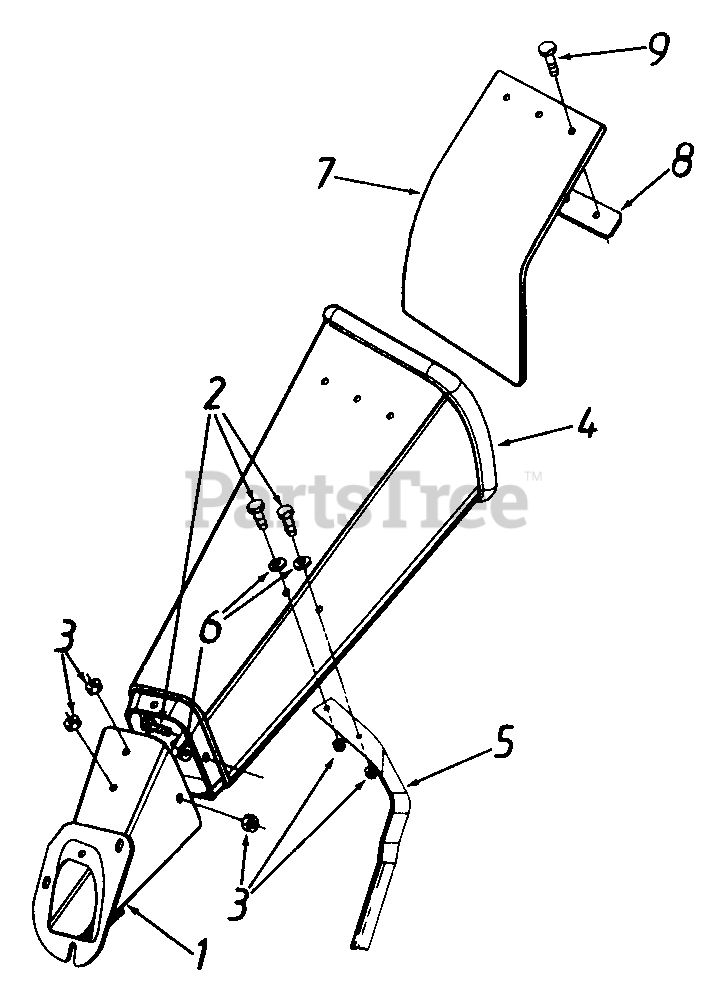

Chute Assembly Parts Diagram

  • Title

1

Cub Cadet 681-0068

CHUTE ASSEMBLY
(Superseded to 681-0068A)

Variations

Cub Cadet 681-0068-0483

USE 681-0068A-0483 ASM-CHUTE - CHARCOAL GRAY (0483)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0638

USE 681-0068A-0638 ASM-CHUTE - MTD/TROY-BILT RED (0638)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0498

USE 681-0068A-0498 CHUTE ASSY - OLD CUB YELLOW (0498)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0662

USE 681-0068A-0662 ASM-CHUTE - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0674

USE 681-0068A-0674 ASM-CHUTE - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0689

USE 681-0068A-0689 ASM-CHUTE - POLO GREEN (0689)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0068-0691

USE 681-0068A-0691 ASM-CHUTE - BLACK JACK (0691)

$165.99

$

Usually ships in 3-6 days

0

$165.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0258

SCREW HEX
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3027

NUT-LOCK
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 731-1574

CHUTE -CHIPPER UPPER
(Superseded to 731-1574A)

$188.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0173

FL-WASH..28" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 781-0625

BRACKET SUPPORT

Variations

Cub Cadet 781-0625-0483

SUPPORT BRACKET - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0625-0498

BRACKET-SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0625-0637

BRACKET-SUPPORT-CHIPP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0625-0638

SUPPORT BRACKET(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0625-0662

BRACKET-SUPPORT-CHIPP - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0625-0716

USE 781-0625-0637 BRACKET-SUP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 735-0249

FLAP
(Superseded to 735-0249A)

$23.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 781-0633

STRIP-FLAP

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 728-0175

RIVET

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 731-1617

TAMPER PLUG

$130.99

$

Usually ships in 3-6 days

0
