826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Differential Parts Diagram

Chipper/Vacuum

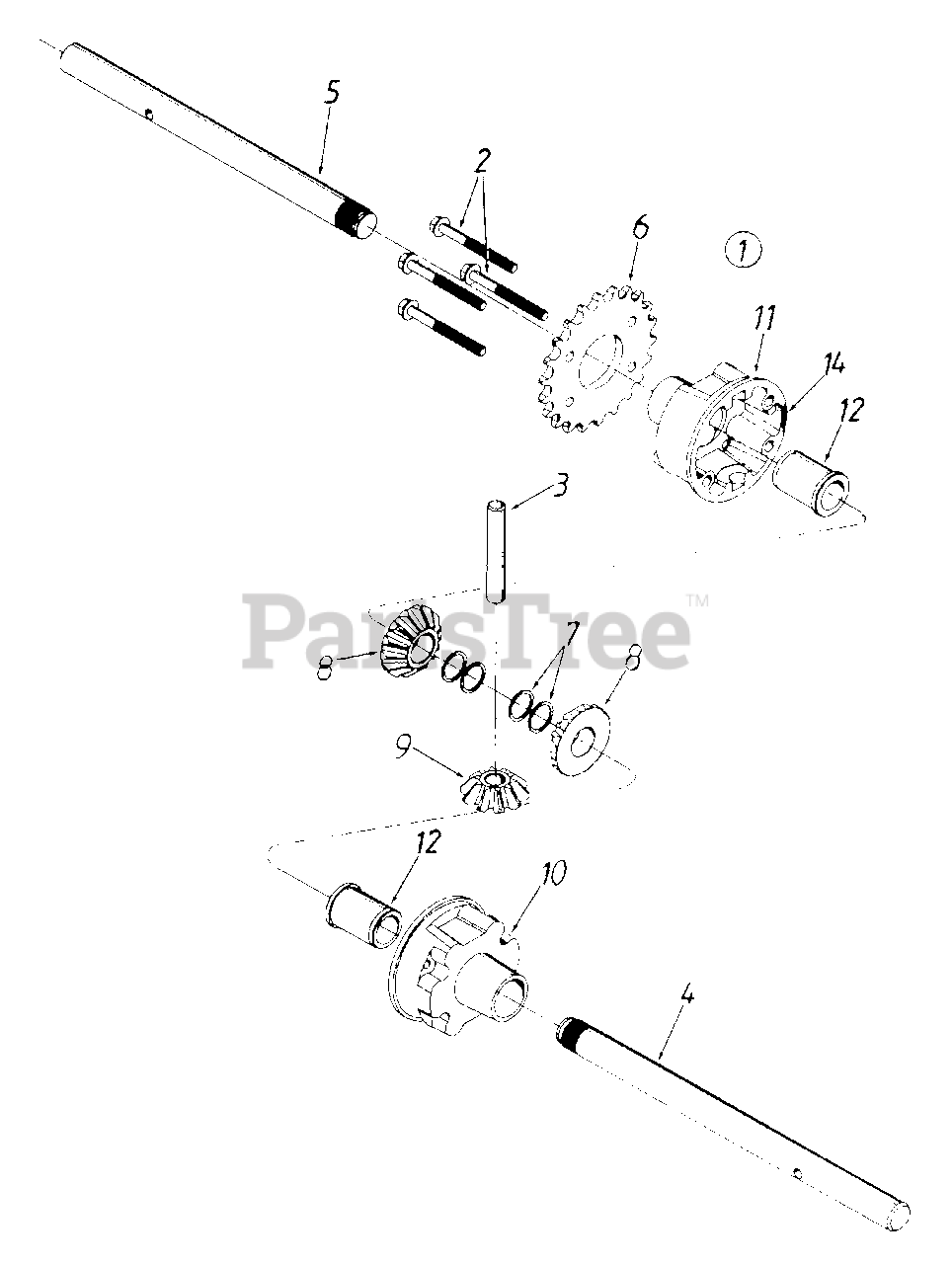

Differential Parts Diagram

  • Title

1

Cub Cadet 618-0168

DIFFERENTIAL ASSY COMPLETE

$

$

Not available

2

Cub Cadet 710-1206

SCREW-HEX

$6.99

$

In Stock, Qty 11

0

3

Cub Cadet 711-1035

SHAFT-CROSS

$

$

Not available

4

Cub Cadet 711-1037

AXLE-SHAFT 10.95" LONG

$

$

Not available

5

Cub Cadet 711-1038

AXLE-SHAFT 9.82" LONG

$

$

Not available

6

Cub Cadet 713-0445

SPROCKET 22 T

$

$

Not available

7

Cub Cadet 716-0232

RING-RETAINING (2 PER AXLE)

$

$

Not available

8

Cub Cadet 717-1358

GEAR-DIFFERENTIAL 14T

$

$

Not available

9

Cub Cadet 717-1437

GEAR-DIFFERENTIAL 10T

$

$

Not available

10

Cub Cadet 719-0333

HOUSING-DIFFERENTIAL RH

$

$

Not available

11

Cub Cadet 719-0334

HOUSING-DIFFERENTIAL LH

$

$

Not available

12

Cub Cadet 748-0383

BEARING-FLANGE
(Superseded to 948-0383)

$

$

Not available

?13

Cub Cadet 737-0300

GREASE
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

14

SEALANT-LOCTITE 5699

$

$

Not available
