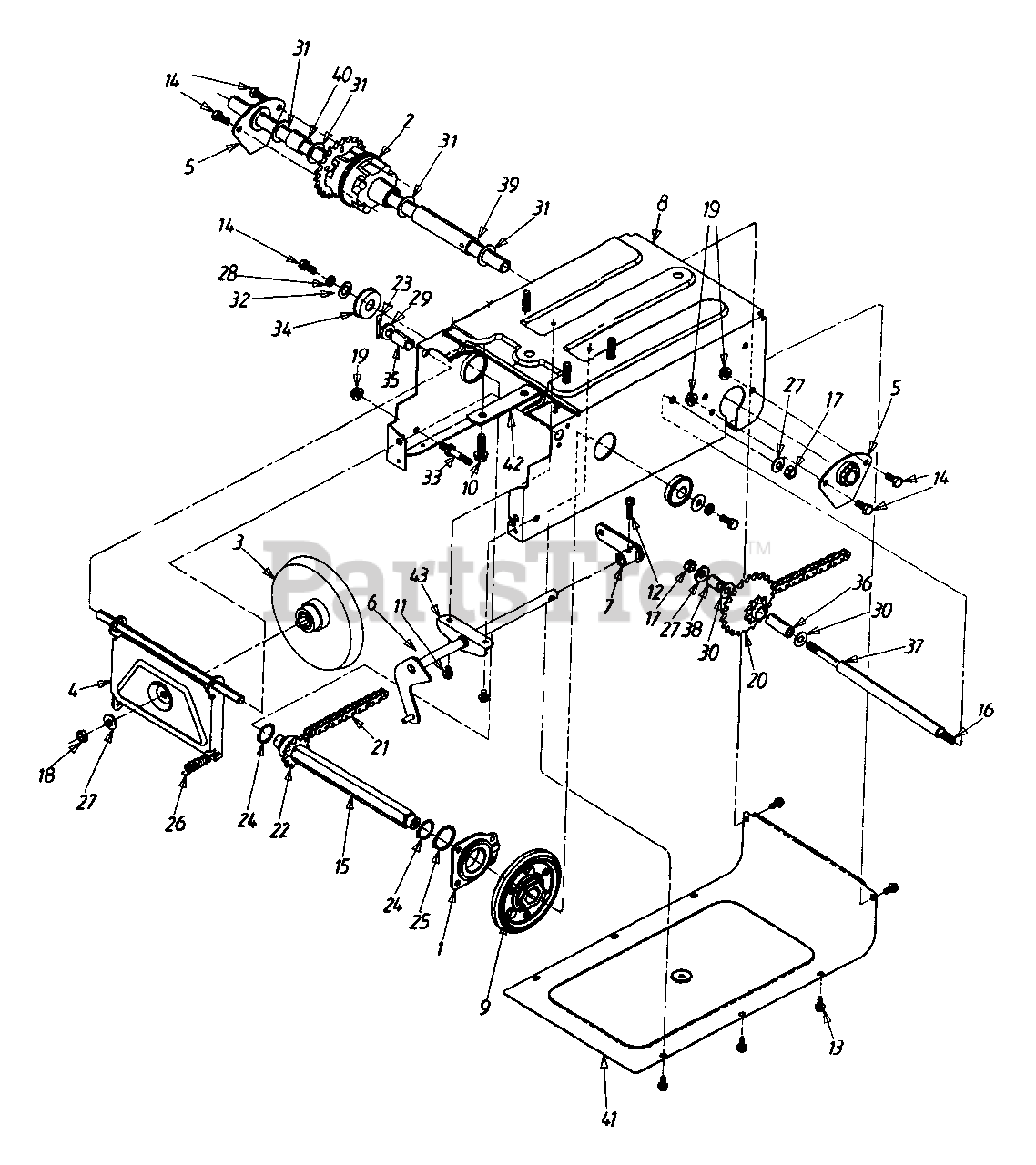

826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Differential Assembly Parts Diagram

Chipper/Vacuum

Differential Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0063

BEARING ASSY-FRICTION WHEEL

$85.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0168

DIFFERENTIAL ASSY COMP.

$

$

Not available

3

Cub Cadet 656-0009

DISC-FRICTION WHEEL ASSY COMP.
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

Cub Cadet 756-0564

DISC-FRICTION WHEEL
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

Cub Cadet 738-0865

BOLT-SHOULDER

$

$

Not available

Cub Cadet 741-0600

BEARING-BALL
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

4

Cub Cadet 681-0055

BRACKET ASSY-SUPPORT
(Superseded to 681-0055-0637)

$

$

Not available

5

Cub Cadet 681-0058

BRACKET ASSY-AXLE

$

$

Not available

6

Cub Cadet 681-0069

SHAFT ASSY-SHIFT

$

$

Not available

7

Cub Cadet 681-0072

ARM ASSY-SHIFT

Variations

Cub Cadet 681-0072-0637

SHIFT ARM (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 681-0073

FRAME ASSY

$

$

Not available

9

Cub Cadet 684-0042

WHEEL ASSY-FRICTION
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

10

Cub Cadet 710-0502A

SCREW-HEX SELF-TAP

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 710-0653

SCREW-HEX WASHER

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 710-0788

SCREW-HEX WASHER

$6.99

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0896

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3008

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-1026

SHAFT-HEX

$

$

Not available

16

Cub Cadet 711-1028

SHAFT-JACK

$

$

Not available

17

Cub Cadet 712-0241

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0711

NUT-HEX JAM

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

NUT-HEX FLANGE LOCK

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 713-0330

SPROCKET & HUB

$

$

Not available

21

Cub Cadet 713-0374

CHAIN

$23.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 713-0415

SPROCKET 117

$

$

Not available

23

Cub Cadet 714-0474

PIN-COTTER

$4.49

$

In Stock, Qty 16

0

24

Cub Cadet 716-0102

RING-SNAP

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 716-0185

RING-SNAP

$3.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0264

SPRING-EXTENSION
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0105

WASHER-BELL

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

WASHER-LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0160

WASHER-FLAT

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0267

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0287

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-3089

WASHER-FLAT

$

$

Not available

33

Cub Cadet 738-0908

BOLT-IDLER

$

$

Not available

34

Cub Cadet 741-0563

BEARING-BALL
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

35

Cub Cadet 748-0382

SPACER

$

$

Not available

36

Cub Cadet 750-0351

SLEEVE

$

$

Not available

37

Cub Cadet 750-0978

SPACER

$

$

Not available

38

Cub Cadet 750-0979

SPACER

$

$

Not available

39

Cub Cadet 750-0980

SPACER

$

$

Not available

40

Cub Cadet 750-0981

SPACER

$

$

Not available

41

Cub Cadet 781-0612

COVER-FRAME

Variations

Cub Cadet 781-0612-0483

COVER-FRAM - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0612-0662

COVER-FRAM - OYSTER GRAY (0662)

$

$

Not available

$

$

42

Cub Cadet 781-0638

PLATE-REINFORCEMENT
(Superseded to 781-0638A)

$

$

Not available

43

Cub Cadet 784-5590

BRACKET-SHIFT

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0
