826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Handle Assembly Parts Diagram

Chipper/Vacuum

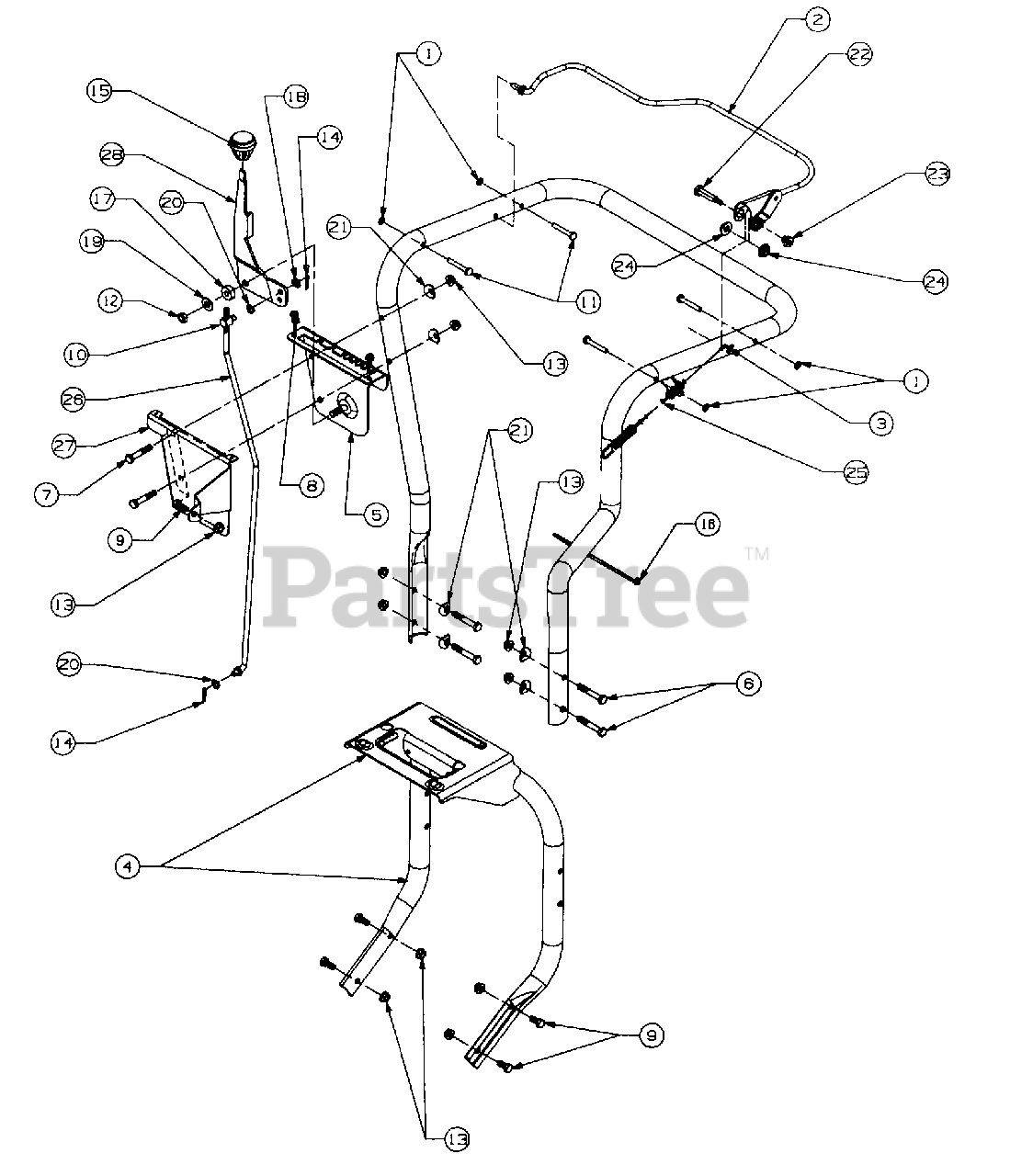

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 1539-019

PUSHNUT

$3.99

$

In Stock, Qty 16

0

2

Cub Cadet 647-0019

CONTROL ASSY

Variations

Cub Cadet 647-0019-0483

CONTROL-ASSEMBLY-CLUTCCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 647-0019-0498

CONTROL-ASSEMBLY-CLUTC(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 647-0019-0637

CONTROL-ASSEMBLY-CLUTC(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 647-0019-0638

CONTROL-ASSEMBLY-CLUTC(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

Cub Cadet 649-0008

HANDLE ASSY-UPPER

Variations

Cub Cadet 649-0008-0483

UPPER HANDLE ASSEMBLY (CHARCOAL) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 649-0008-0498

UPPER HANDLE ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 649-0008-0637

UPPER HANDLE ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 649-0008-0638

UPPER HANDLE ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 649-0008-0648

UPPER HANDLE ASSEMBLY (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

4

Cub Cadet 649-0012

HANDLE ASSY-LOWER

Variations

Cub Cadet 649-0012-0483

LOWER HANDLE ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 649-0012-0498

USE 649-0012-0716 HANDLE-ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 649-0012-0637

LOWER HANDLE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 649-0012-0638

LOWER HANDLE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 649-0012-0650

LOWER HANDLE ASSEMBLY - RED METALLIC (0650)

$

$

Not available

Cub Cadet 649-0012-0716

HANDLE-ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 681-0076

BRACKET ASSY-SHIFT

Variations

Cub Cadet 681-0076-0483

SHIFT ASSEMBLY BRACKET - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 681-0076-0498

SHIFT ASSEMBLY BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0076-0638

SHIFT ASSEMBLY BRACKET - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0076-0650

SHIFT ASSEMBLY BRACKET - RED METALLIC (0650)

$

$

Not available

Cub Cadet 681-0076-0662

SHIFT ASSEMBLY BRACKET - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 681-0076-0689

SHIFT ASSEMBLY BRACKET - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0076-0716

SHIFT ASSEMBLY BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

6

Cub Cadet 710-0116

SCREW-HEX
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

7

Cub Cadet 710-0380

SCREW-HEX
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0896

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3008

SCREW-HEX

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0677

FERRULE
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

11

Cub Cadet 711-0737

PIN-STUD
(Superseded to 911-0737)

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 712-0116

NUT-HEX LOCK

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 712-3004A

NUT-HEX LOCK

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0104

PIN-COTTER

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 720-0232

KNOB-SHIFT
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

16

Cub Cadet 725-0157

CABLE TIE

$3.49

$

In Stock, only 4 left!

0

17

Cub Cadet 735-0126

WASHER-RUBBER
(Superseded to 735-0126A)

$

$

Not available

18

Cub Cadet 736-0264

WASHER-FLAT

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0300

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0413

WASHER-SPRING

$6.49

$

In Stock, only 3 left!

0

21

Cub Cadet 736-0451

WASHER-SADDLE

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 738-0560

SCREW-SHOULDER
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

23

Cub Cadet 738-0561

NUT-SHOULDER
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

24

Cub Cadet 741-0402

BEARING-FLANGE PLASTIC

$

$

Not available

25

Cub Cadet 746-0921

CABLE-CLUTCH
(Superseded to 946-0921)

$55.99

$

In Stock, only 4 left!

0

26

Cub Cadet 747-0626

ROD-SHIFT

$

$

Not available

27

Cub Cadet 781-0626

COVER-SHIFT

Variations

Cub Cadet 781-0626-0483

SHIFT COVER CHAR - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0626-0637

SHIFT COVER POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0626-0650

SHIFT COVER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0626-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0626-0716

SHIFT COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

28

Cub Cadet 784-0297A

HANDLE-SHIFT

Variations

Cub Cadet 784-0297A-0483

SHIFT HANDLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-0297A-0498

SHIFT HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0297A-0662

HANDLE-SHIFT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0297A-0716

HANDLE-SHIFT (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$
