826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Idler, Pulley, And Bracket Parts Diagram

Chipper/Vacuum

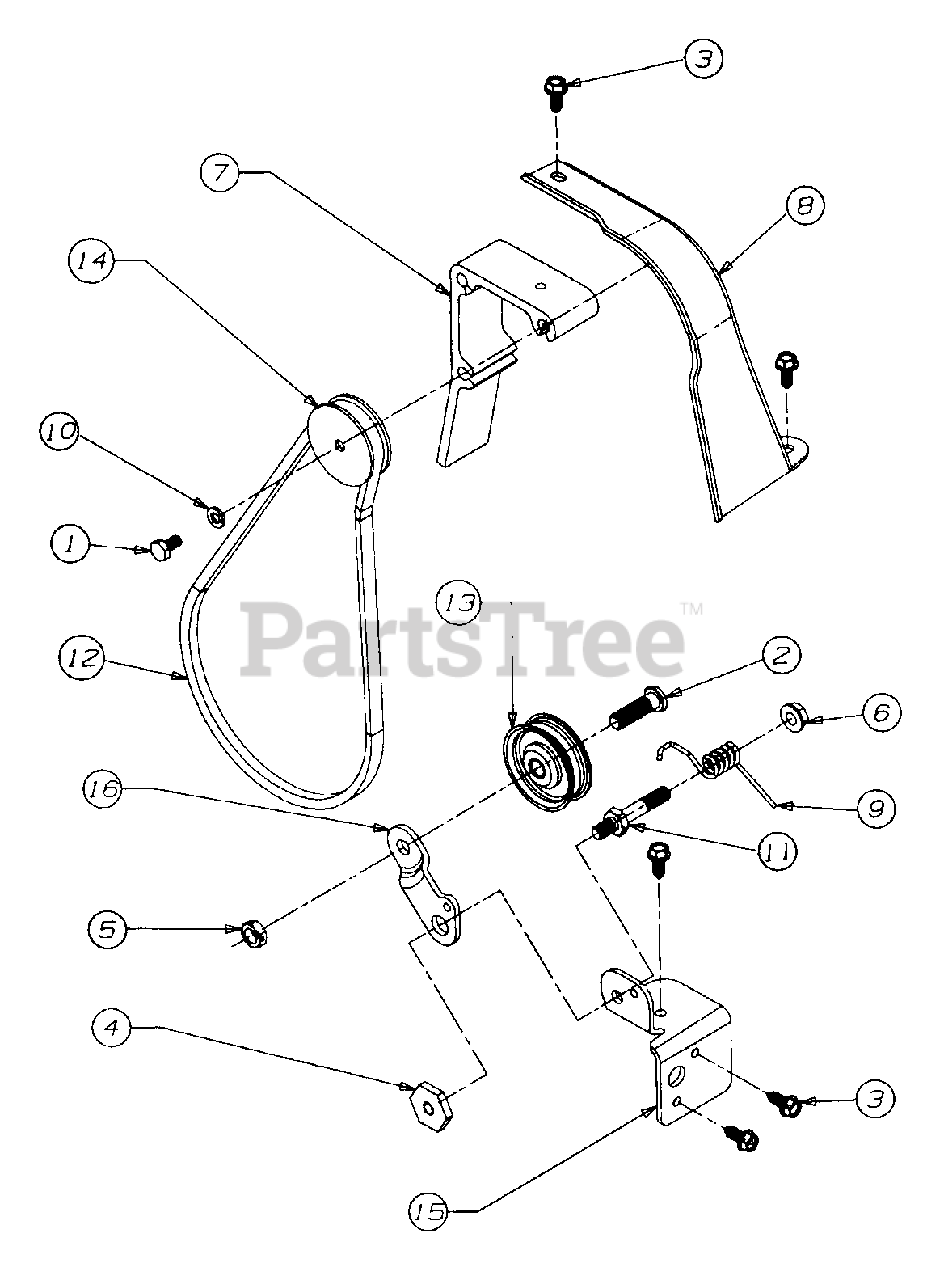

Idler, Pulley, And Bracket Parts Diagram

  • Title

1

Cub Cadet 710-0230

SCREW-HEX

$

$

Not available

2

Cub Cadet 710-0723

SCREW-HEX

$4.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0896

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0758

NUT-HEX SHOULDER
(Superseded to 911-0758)

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0266

NUT-HEX LOCK
(Superseded to 712-0266A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

NUT-HEX LOCK FLANGE

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 719-0330

ADAPTER-MOUNTING
(Superseded to 719-0359)

$31.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-1584

COVER-BELT

Variations

731-1584-0637

Cub Cadet 731-1584-0637

Belt Cover, Plastic - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 732-0745

SPRING-TORSION

$

$

Not available

10

Cub Cadet 736-0329

WASHER-LOCK
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 738-0908

BOLT-IDLER

$

$

Not available

12

Cub Cadet 754-0256

V-BELT
(Superseded to 954-0256)

$50.99

$

In Stock, only 1 left!

0

13

Cub Cadet 756-0313

IDLER-FLAT

$27.99

$

In Stock, Qty 11

0

14

Cub Cadet 756-0649

PULLEY

$

$

Not available

15

Cub Cadet 781-0611

BRACKET-IDLER PIVOT

Variations

781-0611-0483

Cub Cadet 781-0611-0483

IDLER BRACKET CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

781-0611-0498

Cub Cadet 781-0611-0498

IDLER BRACKET (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

781-0611-0499

Cub Cadet 781-0611-0499

IDLER BRACKET (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

781-0611-0637

Cub Cadet 781-0611-0637

IDLER BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

781-0611-0648

Cub Cadet 781-0611-0648

IDLER BRACKET (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

781-0611-0650

Cub Cadet 781-0611-0650

IDLER BRACKET (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

781-0611-0716

Cub Cadet 781-0611-0716

IDLER BRACKET (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

16

Cub Cadet 781-0614

BRACKET-IDLER

$

$

Not available
