826 CV (246-315B100) - Cub Cadet Chipper/Vacuum (1996) Wheel Pivot Breaker Assembly Parts Diagram

Chipper/Vacuum

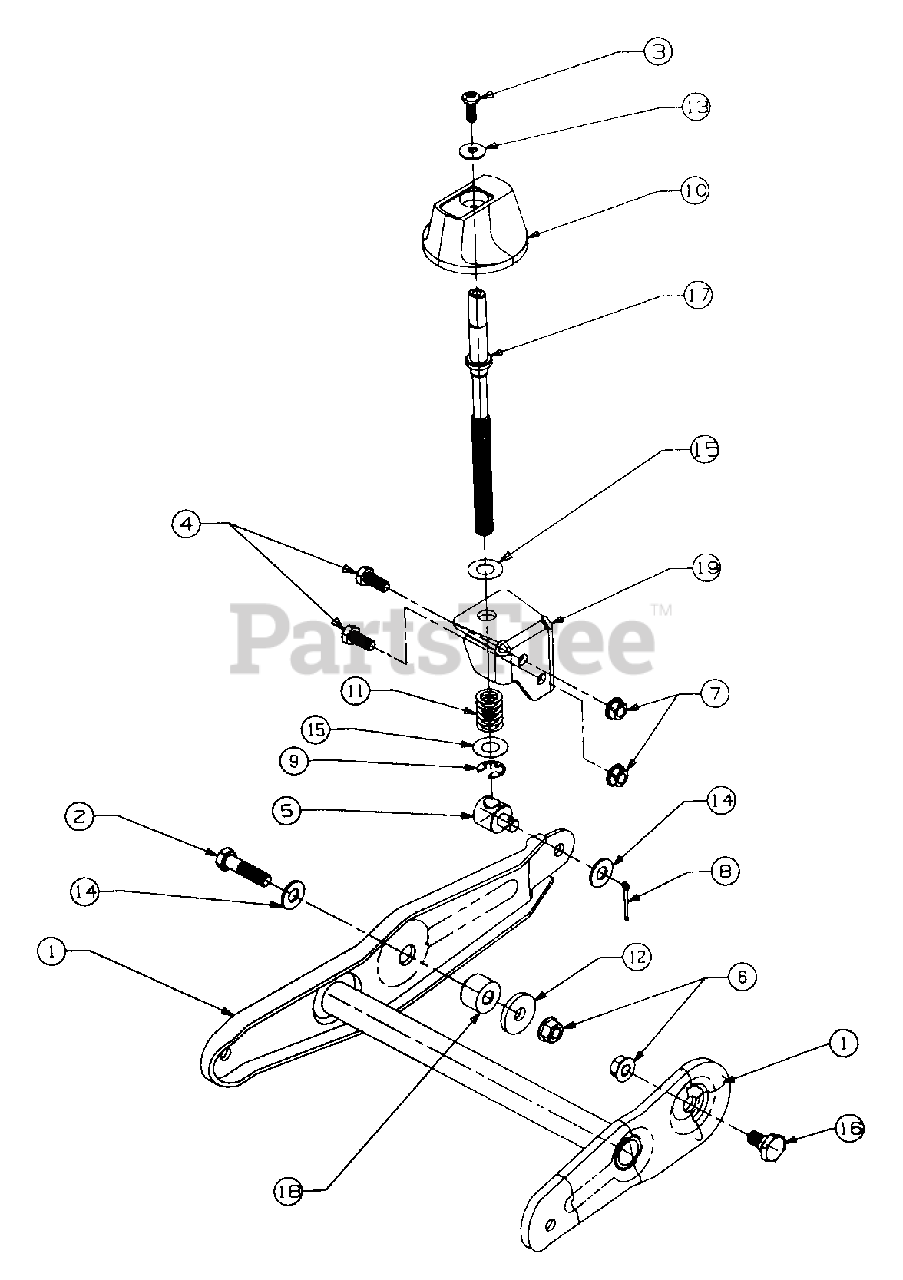

Wheel Pivot Breaker Assembly Parts Diagram

  • Title

1

Cub Cadet 681-0070

BRKT ASSY - WHEEL PIVOT

Variations

681-0070-0483

Cub Cadet 681-0070-0483

BRACKET ASSEMBLY-WHL PIVOT (CHARCOAL) - CHARCOAL GRAY (0483)

$

$

Not available

681-0070-0498

Cub Cadet 681-0070-0498

BRACKET ASSEMBLY-WHL PIVOT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

681-0070-0637

Cub Cadet 681-0070-0637

BRACKET ASSEMBLY-WHL PIVOT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

681-0070-0638

Cub Cadet 681-0070-0638

BRACKET ASSEMBLY-WHL PIVOT (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

681-0070-0662

Cub Cadet 681-0070-0662

BRACKET ASSEMBLY-WHL PIVOT (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

2

Cub Cadet 710-0520

SCREW-HEX

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet 710-0924

SCREW-MACHINE PAN HD

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3008

SCREW-HEX

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1041

FERRULE - ADJUSTABLE

$

$

Not available

6

Cub Cadet 712-0431

NUT-HEX FLANGE LOCK
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

NUT-HEX FLANGE

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0115

PIN-COTTER

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 716-0104

RING-E
(Superseded to 916-0104)

$4.49

$

In Stock, Qty 19

0

10

Cub Cadet 720-0236

KNOB-PLASTIC
(Superseded to 920-0236)

$

$

Not available

11

Cub Cadet 732-0645

SPRING-COMPRESSION
(Superseded to 932-0645)

$2.99

$

In Stock, only 4 left!

0

12

Cub Cadet 736-0247

WASHER- FLAT

$10.99

$

In Stock, Qty 10

0

13

Cub Cadet 736-0270

WASHER-BELL

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0300

WASHER-FLAT

$4.99

$

In Stock, Qty 18

0

15

Cub Cadet 736-0369

WASHER-FLAT

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet 738-0258

SCREW-SHOULDER
(Superseded to 938-0258)

$

$

Not available

17

Cub Cadet 747-0631

ROD-ADJUSTABLE

$

$

Not available

18

Cub Cadet 750-0985

SPACER

$

$

Not available

19

Cub Cadet 781-0605

BRACKET-HEIGHT ADJ

Variations

781-0605-0637

Cub Cadet 781-0605-0637

BRACKET-HGT-ADJ (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$
