826 T (313-648F100) - Cub Cadet 26" Snow Thrower (1993) Snow Thrower - Part I Parts Diagram

26" Snow Thrower

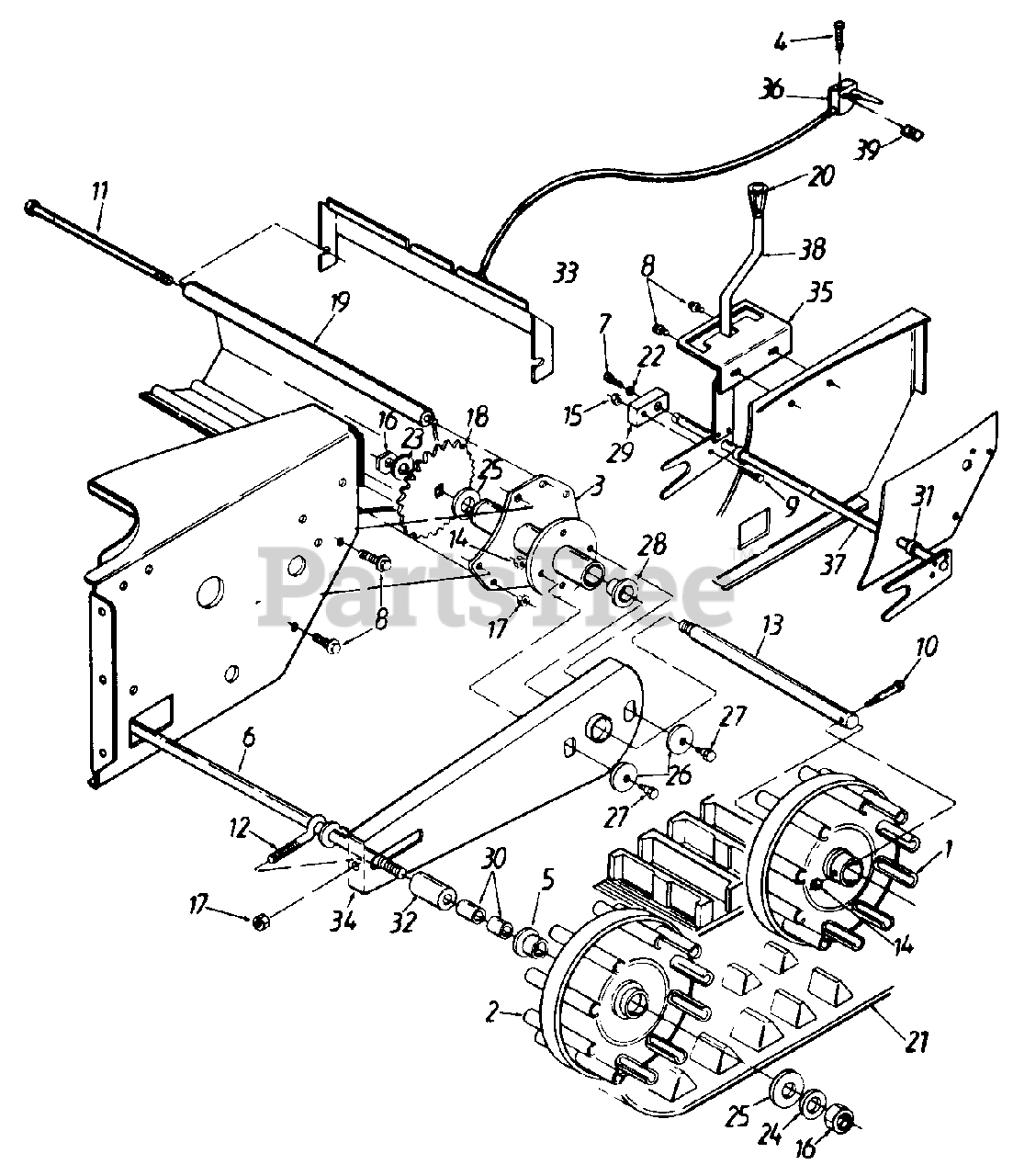

Snow Thrower - Part I Parts Diagram

  • Title

1

Cub Cadet 631-0002

Drive Wheel Ass'y.

$

$

Not available

2

Cub Cadet 631-0004

Idler Wheel Ass'y.
(Superseded to 631-0032A)

$42.99

$

In Stock, only 2 left!

0

3

Cub Cadet 683-0024

Track Hub Ass'y.
(Superseded to 683-0024-0637)

Variations

Cub Cadet 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1233

Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg.

$4.49

$

In Stock, Qty 13

0

5

Cub Cadet 741-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

6

Cub Cadet 684-0024

Idler Axle Ass'y.
(Superseded to 753-05977)

Variations

Cub Cadet 684-0024-0637

Replacement Kit, 6 - POWDER BLACK (0637)

$100.99

$

Usually ships in 3-6 days

0

$100.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

8

Cub Cadet 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Special)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 710-1227

Bolt 5/16-18 x 1.5" Lg.

$

$

Not available

11

Cub Cadet 710-1230

Hex Bolt Ass'y. 5/16-18 x 9.81" Lg.

$

$

Not available

12

Cub Cadet 710-1231

Eyebolt 5/16-18 x 3" Lg.

$9.49

$

In Stock, only 2 left!

0

13

Cub Cadet 711-0941

Drive Axle

$

$

Not available

14

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0346

Hex Ins. Jam L-Nut 1/2-20 Thd.

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0429

Hex L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 713-0115

24 Tooth Sprocket

$

$

Not available

19

Cub Cadet 719-0295

Track Housing
(Superseded to 719-0295A)

$

$

Not available

20

Cub Cadet 720-0143

Grip

$

$

Not available

21

Cub Cadet 731-1292

Snow Track

$291.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0255

Bell-Wash. .515" I.D. x 1.14" O.D.

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 736-0257

Fl-Wash. .531" I.D. x 1.25" O.D.
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0287

Fl-Wash. .793" I.D. x 1.24" O.D.

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0406

Fl-Wash. 3/8" I.D. x 7/16" O.D.
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

27

Cub Cadet 738-0155

Shld. Bolt .437" Dia. x .162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-0339

Flange Bearing 3/4" I.D. x 15/16" Lg.
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

29

Cub Cadet 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-0499

Spacer .5" I.D. x .78" Lg.

$22.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-0547

Spacer .628" I.D. x .5" Lg.

$5.49

$

In Stock, only 3 left!

0

32

Cub Cadet 750-0909

Spacer .51" I.D. x 1.34" Lg.

$9.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 784-5609

Steering Cable Brkt.

Variations

Cub Cadet 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5609-0691

USE 784-5609-0637 BRACKET-STE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5609-0692

STEERING BRACKET - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5609-0721

USE 784-5609-4044 BRACKET-STE - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

34

Cub Cadet 784-5639

Track Side Plate

Variations

Cub Cadet 784-5639-0637

PLATE-TRACK SIDE - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5639-0638

PLATE-TRACK SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 784-5642

Track Lockout Plate

Variations

Cub Cadet 784-5642-0637

PLATE-TRACK LOCKOU - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5642-0483

PLATE-TRACK LOCKOU - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5642-0498

PLATE-TRACK LOCKOU - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5642-0650

PLATE-TRACK LOCKOU - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5642-0665

PLATE-TRACK LOCKOU - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5642-0716

PLATE-TRACK LOCKOU - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5642-0721

USE 784-5642-4044 PLATE-TRACK - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5642-4033

PLATE-TRACK LOCKOU - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5642-4044

PLATE-TRACK LOCKOU - CRAFTSMAN RED (4044)

$

$

Not available

$17.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 746-0900

Track Steer Cable w/Trigger
(Superseded to 753-0707)

$69.99

$

In Stock, Qty 6

0

37

Cub Cadet 684-0009

Track Pivot Rod Ass'y.
(Superseded to 684-0009A)

Variations

Cub Cadet 684-0009-0721

USE 684-0009A-4044 ROD ASSY P - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4021

ROD ASSY PIVOT - CUB YELLOW 2 (4021)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0009-4033

USE 684-0009A-4033 ROD ASSY P - FLINT MICA (4033)

$52.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 684-0038

Track Lock Handle Ass'y.

Variations

Cub Cadet 684-0038-0637

Handle Assembly, Trackloc - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0638

Handle Assembly, Trackloc - MTD/TROY-BILT RED (0638)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-0665

Handle Assembly, Trackloc - YARDMAN GREEN (0665)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0038-4021

Handle Assembly, Trackloc - CUB YELLOW 2 (4021)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 712-0127

Flat Weld Nut #10-24 Thd.

$3.49

$

In Stock, Qty 13

0
