826 T (315E746F100) - Cub Cadet 26" Snow Thrower (1995) Engine And V-Belts Parts Diagram

26" Snow Thrower

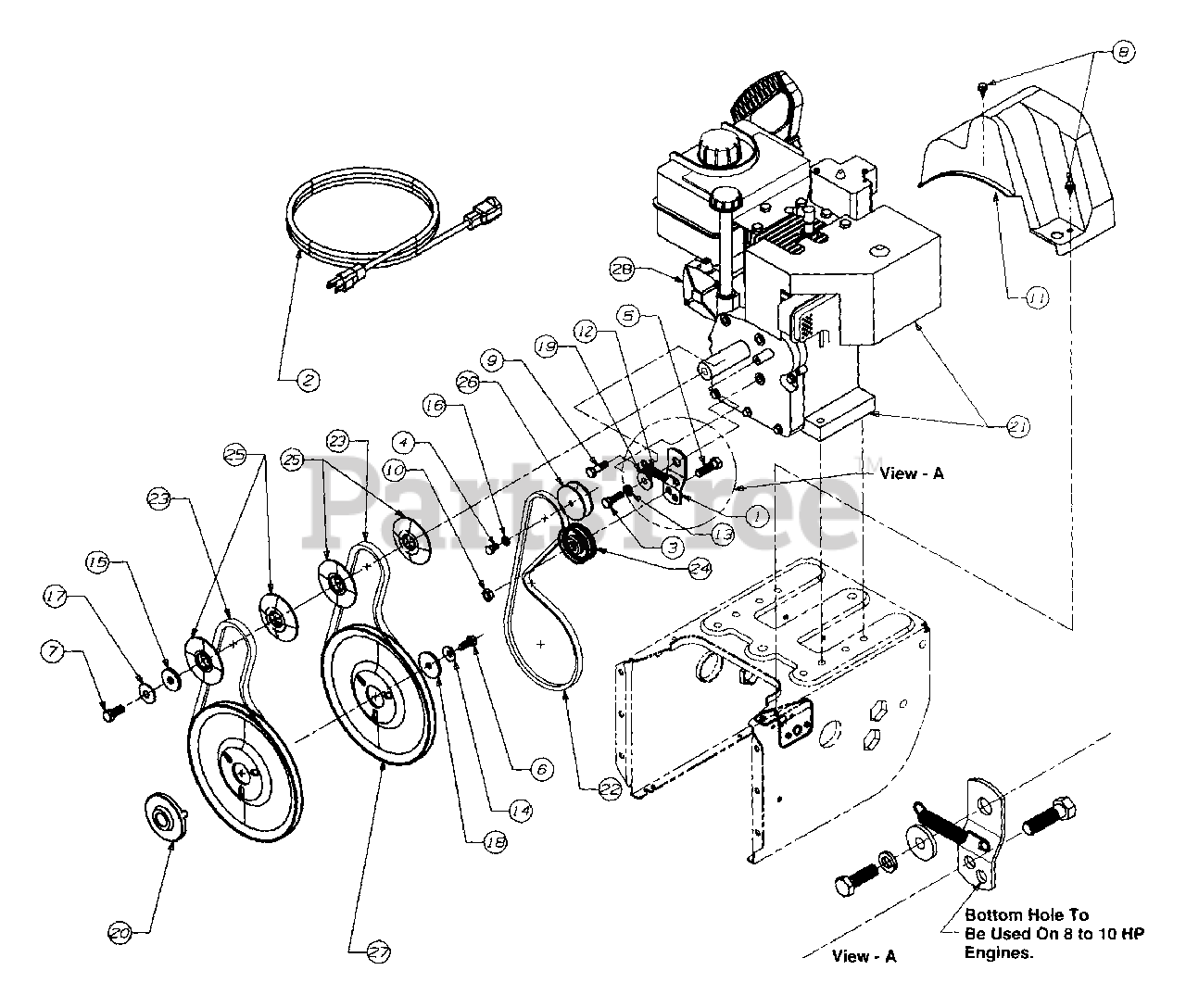

Engine And V-Belts Parts Diagram

  • Title

1

Cub Cadet 05896A

Bracket Drive Clutch Idler

Variations

Cub Cadet 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 629-0071

Cord, Extensions
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0117

Screw, Hex
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

4

Cub Cadet 710-0230

Hex Screw

$

$

Not available

5

Cub Cadet 710-0342

Screw, Hex
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0627

Screw, Hex

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0696

Screw, Hex

$6.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0776A

Hex Screw
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0888

Screw

$3.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-0181

Hex Jam Nut

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 731-1324

Belt Cover

$20.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-0710

Spring
(Superseded to 932-0710)

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0242

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0247

Flat Washer

$8.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

Cub Cadet 736-0331

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0505

Washer, Flat

$5.99

$

In Stock, Qty 6

0

19

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

20

Cub Cadet 748-0360

Pulley, Adapter
(Superseded to 948-0360)

$21.99

$

In Stock, only 3 left!

0

21

Eng., HMSK, Tec. 8 H.P., Horz

$

$

Not available

21

Eng., HMSK, Tec. 10 HP, Horz

$

$

Not available

22

Cub Cadet 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

23

Cub Cadet 754-0430

V-Belt (Matched)
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

24

Cub Cadet 756-0313

Idler, Flat

$24.99

$

In Stock, Qty 8

0

25

Cub Cadet 756-0569

Pulley, Half

$10.99

$

In Stock, Qty 5

0

26

Cub Cadet 756-0959

Pulley
(Superseded to 956-0959)

$

$

Not available

27

Cub Cadet 756-0967

Pulley, Auger

$52.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 390-987-000

Electric Start Kit
(Superseded to TC-33329H)

$

$

Not available
