826003 - Ariens 36" Sno-Brush Kit (SN: 000101 - 048999) Brush Drive Unit Parts Diagram

36" Sno-Brush Kit

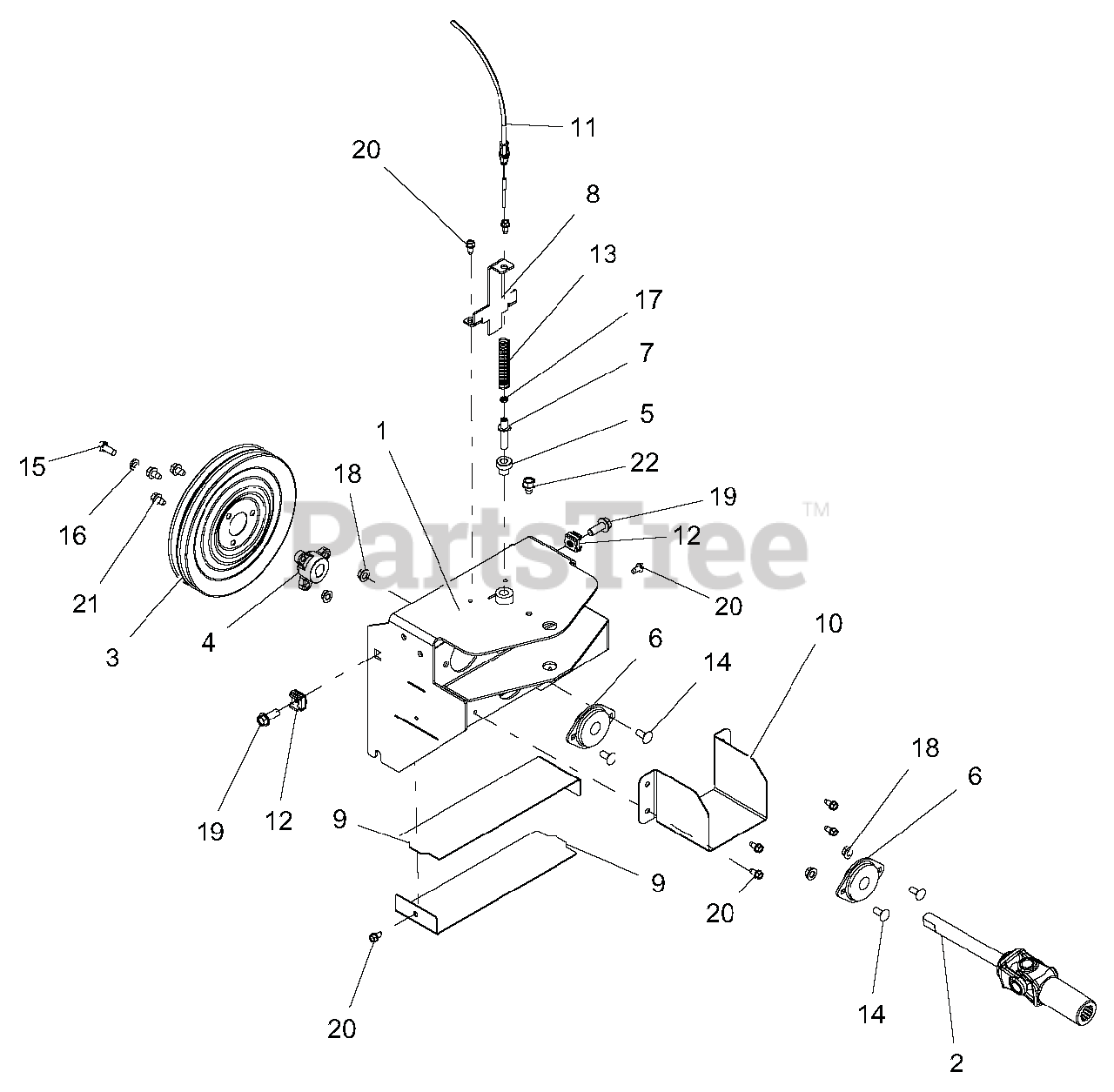

Brush Drive Unit Parts Diagram

  • Title
1

Ariens 04572251

ADAPTOR, 36" BRUSH, 926 FRAME

$133.04

$

Usually ships in 4-12 days

0

2

Ariens 04541900

DRIVELINE, SERIES 07 (U-JOINT)

Note: (U-JOINT)

$138.46

$

Usually ships in 4-12 days

0

3

Ariens 00268700

PULLEY, SPIN FORM DUAL GROOVE
(Superseded to 00268751)

$68.14

$

In Stock, only 1 left!

0

4

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$8.89

$

In Stock, only 1 left!

0

5

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.45

$

In Stock, only 4 left!

0

6

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$44.66

$

In Stock, Qty 8

0

7

Ariens 04636300

PIN, ADJUSTABLE ANGLE BRUSH

$13.36

$

In Stock, only 2 left!

0

8

Ariens 04651851

BRKT, PIN HOLDER

$17.33

$

Usually ships in 4-12 days

0

9

Ariens 04679851

GUARD, BRUSH PTO

$

$

Not available

10

Ariens 04680051

GUARD, BRUSH U-JOINT

$

$

Not available

11

Ariens 06900523

CABLE, REMOTE BRUSH LOCK

$67.02

$

In Stock, only 1 left!

0

12

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$5.53

$

In Stock, Qty 19

0

13

Ariens 08300601

SPRING, COMPRESSION

$8.89

$

In Stock, only 4 left!

0

14

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.24

$

In Stock, Qty 20+

0

15

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5

$2.24

$

In Stock, Qty 20+

0

16

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC

$

$

Not available

17

Ariens 06536600

@NUT-HEX 10-24 YWZC

$1.96

$

In Stock, only 4 left!

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC

$2.80

$

In Stock, Qty 20+

0

19

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.46

$

Usually ships in 4-12 days

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ

$2.24

$

In Stock, Qty 20+

0

21

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.24

$

In Stock, Qty 20+

0

22

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ

$2.80

$

In Stock, Qty 7

0
