826003 - Ariens 36" Sno-Brush Kit (SN: 000101 - 048999) Brush Head Parts Diagram

36" Sno-Brush Kit

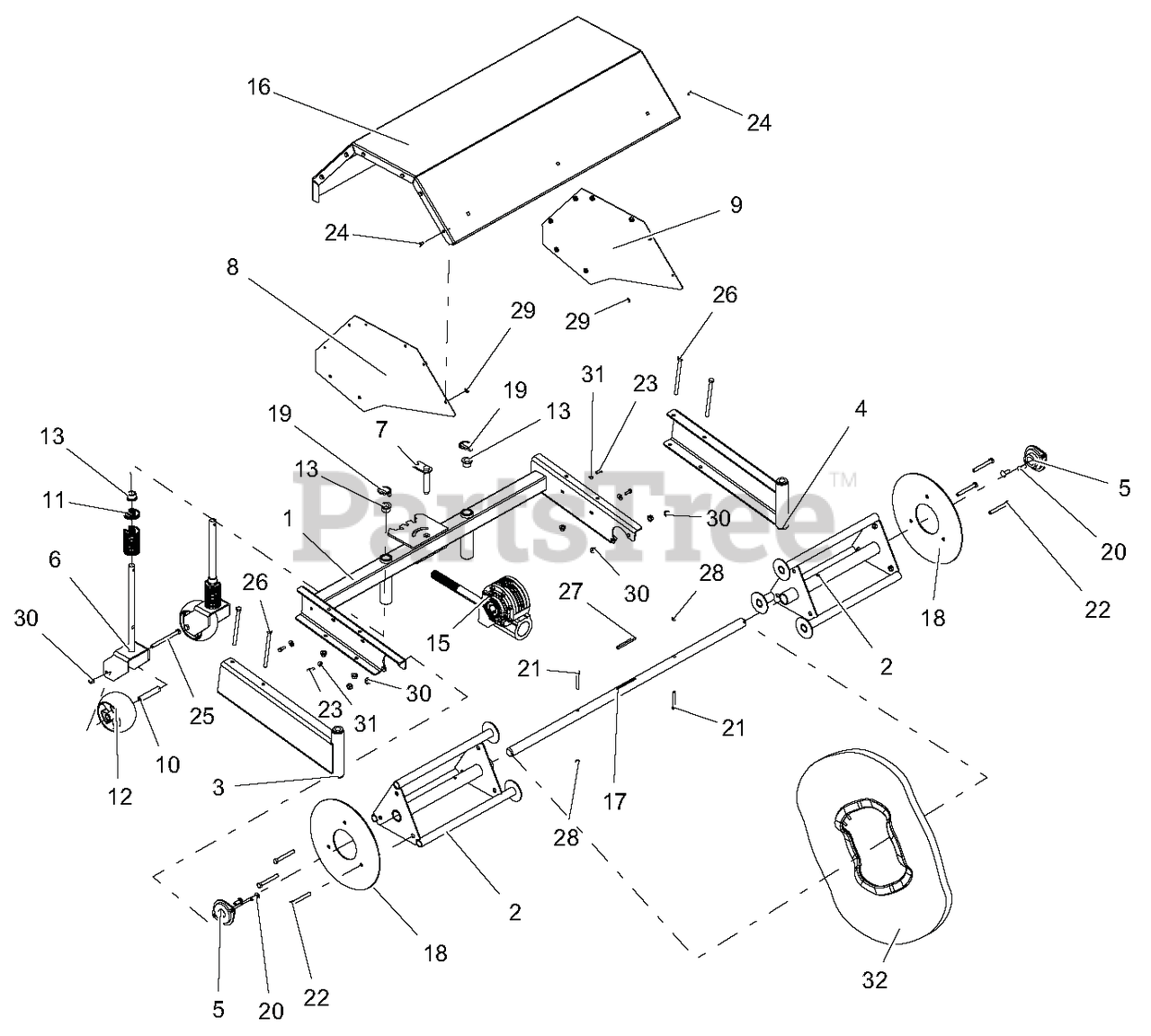

Brush Head Parts Diagram

  • Title

1

Ariens 04572151

FRAME, POWER BROOM 36"

$

$

Not available

2

Ariens 52612900

PB36 DRIVE CORE SERVICE KIT

$382.99

$

Usually ships in 4-12 days

0

3

Ariens 04594151

CASTER, ARM WELDMENT RH

$

$

Not available

4

Ariens 04594051

CASTER, ARM WELDMENT LH

$

$

Not available

5

Ariens 03733900

BEARING,2 BOLT FLANGE 1-1/8 ID

$76.99

$

Usually ships in 4-12 days

0

6

Ariens 04594951

FORK, CASTER

$56.99

$

Usually ships in 4-12 days

0

7

Ariens 04635600

WLDMT, BRUSH PIN

$36.99

$

Usually ships in 4-12 days

0

8

Ariens 04682051

WLDT - SIDE COVER RH

$50.99

$

Usually ships in 4-12 days

0

9

Ariens 04682151

WLDT - SIDE COVER LH

$50.99

$

Usually ships in 4-12 days

0

10

Ariens 00188000

SPACER, CASTER WHEEL

$11.99

$

Usually ships in 4-12 days

0

11

Ariens 03265100

CLIP-HOC FIXED

$3.99

$

In Stock, Qty 9

0

12

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

13

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 18

0

15

Ariens 04542000

GEARBOX, WORM - 8.25:1

$490.99

$

Usually ships in 4-12 days

0

16

Ariens 52613000

COVER,TOP - 36"BRUSH W/DECALS

$146.99

$

Usually ships in 4-12 days

0

17

Ariens 04594500

CENTER, SHAFT

$133.99

$

Usually ships in 4-12 days

0

18

Ariens 04594651

PLATE, END RETAINER

$32.99

$

Usually ships in 4-12 days

0

19

Ariens 06700004

PIN, 1/4X1-9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 5

0

20

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 4 left!

0

21

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 15

0

23

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

24

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

25

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$5.49

$

Usually ships in 4-12 days

0

26

Ariens 05982000

@BLT-HEX .38-16X5.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 72602600

KIT, BRISTLE - SET OF 18

$407.99

$

In Stock, only 1 left!

0
