826003 - Ariens 36" Sno-Brush Kit (SN: 049000 & Above) Brush Head Parts Diagram

36" Sno-Brush Kit

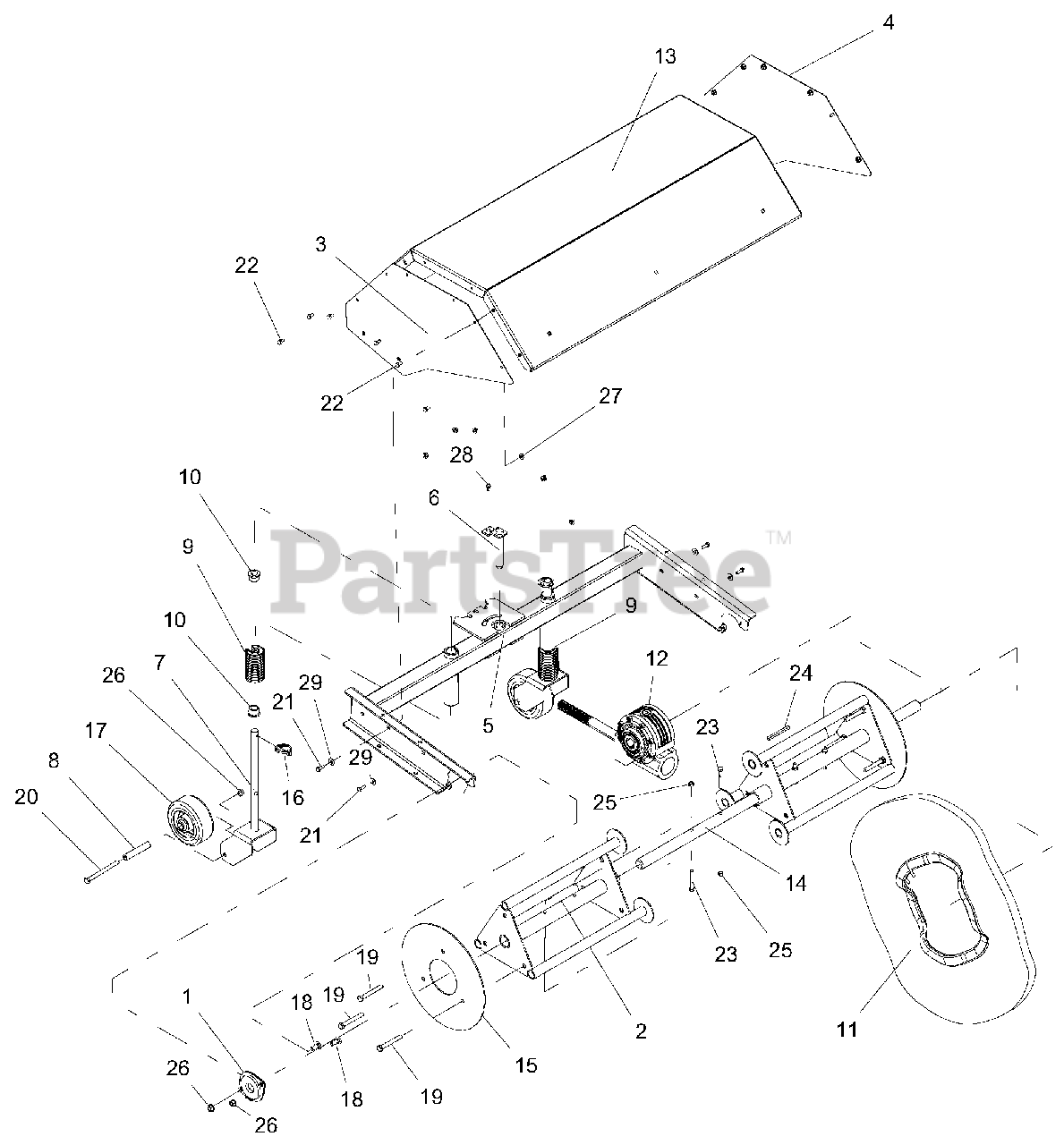

Brush Head Parts Diagram

  • Title

1

Ariens 03733900

BEARING,2 BOLT FLANGE 1-1/8 ID

$76.99

$

Usually ships in 4-12 days

0

2

Ariens 04593900

BRUSH, DRIVE CORE

$

$

Not available

3

Ariens 04682059

WLDT, SIDE COVER - RH

Note: (ORANGE)

$58.99

$

Usually ships in 4-12 days

0

4

Ariens 04682159

WLDT, SIDE COVER - LH

Note: (ORANGE)

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 04844951

FRAME, POWER BROOM 36"

Note: (BLACK)

$290.99

$

Usually ships in 4-12 days

0

6

Ariens 04845100

WLDMT, BRUSH PIN

$44.99

$

Usually ships in 4-12 days

0

7

Ariens 04848751

FORK, CASTER

Note: (BLACK)

$72.99

$

In Stock, only 2 left!

0

8

Ariens 00188000

SPACER, CASTER WHEEL

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 03265100

CLIP-HOC FIXED

$3.99

$

In Stock, Qty 9

0

10

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$6.99

$

In Stock, Qty 18

0

11

Ariens 72602600

KIT, BRISTLE - SET OF 18

$407.99

$

In Stock, only 1 left!

0

12

Ariens 04542000

GEARBOX, WORM - 8.25:1

$490.99

$

Usually ships in 4-12 days

0

13

Ariens 52614100

COVER, TOP - 36" BRUSH W/DECAL

$137.99

$

Usually ships in 4-12 days

0

14

Ariens 04594500

CENTER, SHAFT

$133.99

$

Usually ships in 4-12 days

0

15

Ariens 04594651

PLATE, END RETAINER

$32.99

$

Usually ships in 4-12 days

0

16

Ariens 06700004

PIN, 1/4X1-9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 5

0

17

Ariens 07101101

WHEEL, CASTER - 5"OD

$40.99

$

In Stock, only 1 left!

0

18

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

19

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, Qty 16

0

20

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$5.49

$

Usually ships in 4-12 days

0

21

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

22

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

23

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0
