827 E (1696042) - John Deere 27" Snow Thrower (2011) Auger Drive & Gear Case Group Parts Diagram

27" Snow Thrower

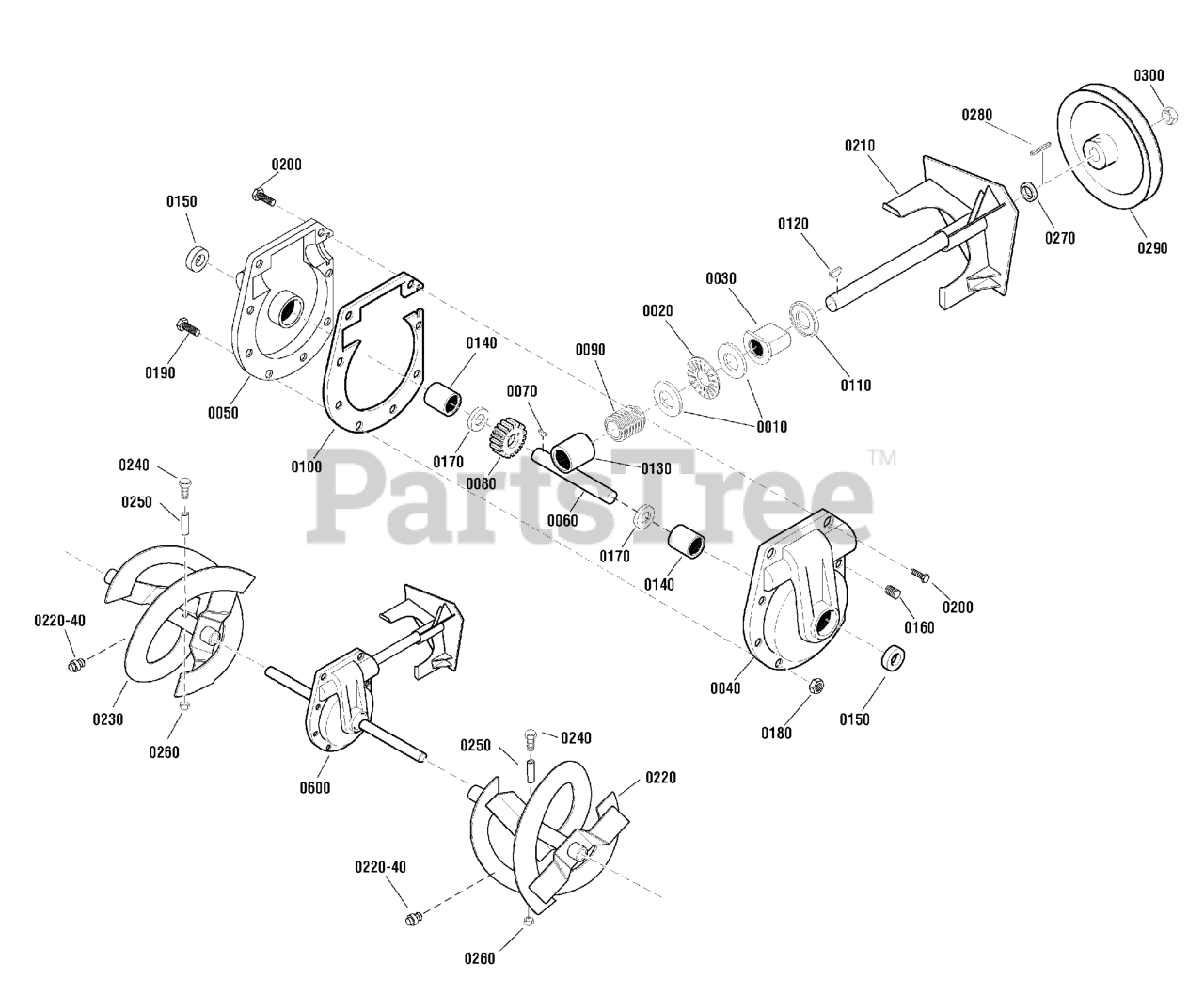

Auger Drive & Gear Case Group Parts Diagram

  • Title
0010

Murray 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 10

0

0020

Murray 50684MA

BEARING, Roll, 3/4ID x 1-1/4 OD

$6.49

$

In Stock, only 3 left!

0

0030

Murray 583126MA

BEARING, Flange, 3/4 ID x 1-1/8 OD

$13.99

$

In Stock, only 1 left!

0

0040

Murray 895MA

CASE, Gear, LH

$

$

Not available

0050

Murray 896MA

CASE, Gear, RH

$32.99

$

In Stock, only 4 left!

0

0060

Murray 760529MA

SHAFT, Auger

$76.99

$

Usually ships in 2-12 days

0

0070

Murray 73905MA

KEY, Woodruff, 3/4 x 1/4W
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

0080

Murray 53730MA

GEAR, Worm
(Superseded to 1752500YP)

$79.99

$

In Stock, only 1 left!

0

0090

Murray 53732MA

WORMGEAR, 1-3/4OD x 1-9/16

$49.99

$

In Stock, only 1 left!

0

0100

Murray 897MA

GASKET, Gear Box

$14.99

$

In Stock, only 1 left!

0

0110

Murray 53737MA

RING, Quad, 15/16 ID x 1/8 W

$4.99

$

In Stock, Qty 8

0

0120

Murray 50795MA

KEY, HI-PRO

$5.99

$

In Stock, only 2 left!

0

0130

Murray 53731MA

Bearing, Sleeve, 3/4 ID x 7/8 OD

$5.49

$

In Stock, Qty 12

0

0140

Murray 53743MA

BEARING, Sleeve, 1 x 1-1/4 x 1

$9.99

$

In Stock, only 2 left!

0

0150

Murray 780151MA

SEAL, Oil

$10.99

$

In Stock, Qty 8

0

0160

Murray 53749MA

PLUG, Pipe, 1/4-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 53748MA

WASHER, Flat, 1

$9.99

$

In Stock, only 2 left!

0

0180

Murray 71100MA

NUT, Hex-Flange Serated Locking, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, only 2 left!

0

0190

Murray 910828MA

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0200

Murray 330434MA

SCREW, 5/16-24 x 1-1/2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0210

Murray 1740584BOYP

ASSEMBLY, Impeller

$152.99

$

Usually ships in 2-12 days

0

0220

Murray 1740736BOYP

ASSEMBLY, Auger, LH

$159.99

$

Usually ships in 2-12 days

0

0220-40

Murray 10104MA

ZERK, Grease Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 19

0

0230

Murray 1740737BOYP

ASSEMBLY, Auger, RH

$

$

Not available

0240

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

0250

Murray 3943MA

SPACER, Sleeve, 1/4
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

0260

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, only 2 left!

0

0280

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0290

Murray 583146MA

PULLEY, 8.4 V4L, .67ID

$

$

Not available

0300

Murray 15X112MA

NUT, 1/2-20 Hex Flange

$5.49

$

In Stock, only 2 left!

0
