827 E (1696042) - John Deere 27" Snow Thrower (2011) Auger Housing Group Parts Diagram

27" Snow Thrower

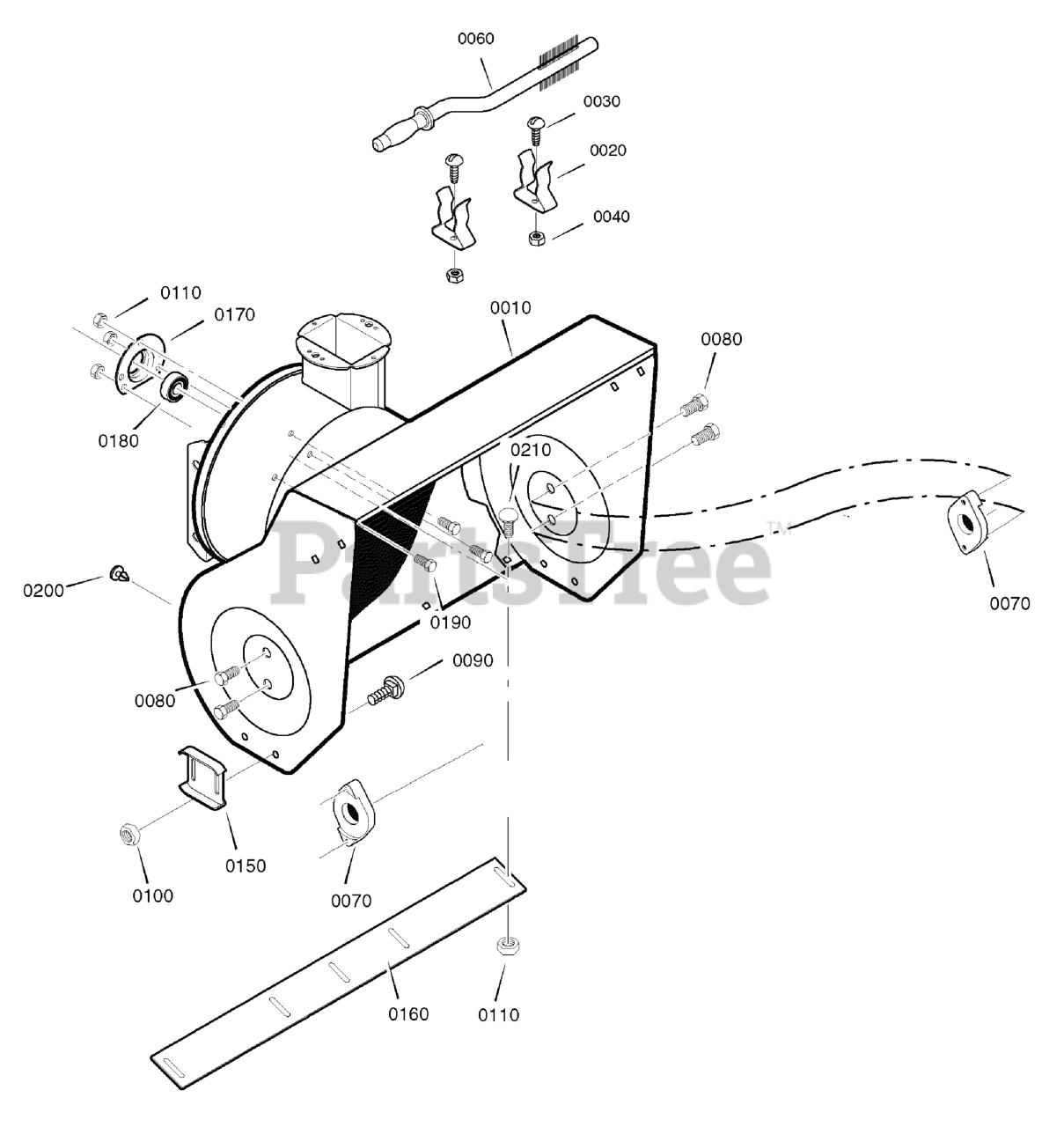

Auger Housing Group Parts Diagram

  • Title
0010

Murray 1687530YP

AUGER HOUSING ASSEMBLY

$467.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, Spring, Snow Brush

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss-Head, #10-24 X 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 7

0

0060

Murray 1736094YP

STICK, Cleanout Brush, 22-1/2

$34.99

$

In Stock, only 1 left!

0

0070

Murray 53757MA

Bearing, Auger Shaft, LF

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 17

0

0090

Murray 7091547YP

BOLT, Carriage, 3/8 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 1931277SM

NUT, Hex Flange Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1727854BMYP

SKID SHOE

$16.99

$

In Stock, only 3 left!

0

0160

Murray 1740745AYP

BLADE, Scraper, 27
(Superseded to 1740745BMYP)

$

$

Not available

0170

Murray 582957YZMA

RETAINER, BALL Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

Usually ships in 2-12 days

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0200

Murray 760040MA

PLUG, Panel, 48

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16 x 5/8 G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0
