827013 - Ariens 28", 32" Rear Bagger (SN: 000101 & Above) Bagger Vac Parts Diagram

28", 32" Rear Bagger

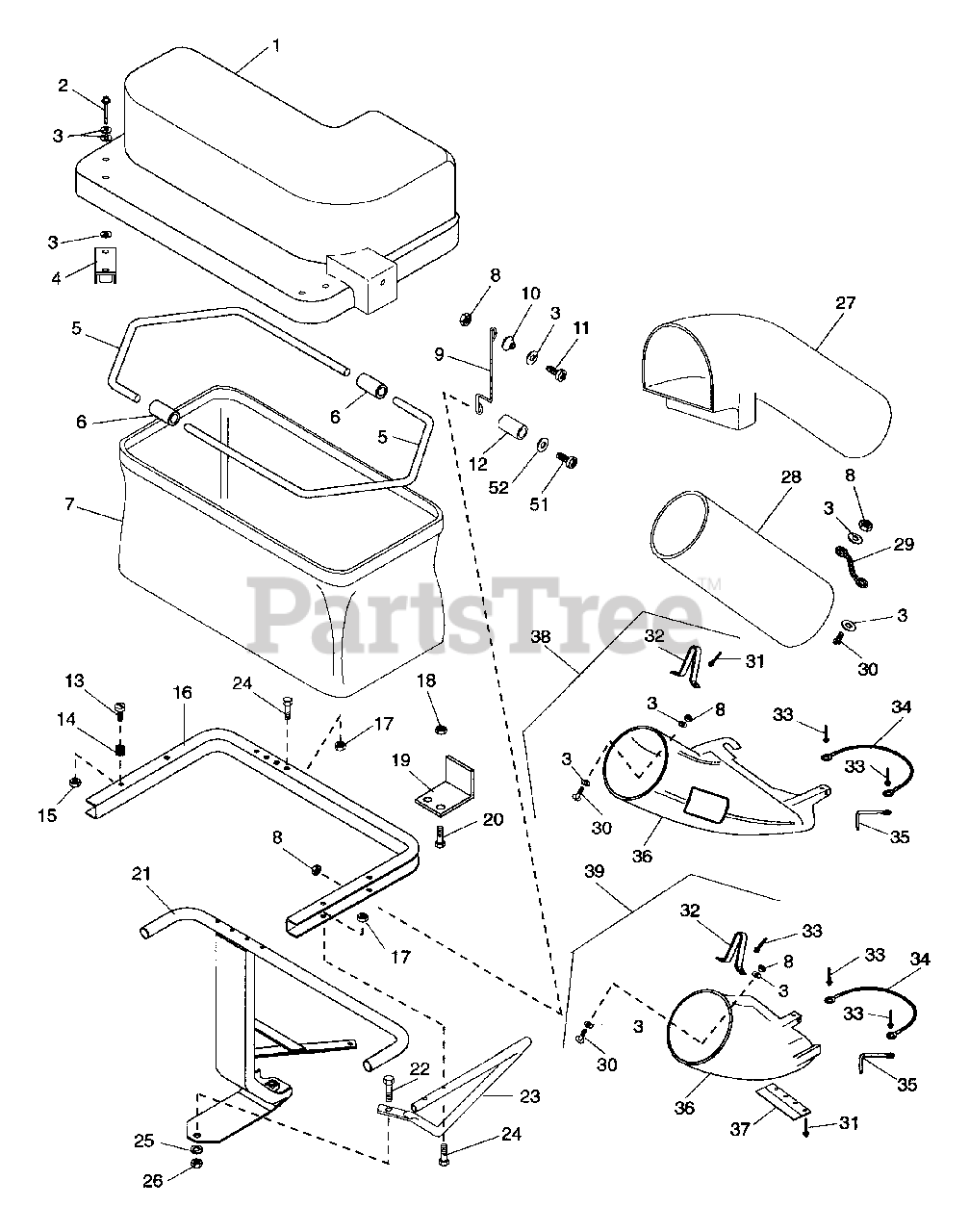

Bagger Vac Parts Diagram

  • Title

1

Ariens 53602900

COVER W/DECALS FOR 827013

Note: (Used Only On Model(s): 013).

$

$

Not available

1

Ariens 53603000

COVER W/DECALS FOR 836005/006

Note: (Used Only On Model(s): 007).

$

$

Not available

2

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

3

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 03647100

MAGNET

$

$

Not available

5

Ariens 03642051

FRAME

$

$

Not available

6

Ariens 03641300

CONNECTOR TUBE

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03641000

BAG

$

$

Not available

8

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

9

Ariens 03641900

LIFT ARM

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 03642200

BUSHING, HINGE

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

12

Ariens 03642500

SPLIT SPACER

$

$

Not available

13

Ariens 06110700

SCR-MCH 6-32X.625

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 07017400

BUMPER

$

$

Not available

15

Ariens 06521100

NUT-LK-MCH 6-32 W/INSERT
(Superseded to 06538900)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 03640800

FRAME, BAG SUPPORT

$

$

Not available

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 013).

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 007).

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 03641800

BRACKET, TUBE MOUNTING

$

$

Not available

20

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

21

Ariens 03641200

SUPPORT ASSEMBLY

Note: (Used Only On Model(s): 007).

$

$

Not available

22

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

23

Ariens 03641400

SUPPORT, BAG

Note: (Used Only On Model(s): 013).

$

$

Not available

24

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

Note: (Used Only On Model(s): 013).

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

Note: (Used Only On Model(s): 007).

$1.49

$

Usually ships in 4-12 days

0

25

Ariens 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 18

0

26

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

27

Ariens 03640700

BAGGER TUBE

$

$

Not available

28

Ariens 03642700

TUBE EXTENSION

$

$

Not available

29

Ariens 03642300

STRAP, RETAINER

$

$

Not available

30

Ariens 06112700

SCR-MCH 10-24X1.00 RDHD

$

$

Not available

31

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

Note: (Used Only On Model(s): 013).

$1.49

$

Usually ships in 4-12 days

0

31

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

Note: (Used Only On Model(s): 007).

$1.49

$

Usually ships in 4-12 days

0

32

Ariens 03642100

CHUTE STRAP

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

Note: (Used Only On Model(s): 013).

$

$

Not available

33

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

Note: (Used Only On Model(s): 007).

$

$

Not available

34

Ariens 02746400

LANYARD

Note: (Used Only On Model(s): 013).

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 02746400

LANYARD

Note: (Used Only On Model(s): 007).

$21.99

$

Usually ships in 4-12 days

0

35

Ariens 02746300

PULL PIN

Note: (Used Only On Model(s): 013).

$29.99

$

In Stock, only 2 left!

0

35

Ariens 02746300

PULL PIN

Note: (Used Only On Model(s): 007).

$29.99

$

In Stock, only 2 left!

0

36

Ariens 03640500

BOOT ASSEMBLY 40"
(Superseded to 53602800)

Note: (Used Only On Model(s): 007).

$

$

Not available

36

Ariens 03640600

BOOT ASSEMBLY 28/32"
(Superseded to 53602700)

Note: (Used Only On Model(s): 013).

$

$

Not available

37

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

38

Ariens 53602700

MOWER BOOT ASSEMBLY 28"/32"

Note: (Used Only On Model(s): 013).

$

$

Not available

39

Ariens 53602800

MOWER BOOT ASSEMBLY 40"

Note: (Used Only On Model(s): 007).

$

$

Not available
