827015 - Ariens 28", 32" Grass Bagger for Zero-Turn Mowers (SN: 000101 & Above) Boots, Vanes, And Tube Parts Diagram

28", 32" Grass Bagger for Zero-Turn Mowers

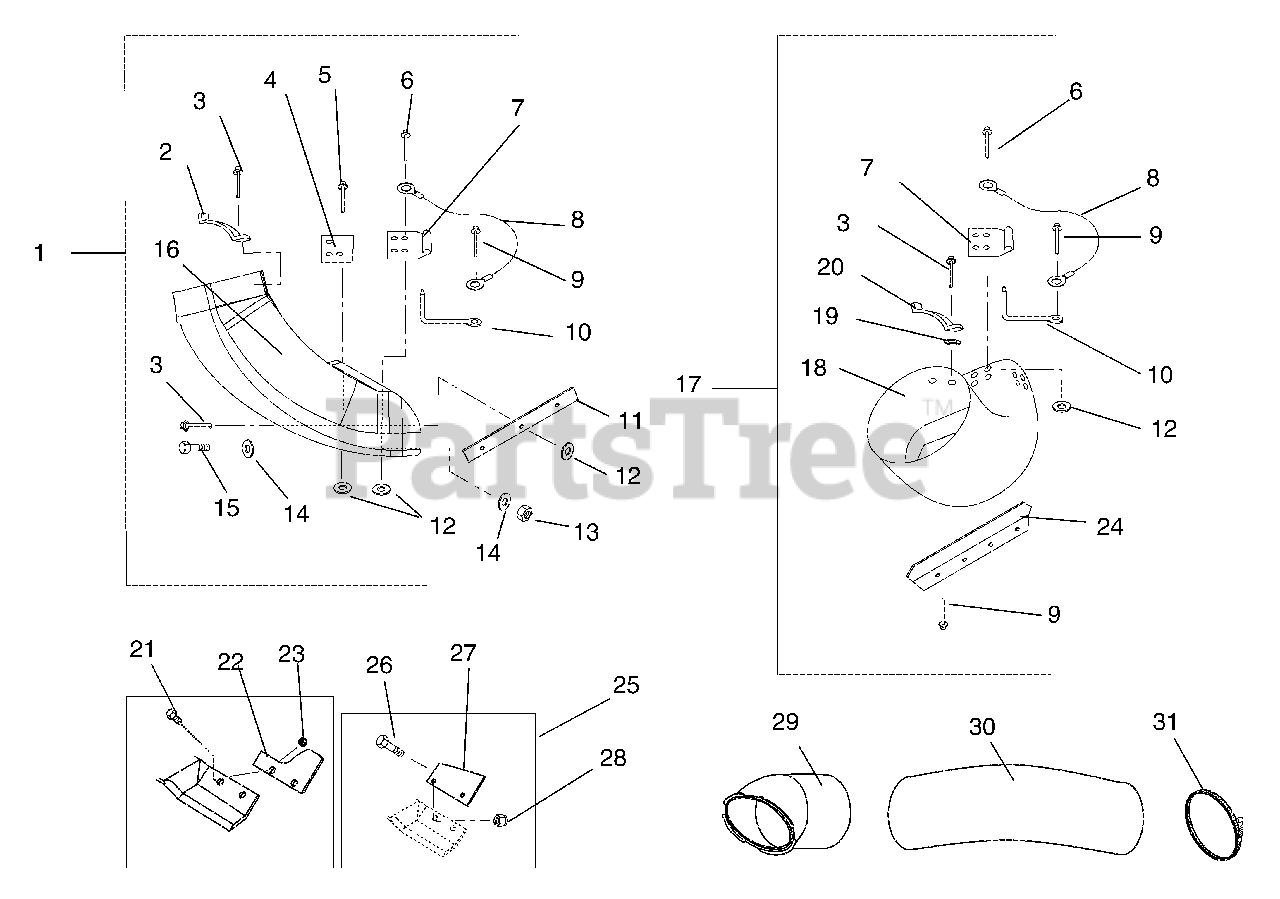

Boots, Vanes, And Tube Parts Diagram

  • Title

1

Ariens 52710000

BOOT ASSY, 28/32" BAGGER

$

$

Not available

2

Ariens 02746200

TUBE RETAINER

Note: (050355 - Gravely Part Number)

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 06803800

RVT-POP.187X.527 DOME ST

Note: (041098 - Gravely Part Number)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 02750800

BOOT SUPPORT

Note: (050364 - Gravely Part Number)

$

$

Not available

5

Ariens 06803900

RVT-POP.187X.277 DOME ST

Note: (050367 - Gravely Part Number)

$

$

Not available

6

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 9

0

7

Ariens 02746100

BOOT BRACKET

Note: (050363 - Gravely Part Number)

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 02746400

LANYARD

Note: (050369 - Gravely Part Number)

$

$

Not available

9

Ariens 06807200

RVT-TBLR .187X.375 ST-AL PL

$

$

Not available

10

Ariens 02746300

PULL PIN

Note: (050368 - Gravely Part Number)

$39.99

$

In Stock, only 2 left!

0

11

Ariens 02774700

SKIRT, RUBBER

$

$

Not available

12

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

14

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

16

Ariens 02752000

28"/32" BOOT ASSY
(Superseded to 52707200)

$

$

Not available

17

Ariens 53602100

MOWER BOOT ASSY- 40"

$

$

Not available

18

Ariens 03640400

PAN BOOT ASSEMBLY

$

$

Not available

19

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 02750600

TUBE RETAINER CLIP

Note: (050360 - Gravely Part Number)

$

$

Not available

21

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 01609200

VANE

$13.99

$

In Stock, only 2 left!

0

23

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$1.99

$

In Stock, Qty 5

0

24

Ariens 03640100

EXTENSION-CHUTE

$51.99

$

Usually ships in 4-12 days

0

25

Ariens 53504600

SERVICE VANE PACKAGE

Note: (035832 - Gravely Part Number)

$54.99

$

Usually ships in 4-12 days

0

26

Ariens 05970500

BLT-HEX .31-24X.75 GR8 YWZC
(Superseded to 05902019)

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 03536300

VANE
(Superseded to 53504600)

$54.99

$

Usually ships in 4-12 days

0

28

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$1.99

$

In Stock, Qty 5

0

29

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

30

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$97.99

$

In Stock, only 1 left!

0

31

Ariens 02770200

CLAMP, 7" TOOL-LESS HOSE

$52.99

$

Usually ships in 4-12 days

0
