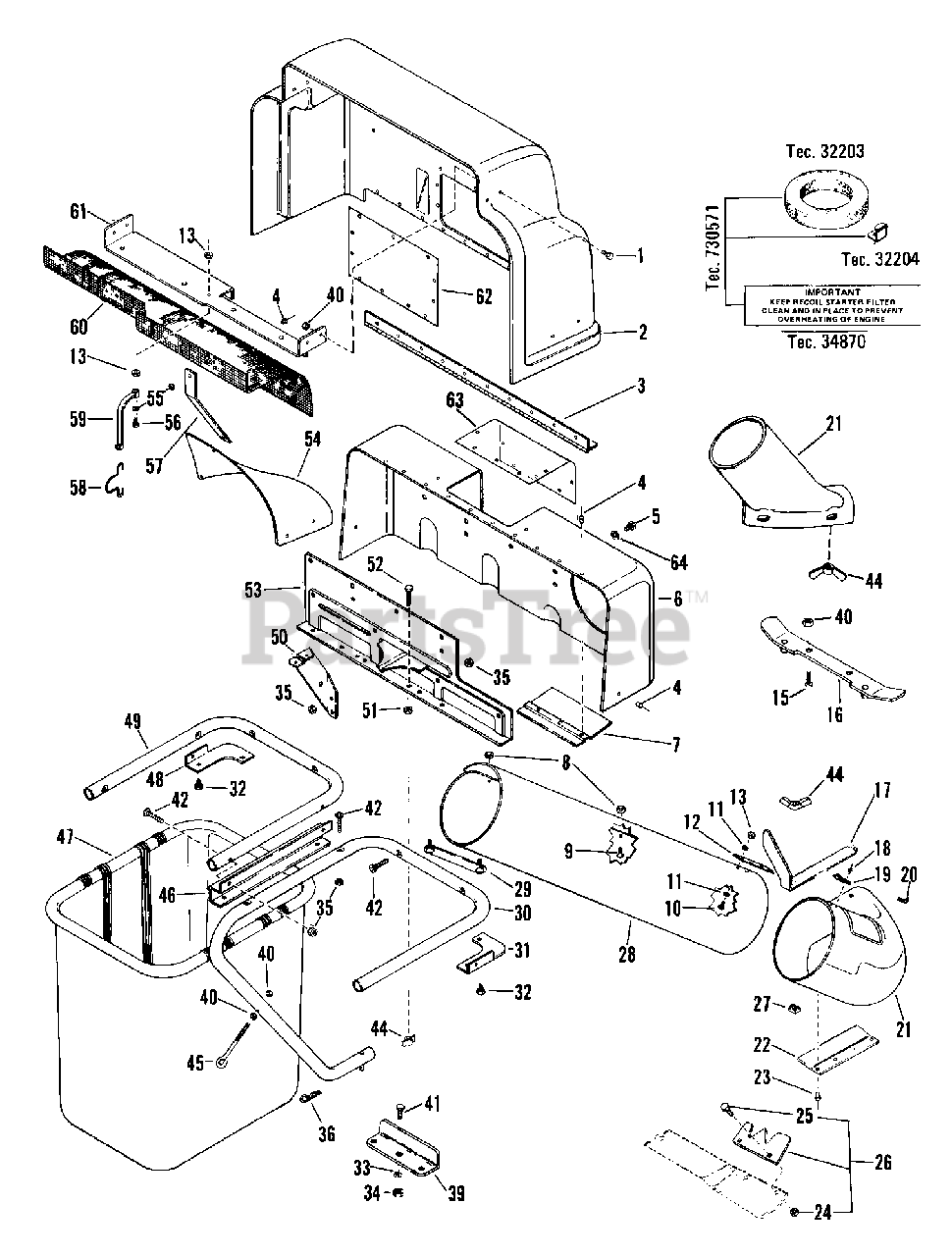

827021 - Ariens 28" Bagger (SN: 004001 & Above) > Parts Diagrams (2) > Bagger

  • Title
05902800

1

BLT-HEX .25-20X.50 PL GR2

Part# 05902800 (Superseded to 05947900)

OEM Warranty Repair Part for Ariens

Not available

52705600

2

HINGED COVER W/DECALS

Part# 52705600

OEM Warranty Repair Part for Ariens

Not available

02725300

3

HINGE

Part# 02725300

OEM Warranty Repair Part for Ariens

Not available

06802500

4

RVT-POP .187X.402 DOME ST

Part# 06802500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06104900

5

SCR-MCH .31-18X.62 SLTR PL

Part# 06104900

OEM Warranty Repair Part for Ariens

Not available

52705700

6

STATIONARY COVER

Part# 52705700

OEM Warranty Repair Part for Ariens

Not available

03558500

7

TUBE GUIDE

Part# 03558500 (Superseded to 53506300)

OEM Warranty Repair Part for Ariens

Not available

06505600

8

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06205300

9

BLT-RDHDSQNK .25-20X.50 SHT PL

Part# 06205300 (Superseded to 06220600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06101200

10

SCR-MCH 10-24X.50 SLRH PL

Part# 06101200 (Superseded to 06117600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06414100

11

WSHR-FL-STL .219X.500X.049 PL

Part# 06414100 (Superseded to 06442700)

OEM Warranty Repair Part for Ariens

Not available

03558400

12

STRAP

Part# 03558400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06504100

13

NUT-LK TOP 10-24 PL

Part# 06504100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06511300

14

NUT-WING W/INSERT .312 - 18

Part# 06511300 (Superseded to 06537100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06203700

15

BLT-RDHDSQNK .25-20X1.00 GR5

Part# 06203700 (Superseded to 06219800)

OEM Warranty Repair Part for Ariens

Not available

02730800

16

LATCH SPRING

Part# 02730800

OEM Warranty Repair Part for Ariens

Not available

02726500

17

BRACKET

Part# 02726500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06806200

18

RVT-TBLR .187X.375 OH ST PL

Part# 06806200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

02539600

19

RETAINER

Part# 02539600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

06702900

20

PIN-HAIR INT .09X.188 PL

Part# 06702900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

52705400

21

BOOT ASSEMBLY 32"

Part# 52705400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $111.74

02532200

22

EXTENSION CHUTE

Part# 02532200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06805300

23

RVT .187X.343 TR ST PL

Part# 06805300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06514500

24

NUT-LK TOP .312-24 PL GR C

Part# 06514500

OEM Warranty Repair Part for Ariens

Not available

05920600

25

BLT-HEX .31-24X.75 GR8

Part# 05920600 (Superseded to 05970500)

OEM Warranty Repair Part for Ariens

Not available

52701100

26

SERVICE VANE PACKAGE

Part# 52701100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $37.12

02532300

27

CLIP CONE

Part# 02532300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

02731000

28

28 IN & 32 IN TUBE BLANK

Part# 02731000 (Superseded to 02730900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $78.20

02533300

29

CLIP

Part# 02533300

OEM Warranty Repair Part for Ariens

Not available

02724800

30

RIGHT TUBE

Part# 02724800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

07401400

32

SCR-TAP .312-18X.50 HWH PL TR

Part# 07401400 (Superseded to 07411500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300600

33

WSHR-LK .500X.151 HVY PL

Part# 06300600 (Superseded to 06306600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06502100

34

NUT .50-13 PL

Part# 06502100 (Superseded to 06537300)

OEM Warranty Repair Part for Ariens

Not available

06504200

35

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06701000

36

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available

02726600

39

BRACKET

Part# 02726600 (Superseded to 02753900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06504000

40

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

05902400

41

BLT-HEX .50-13X1.00 PL GR2

Part# 05902400 (Superseded to 05947100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06105200

42

SCR-MCH .31-18X1.50 CROVCNTRS

Part# 06105200 (Superseded to 06119100)

OEM Warranty Repair Part for Ariens

Not available

06511300

44

NUT-WING W/INSERT .312 - 18

Part# 06511300 (Superseded to 06537100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

02432700

45

EYEBOLT

Part# 02432700 (Superseded to 02440100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02724700

46

TUBE BRACKET

Part# 02724700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.05

02724400

47

GRASS BAGGER BASKET

Part# 02724400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $94.97

02725100

48

LH CORNER BRACKET

Part# 02725100

OEM Warranty Repair Part for Ariens

Not available

02724600

49

CENTER TUBE

Part# 02724600 (Superseded to 02724651)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $43.43

02725200

50

BRACE

Part# 02725200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06501500

51

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

05921500

52

BLT-HEX .31-18X1.50 GR2 YWZC

Part# 05921500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

01232100

53

MOUNTING BRACKET

Part# 01232100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

02731200

54

BAFFLE

Part# 02731200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06406800

55

WSHR-FL-STL .194X.492X.047 PL

Part# 06406800 (Superseded to 06444400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06101600

56

SCR-MCH 10-24X.88 SLRH PL

Part# 06101600 (Superseded to 06119200)

OEM Warranty Repair Part for Ariens

Not available

02731100

57

BRACE

Part# 02731100

OEM Warranty Repair Part for Ariens

Not available

02738100

58

HOOK

Part# 02738100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07507500

59

BATTERY STRAP

Part# 07507500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

02730500

60

SCREEN

Part# 02730500

OEM Warranty Repair Part for Ariens

Not available

02730600

61

COVER BRACKET

Part# 02730600

OEM Warranty Repair Part for Ariens

Not available

02742700

62

STATIONARY COVER WINDOW

Part# 02742700

OEM Warranty Repair Part for Ariens

Not available

02724900

63

STATIONARY COVER

Part# 02724900

OEM Warranty Repair Part for Ariens

Not available

06407900

64

WSHR-FL-STL .344X1.125X.063PL

Part# 06407900 (Superseded to 06425500)

OEM Warranty Repair Part for Ariens

Not available
