828 WE (31AE8SST710) - Cub Cadet 28" Snow Thrower (2006) Drive Assembly Parts Diagram

28" Snow Thrower

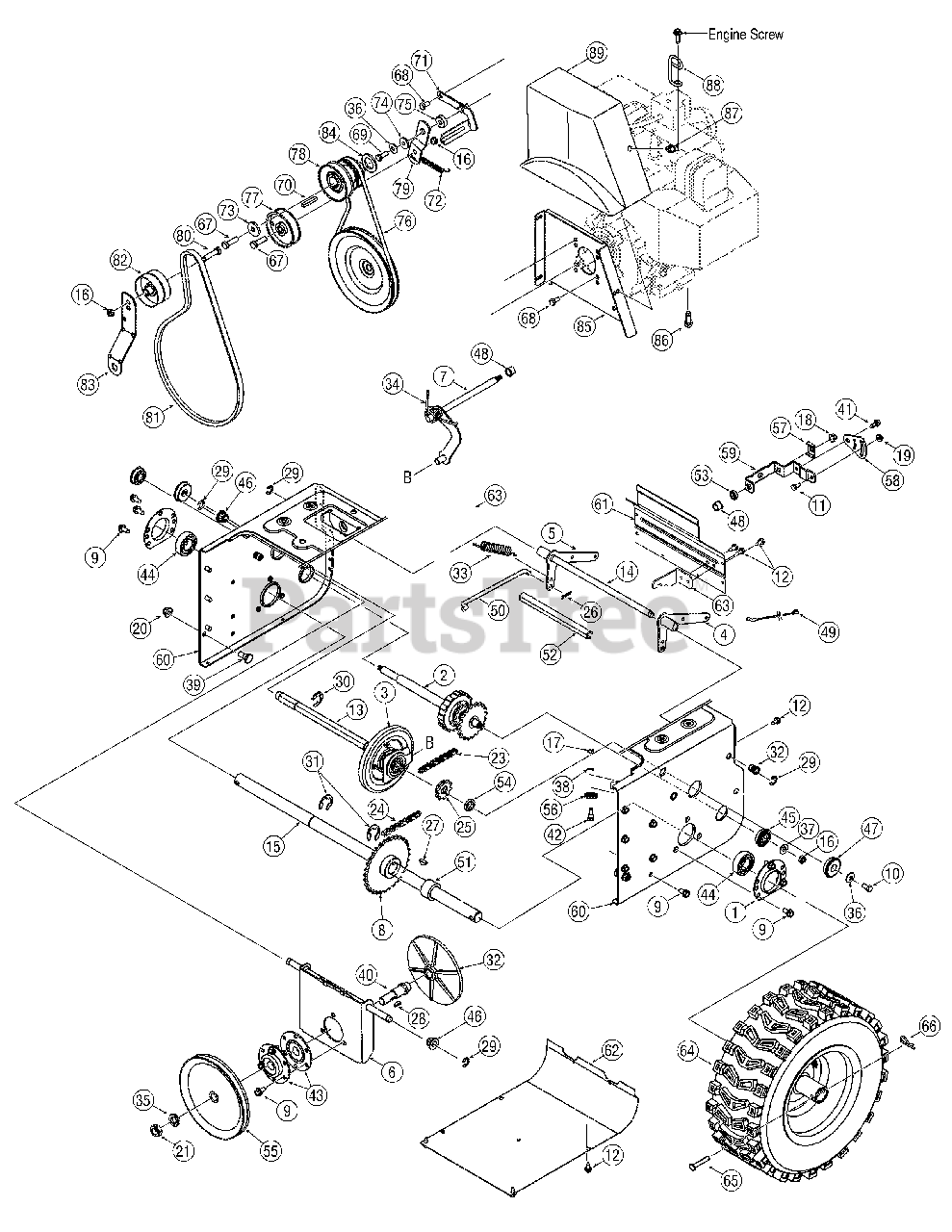

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 05244B

Housing, Bearing

$22.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0294E

Shaft Assembly
(Superseded to 918-0294E)

$429.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$154.99

$

In Stock, only 1 left!

0

3

Cub Cadet 718-04034

Wheel, Friction, Bonded

$

$

Not available

3

Cub Cadet 710-0896

Screw, Hex Wash

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 684-0118A

Bracket, Auger Actuator
(Superseded to 684-0118B-0637)

Variations

Cub Cadet 684-0118A-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 684-0119A

Bracket, Drive Actuator
(Superseded to 684-0119B-0637)

Variations

Cub Cadet 684-0119A-0637

USE 684-0119B-0637 BRACKET AU - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 684-04212

Bracket, Friction Drive Suprt.
(Superseded to 684-04212-0637)

Variations

Cub Cadet 684-04212-0637

BRACKET ASM-SUPPORT F - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 684-04229

Rod Assembly, Shift

$56.99

$

In Stock, only 1 left!

0

8

Cub Cadet 684-04235

Sprocket, 32T

$115.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04484

TT Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0538

Screw, Hex Cap Lock,

$4.49

$

In Stock, Qty 9

0

11

Cub Cadet 710-0751

Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1652

Screw, Hex Wash.

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 711-04279

Shaft, Hex Drive
(Superseded to 911-04279)

$

$

Not available

14

Cub Cadet 711-04605

Shaft, Actuator

$

$

Not available

15

Cub Cadet 711-04610

Axle, .995 x 25.35

$

$

Not available

16

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock

$4.49

$

In Stock, Qty 7

0

17

Cub Cadet 712-0138

Nut, Hex, 1/4-28 GR5

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04063

Nut, Hex Flnge Insert Lk

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

Flange, Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

Nut, Hex Flnge Insert Lk

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0413

Nut, Hex Insert Jam Lk

$5.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0717

Nut, Insert 3/8-16

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 713-0284

Chain, Endless, #41 x 36L

$22.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 713-0286

Chain, #420 x 40L

$61.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 713-04015

Sprocket, #41 x 10T
(Superseded to 913-04015)

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 714-0135

Key, Woodruff

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 714-0388

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 6

0

29

Cub Cadet 716-0104

E-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 17

0

30

Cub Cadet 716-0136

Ring, Retaining

$8.49

$

In Stock, Qty 9

0

31

Cub Cadet 716-04048

Ring, Retainer

$

$

Not available

32

Cub Cadet 717-0302

Plate, Drive
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-0121

Spring, Extension
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

34

Cub Cadet 732-04385

Spring, Torsion

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0242

Washer, Bell., .34 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0300

Washer, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

39

Cub Cadet 738-0143

Screw, Shoulder, .498 x .34

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 738-04184A

Screw, Shoulder, .368 x .113

$6.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-0924A

Screw, Hex Shldr., 1/4-28

$6.49

$

In Stock, Qty 6

0

43

Cub Cadet 741-0163A

Assembly, Bearing/Housing

$45.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 741-04025

Bearing, Self Aligning
(Superseded to 941-04025)

$33.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 741-04076

Bearing, Ball

$13.99

$

In Stock, Qty 16

0

46

Cub Cadet 741-04108

Bearing, Hex Flange

$5.99

$

In Stock, only 1 left!

0

47

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

48

Cub Cadet 741-0748

Bushing, Flange, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 746-0951

Cable, Auger Idler
(Superseded to 946-0951A)

$41.99

$

In Stock, only 4 left!

0

50

Cub Cadet 747-0973

Rod, Drive Clutch

$45.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-04703

Spacer., 1.0 ID x 1.50 OD

$11.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 750-04717

Spacer, .51 ID x 7.895 Lg.

$8.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 750-04719

Spacer, .515 ID x .750 OD

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-0997

Spacer, .675 x 1.0 x .23
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

55

Cub Cadet 756-0344

Pulley, Drive

$75.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 756-0625

Roller, Cable

$8.99

$

In Stock, Qty 20+

0

57

Cub Cadet 790-00156

Bracket, Spacer, Shft.

$7.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 790-00217A

Bracket, Pivot, Selector, Spd.

Variations

Cub Cadet 790-00217A-0637

Speed Select Shift Bracket - POWDER BLACK (0637)

$49.99

$

In Stock, only 1 left!

0

$8.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 790-00218A

Bracket, Shft., Selector, Spd.

Variations

Cub Cadet 790-00218A-0637

Shift Speed Bracket - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

60

Cub Cadet 790-00255

Frame, Transmission
(Superseded to 984-04244)

Variations

Cub Cadet 790-00255-0637

USE 984-04244 FRAME ASM-TRANS - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 790-00255-0716

USE 984-04244 FRAME ASM-TRANS - CUB YELLOW-99 (0716)

$

$

Not available

$

$

61

Cub Cadet 790-00258

Cover, Upper Frame

Variations

Cub Cadet 790-00258-0637

UPPER FRAME COVER - POWDER BLACK (0637)

$

$

Not available

$

$

62

Cub Cadet 790-00259

Cover, Lower Frame

Variations

Cub Cadet 790-00259-0606

Frame Cover, Lower Orange - MAJESTIC ORANGE (0606)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0638

COVER:FRAME:LOWER - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0650

COVER:FRAME:LOWER - RED METALLIC (0650)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0691

COVER:FRAME:LOWER - BLACK JACK (0691)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0716

COVER:FRAME:LOWER - CUB YELLOW-99 (0716)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0721

USE 790-00259-4044 COVER:FRAM - SEARS RED (0721)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4021

COVER:FRAME:LOWER - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4033

COVER:FRAME:LOWER - FLINT MICA (4033)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4044

COVER:FRAME:LOWER - CRAFTSMAN RED (4044)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 790-00271

Bracket, Planetary Lock

$6.99

$

In Stock, only 1 left!

0

64

Cub Cadet 634-04179

Wheel Assembly - LH

Variations

Cub Cadet 634-04179-0911

WHEEL ASSEMBLY (4.8 x 8 x 16) (LH)(OYSTER-CARLISLE) - Carlisle Gray (0911)

$

$

Not available

$

$

64

Cub Cadet 634-04180

Wheel Assembly - RH

Variations

Cub Cadet 634-04180-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-04180-0931

WHEEL ASSEMBLY (4.8 x 8 x 16) (RH)(BEIGE-CARLISLE) - Carlisle Beige (0931)

$

$

Not available

$

$

64

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 734-1532

Rim Assembly

$

$

Not available

64

Cub Cadet 734-2038

Tire
(Superseded to 734-2038-0901)

Variations

Cub Cadet 734-2038-0901

TIRE-16X4.8X8XTRAC - Carlisle (0901)

$89.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 741-0246A

Bearing

Note: not shown

$13.99

$

In Stock, only 4 left!

0

65

Cub Cadet 711-04615

Pin, Clevis

$5.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 714-0149B

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0191

Screw, 3/8-14 x 1.25 GR8

$4.49

$

In Stock, Qty 8

0

68

Cub Cadet 710-0237

Screw, 5/16-24 x .625

$4.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-1245B

Screw, Hx Cap 5/16-24

$7.99

$

In Stock, only 4 left!

0

70

Cub Cadet 714-0118

Key, Square, 1/4 x 1.5

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 790-00167A

Bracket, Belt Keeper
(Superseded to 790-00167A-0637)

Variations

Cub Cadet 790-00167A-0637

Belt Keeper Bracket - POWDER BLACK

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 732-0303

Spring, Extension
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

73

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25

$8.99

$

In Stock, Qty 20+

0

74

Cub Cadet 748-0234

Spacer, Shoulder

$4.49

$

In Stock, Qty 10

0

75

Cub Cadet 748-0418

Spacer, .33 ID x 1.01 OD x .36

$7.49

$

In Stock, only 1 left!

0

76

Cub Cadet 754-0367

V-Belt, 3/8 x 34.4
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

77

Cub Cadet 756-0240

Pulley, Flat Idler, 3.0 OD

$

$

Not available

78

Cub Cadet 756-0241B

Pulley, Dbl, 3.25 OD

$92.99

$

In Stock, only 1 left!

0

79

Cub Cadet 784-5726

Bracket, Idler, Drive

$37.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-0459A

Screw, 3/8-24 x 1.50

$6.99

$

In Stock, Qty 10

0

81

Cub Cadet 754-04131

V-Belt, 1/2 x 44.0
(Superseded to 954-04131)

$31.99

$

In Stock, Qty 6

0

82

Cub Cadet 756-0178

Idler, Flat, 2.75 OD

$18.99

$

In Stock, only 4 left!

0

83

Cub Cadet 784-0385B

Bracket, Idler, Auger
(Superseded to 784-0385D)

$27.99

$

In Stock, only 1 left!

0

84

Cub Cadet 750-1148A

Spacer 1.02 x 1.63 x .1425

$46.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 790-00254

Bracket, Belt Cover
(Superseded to 790-00254A-0637)

Variations

Cub Cadet 790-00254-0637

BRACKET-COVER BELT - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 710-0654A

Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 710-0607

Screw, Hx Wash Hd Tapp

$6.49

$

In Stock, Qty 20+

0

88

Cub Cadet 732-0705

Guide, Chute Cable

$11.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 731-2531

Cover, Belt
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0
