831 LS (245-638-100) - Cub Cadet Log Splitter Engine (1995) Rewind Starter And Flywheel Assembly Parts Diagram

Log Splitter Engine

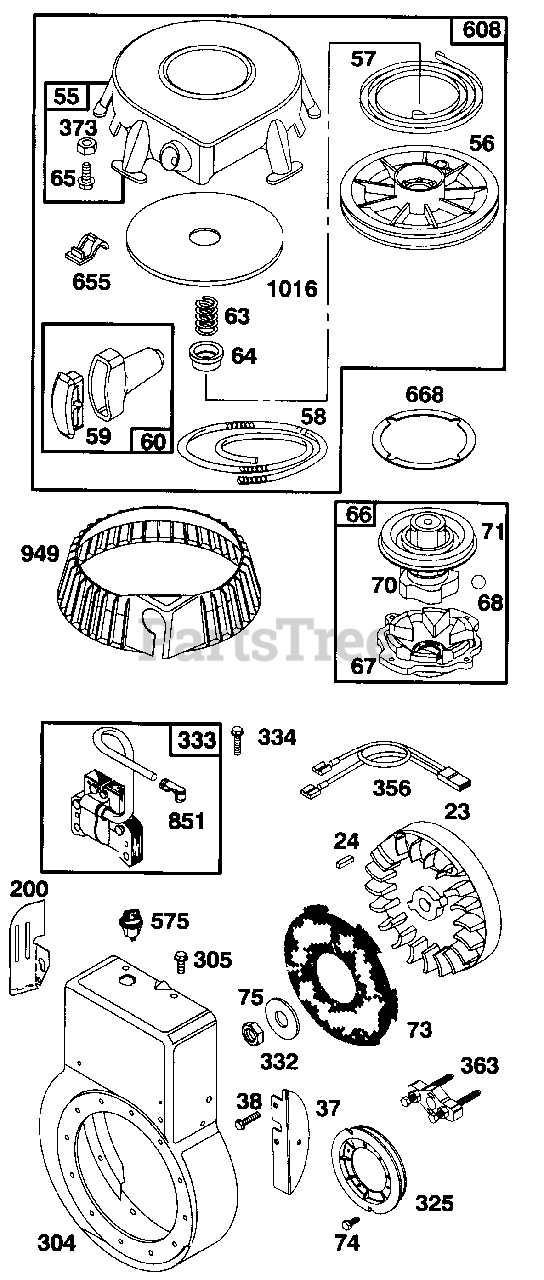

Rewind Starter And Flywheel Assembly Parts Diagram

  • Title

55

Cub Cadet BS-393576

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley-Rewind Starter

$15.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$16.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-66894

Rope-Rewind Starter (Cut to Required Length)
(Superseded to BS-695002)

$8.99

$

In Stock, only 2 left!

0

59

Cub Cadet BS-490653

Insert-Starter Grip

$6.49

$

In Stock, Qty 15

0

60

Cub Cadet BS-490652

Grip-Rewind Starter

$6.49

$

In Stock, Qty 15

0

63

Cub Cadet BS-260414

Spring

$

$

Not available

64

Cub Cadet BS-230543

Adapter-Spring
(Superseded to BS-691920)

$12.99

$

In Stock, only 2 left!

0

65

Cub Cadet BS-94063

Screw-Hex.

$

$

Currently unavailable

66

Cub Cadet BS-399671

Clutch-Starter

$41.99

$

In Stock, Qty 7

0

67

Cub Cadet BS-394897

Housing-Clutch

$38.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Clutch
(Superseded to BS-691945)

$18.99

$

In Stock, only 3 left!

0

71

Cub Cadet BS-394506

Washer-Clutch Retaining

$

$

Not available

373

Cub Cadet BS-92987

Nut-Hex.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

608

Cub Cadet BS-390391

Starter Assy.-Rewind
(Superseded to BS-693900)

$94.99

$

In Stock, only 2 left!

0

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

668

Cub Cadet BS-225124

Spacer

$

$

Not available

949

Cub Cadet BS-280685

Guard-Finger
(Superseded to BS-691904)

$28.99

$

Usually ships in 2-12 days

0

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, only 2 left!

0

23

Cub Cadet BS-298260

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 12

0

37

Cub Cadet BS-222475

Guard-Flywheel

$

$

Not available

38

Cub Cadet BS-93777

Screw-Hex.

$

$

Currently unavailable

73

Cub Cadet BS-225176

Screen-Rotating

$

$

Not available

74

Cub Cadet BS-94062

Screw-Hex.

$

$

Currently unavailable

75

Cub Cadet BS-224061

Washer

$

$

Not available

200

Cub Cadet BS-221760

Guide-Air

$

$

Not available

304

Cub Cadet BS-491596

Housing-Blower

$

$

Not available

305

Cub Cadet BS-94786

Screw-Hex. (Qty. 3) BS-94781 Screw-Hex. (Qty. 2)
(Superseded to BS-692198)

$6.49

$

In Stock, Qty 20+

0

332

Cub Cadet BS-92284

Nut-Flywheel
(Superseded to 712-3056)

$5.49

$

In Stock, Qty 6

0

325

Cub Cadet BS-280457

Pulley-Starter

$

$

Currently unavailable

333

Cub Cadet BS-398811

Armature Group

$66.99

$

In Stock, only 2 left!

0

334

Cub Cadet BS-93381

Screw-Armature Mtg.

$

$

Not available

356

Cub Cadet BS-491391

Wire-Ground

$

$

Currently unavailable

363

Cub Cadet BS-19069

Flywheel Puller

$26.99

$

In Stock, only 2 left!

0

575

Cub Cadet BS-396691

Switch-Starting
(Superseded to BS-692309)

$22.99

$

In Stock, only 2 left!

0

851

Cub Cadet BS-493880

Terminal-Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
