831001 - Ariens 42" Mower Deck (SN: 000101 & Above) Mower 42" S/N 000101-004299 Parts Diagram

42" Mower Deck

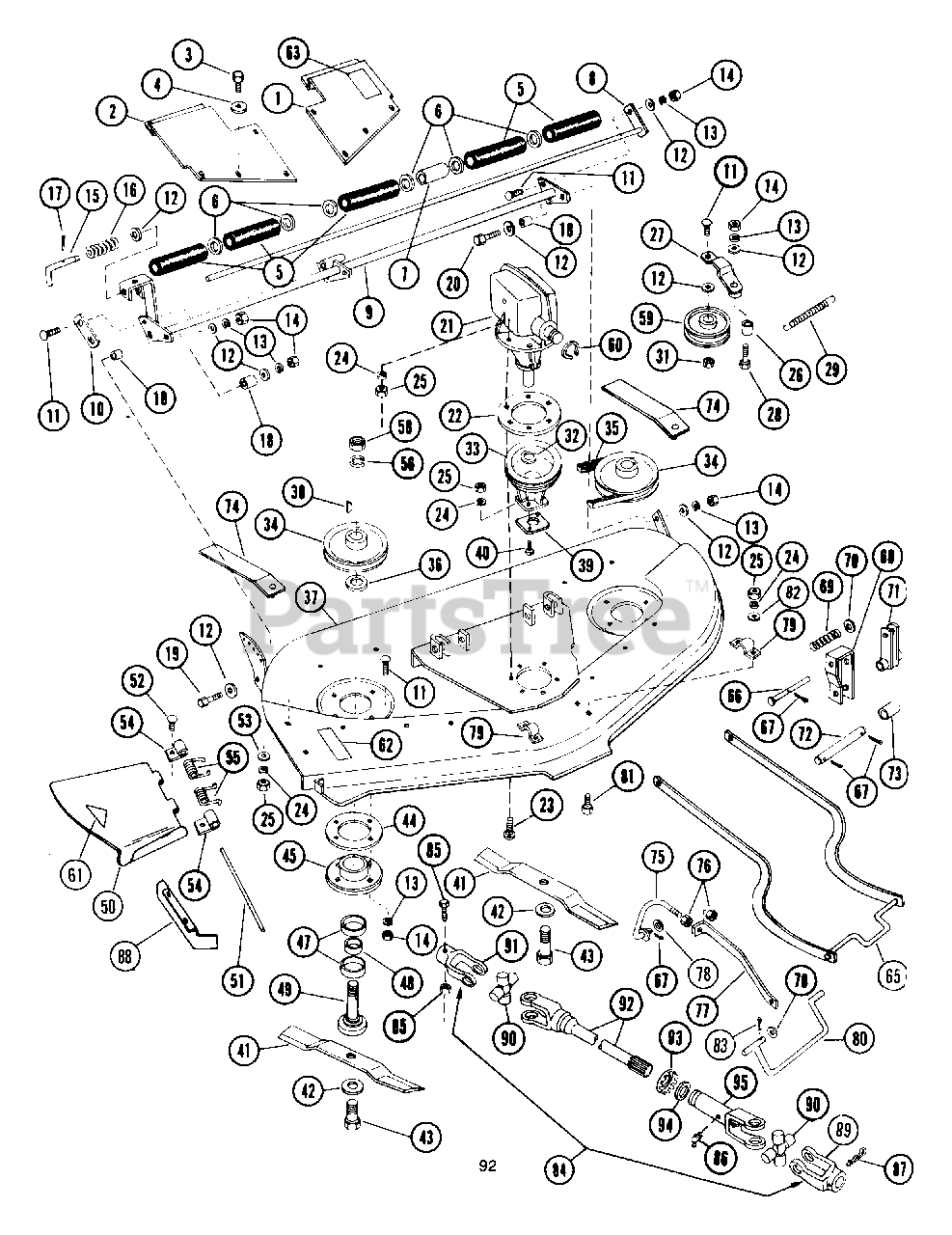

Mower 42" S/N 000101-004299 Parts Diagram

  • Title

1

Ariens 53101900

SHIELD ASSEMBLY

$

$

Not available

2

Ariens 03120500

R.H. BELT SHIELD

$

$

Not available

3

Ariens 07404600

SCR-TAP .250-20X.50 HH F

$2.99

$

In Stock, only 1 left!

0

4

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 14

0

5

Ariens 03114100

ROLLER

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03156500

SPACER .692X.812X2.125

$

$

Not available

8

Ariens 03121600

ROLLER SHAFT

$

$

Not available

9

Ariens 03121500

ROLLER ADJUSTMENT

$

$

Not available

10

Ariens 03115600

LINK

$

$

Not available

11

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

12

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

13

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

14

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

15

Ariens 03121000

PIN

$

$

Not available

16

Ariens 08312900

SG-COMP .063X.63X1.75 WLD10

$

$

Not available

17

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

18

Ariens 02916100

SPACER BUSHING
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

19

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 6

0

20

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 63101500

GEARBOX ASSEMBLY

$

$

Not available

22

Ariens 03121400

SHIM

$15.99

$

Usually ships in 4-12 days

0

23

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 9

0

24

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

25

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

26

Ariens 05509000

BSHG-SLV .375X.625X.1.000

$9.99

$

Usually ships in 4-12 days

0

27

Ariens 03119600

IDLER ARM

$66.99

$

Usually ships in 4-12 days

0

28

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

Usually ships in 4-12 days

0

29

Ariens 08312700

SG-TENS .125X.812X5.25 WLD 15

$34.99

$

Usually ships in 4-12 days

0

31

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06409500

WSHR-FL-STL .781X1.500X.060

$

$

Not available

33

Ariens 03104200

SHEAVE

$

$

Not available

34

Ariens 07306000

PLY-V 4.50 X .75 W/KEY SALEM

$68.99

$

Usually ships in 4-12 days

0

35

Ariens 07208000

V-BELT, HA-WRAPPED

$48.99

$

Usually ships in 4-12 days

0

36

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available

37

Ariens 53102000

DECK ASSEMBLY

$

$

Not available

38

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

39

Ariens 03123400

PLATE

$

$

Not available

40

Ariens 06104800

SCR-MCH .31-18X1.00 SLFL PL

$

$

Not available

41

Ariens 03121300

BLADE

$36.99

$

In Stock, Qty 8

0

42

Ariens 03119100

BELLEVILLE WASHER

$

$

Not available

43

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

$

$

Not available

44

Ariens 02917700

SHIM

$12.99

$

Usually ships in 4-12 days

0

45

Ariens 03104400

FLANGED BEARING HOUSING

$

$

Not available

47

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

48

Ariens 03114400

SPACER .807X1.001X.445

$8.49

$

Usually ships in 4-12 days

0

49

Ariens 02915600

SPINDLE SHAFT
(Superseded to 53110400)

$289.99

$

Usually ships in 4-12 days

0

50

Ariens 03120800

CHUTE EXTENSION
(Superseded to 53108900)

$

$

Not available

51

Ariens 03120700

CHUTE PIVOT ROD
(Superseded to 53108900)

$

$

Not available

52

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

54

Ariens 03120600

CHUTE HINGE
(Superseded to 53108900)

$

$

Not available

55

Ariens 08312800

SG-TORS .080X.28X1.30

$

$

Not available

56

Ariens 06302700

WSHR-LK-INT .750X.050 MED
(Superseded to 06310800)

$1.49

$

Usually ships in 4-12 days

0

58

Ariens 06501600

NUT-JAM .75-16 PL
(Superseded to 06539900)

$3.49

$

In Stock, only 2 left!

0

59

Ariens 07305400

IDLER-FLAT 3.00 X .38 CLK.&CAP

$22.99

$

Usually ships in 4-12 days

0

60

Ariens 05704900

RG-RTNG-EXT .750X.078
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

61

Ariens 07822600

SAFETY LABEL

$

$

Not available

62

Ariens 07826900

DECAL ROTATING PARTS
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

63

Ariens 07827100

DECAL CAUTION
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

65

Ariens 03121700

MOWER HANGER

$

$

Not available

66

Ariens 03112700

SPACER .379X.625X.500
(Superseded to 01529600)

$

$

Not available

67

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

68

Ariens 03122600

SUPPORT CHANNEL
(Superseded to 03122651)

$

$

Not available

69

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

70

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

71

Ariens 03122000

ARM

$

$

Not available

72

Ariens 03122100

PIN-CLEV .498X4.31 YWZC

$11.99

$

Usually ships in 4-12 days

0

73

Ariens 03121900

SPACER .516X.749X.938

$16.99

$

In Stock, only 1 left!

0

74

Ariens 03121800

RAMP
(Superseded to 03038000)

$

$

Not available

75

Ariens 03122200

ADJUSTING ROD

$

$

Not available

76

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

77

Ariens 03122500

ARM

$

$

Not available

78

Ariens 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$3.49

$

In Stock, Qty 15

0

79

Ariens 03122400

STRAP

$12.99

$

Usually ships in 4-12 days

0

80

Ariens 03122300

SUPPORT SHAFT

$

$

Not available

81

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

82

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

83

Ariens 06702700

PIN-COTR .25X1.50 ST PL

$

$

Not available

84

Ariens 63101400

P.T.O. SHAFT ASSEMBLY
(Superseded to 03093300)

$471.99

$

Usually ships in 4-12 days

0

85

Ariens 05915700

BLT-HEX .25-20X2.13 GR5
(Superseded to 53102600)

$13.99

$

Usually ships in 4-12 days

0

86

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

87

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

Usually ships in 4-12 days

0

88

Ariens 03705000

ELEC START KIT-USA TEC #1133-1

$

$

Not available

89

Ariens 03155900

YOKE

$224.99

$

Usually ships in 4-12 days

0

90

Ariens 03155800

JOURNAL CROSS & BEARING ASSEMB

$

$

Not available

91

Ariens 03155700

YOKE

$164.99

$

Usually ships in 4-12 days

0

92

Ariens 03156300

YOKE & SHAFT

$

$

Not available

93

Ariens 03156100

RETAINER CAP

$

$

Not available

94

Ariens 03156200

GREASE SEAL

$

$

Not available

95

Ariens 03156000

YOKE

$

$

Not available
