831003 - Ariens 48" Sno-Thro Attachment (SN: 000101 & Above) Gearbox Assembly 48 ST Parts Diagram

48" Sno-Thro Attachment

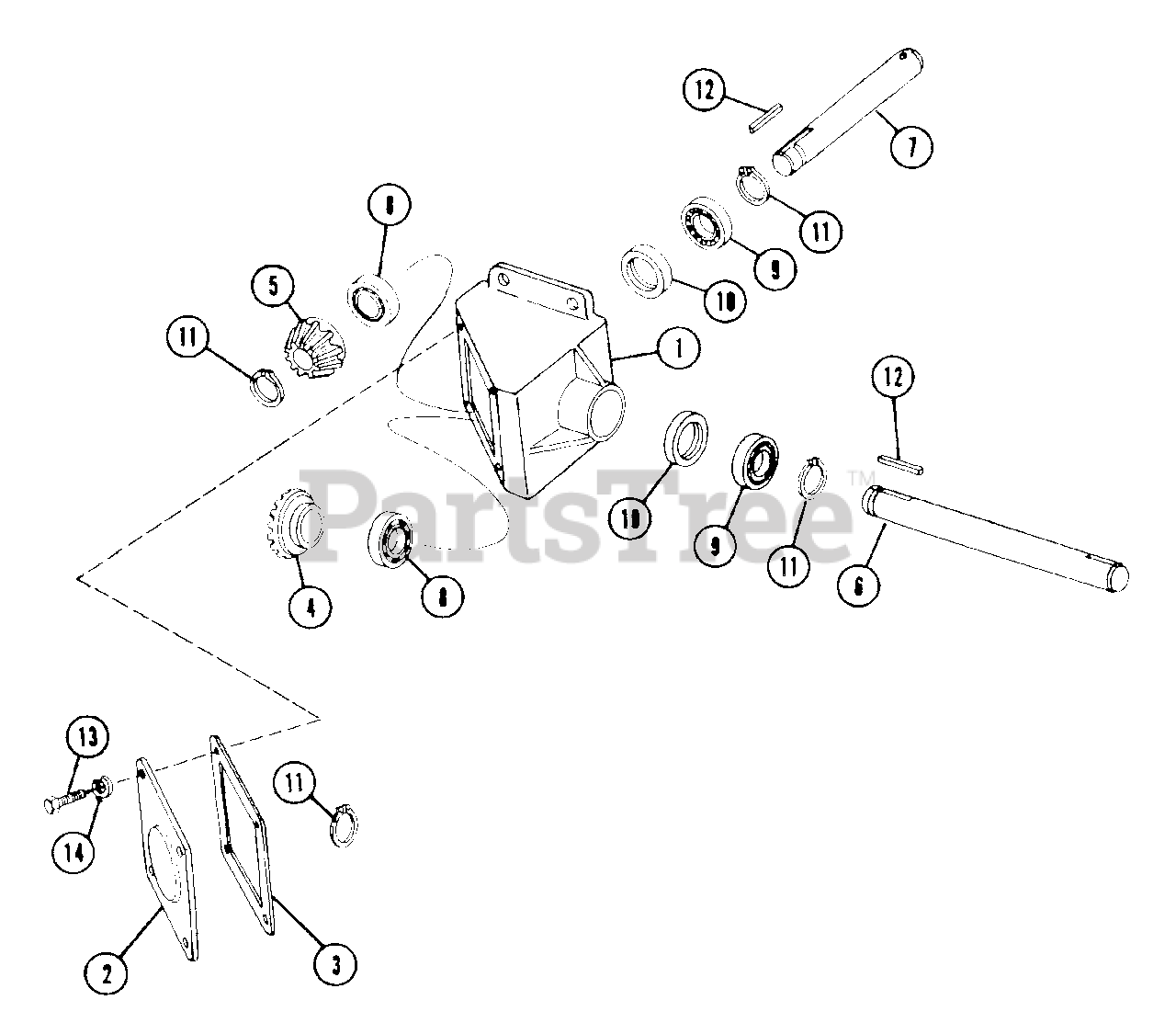

Gearbox Assembly 48 ST Parts Diagram

  • Title

1

Ariens 03146100

GEARBOX HOUSING

$

$

Not available

2

Ariens 03146200

GEAR BOX LID

$

$

Not available

3

Ariens 03146300

GASKET

$

$

Not available

4

Ariens 03146900

BEVEL GEAR OUTPUT
(Superseded to 53117600)

$

$

Not available

5

Ariens 03147100

BEVEL GEAR INPUT
(Superseded to 53117600)

$

$

Not available

6

Ariens 03147000

OUTPUT SHAFT

$

$

Not available

7

Ariens 03147200

INPUT SHAFT

$

$

Not available

8

Ariens 05411800

BRG-BALL .750X1.625X.31

$68.99

$

In Stock, only 1 left!

0

9

Ariens 05411900

BRG-BALL .750X1.625X.50

$

$

Not available

10

Ariens 05608000

SEAL .750X1.624X.312
(Superseded to 05614600)

$13.99

$

In Stock, only 2 left!

0

11

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

12

Ariens 06603100

KEY-SQ .188X.68X.188 DANUSER

$

$

Not available

13

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0
