831004 - Ariens 54" Front Blade (SN: 000101 - 013136) Blade 54" Parts Diagram

54" Front Blade

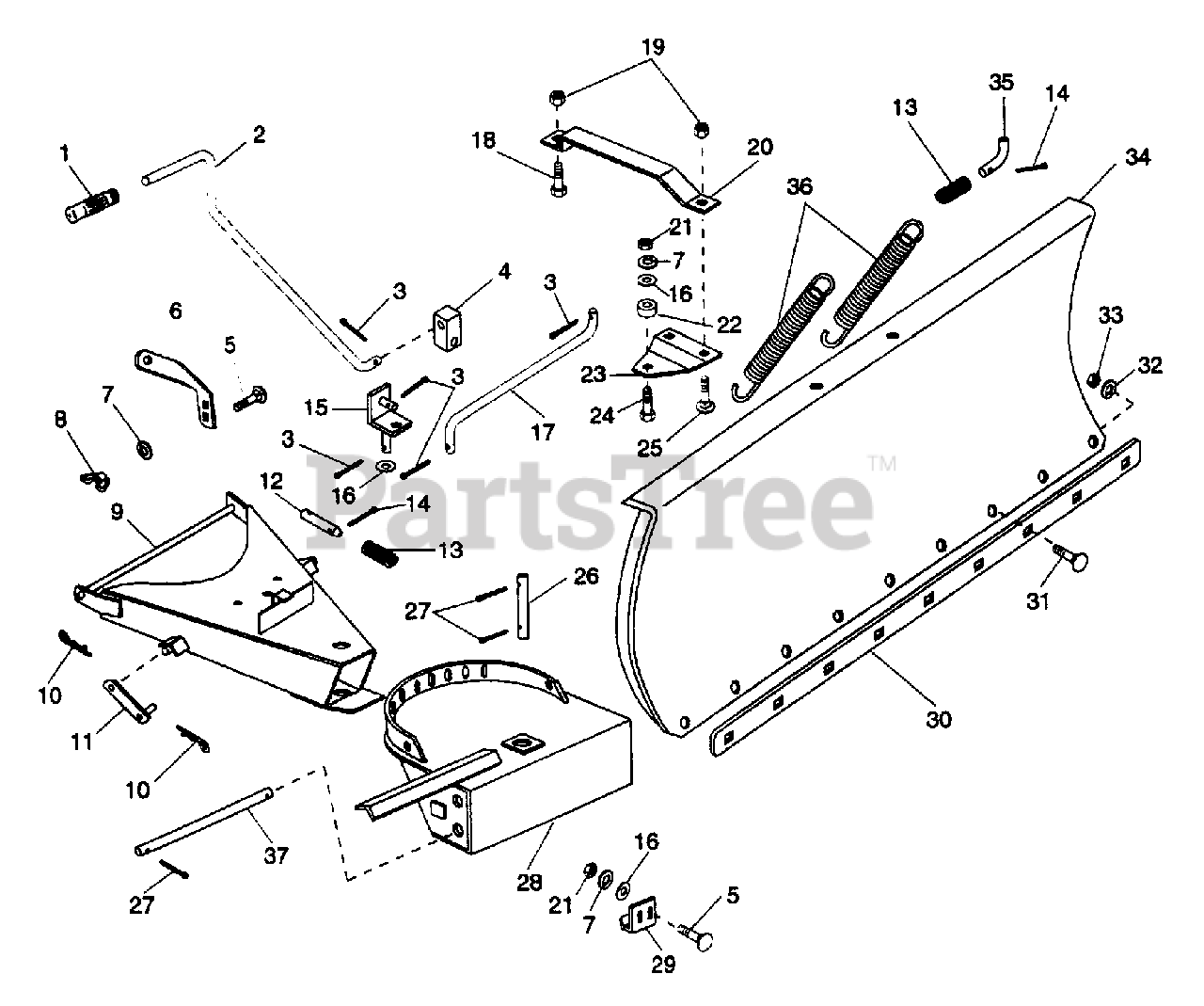

Blade 54" Parts Diagram

  • Title

1

Ariens 07514700

GRIP - 3/8 ID X 2 7/8 - BLACK

$

$

Not available

2

Ariens 03127500

ROD

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

4

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

5

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

6

Ariens 03127400

SUPPORT

$

$

Not available

7

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

8

Ariens 06502300

NUT-WING .375-16 ZCC

$3.99

$

In Stock, only 1 left!

0

9

Ariens 03125000

54 IN FRAME

$

$

Not available

10

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

11

Ariens 03127300

ARM, LIFT LINK
(Superseded to 03127351)

$51.99

$

Usually ships in 4-12 days

0

12

Ariens 03125400

LATCH PIN

$

$

Not available

13

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

14

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

15

Ariens 03126900

ANGLE

$

$

Not available

16

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

17

Ariens 03125300

ROD

$

$

Not available

18

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03126700

STRAP

$

$

Not available

21

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

22

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

23

Ariens 03125200

PIVOT PLATE

$

$

Not available

24

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 9

0

26

Ariens 03127600

PIN

$34.99

$

Usually ships in 4-12 days

0

27

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

Usually ships in 4-12 days

0

28

Ariens 03125100

SUPPORT

$

$

Not available

29

Ariens 03127100

SKID SHOE

$

$

Not available

30

Ariens 03124900

WEAR PLATE
(Superseded to 03124951)

$140.99

$

Usually ships in 4-12 days

0

31

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 13

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

33

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

34

Ariens 03124800

54 IN BLADE

$

$

Not available

35

Ariens 03127700

JACK PIN

$5.99

$

Usually ships in 4-12 days

0

36

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 1 left!

0

37

Ariens 03127200

ROD

$39.99

$

Usually ships in 4-12 days

0
