831007 - Ariens Two Wheel Dump Trailer (SN: 000101 & Above) Dump Trailer - 8 DT - Parts Diagram

Two Wheel Dump Trailer

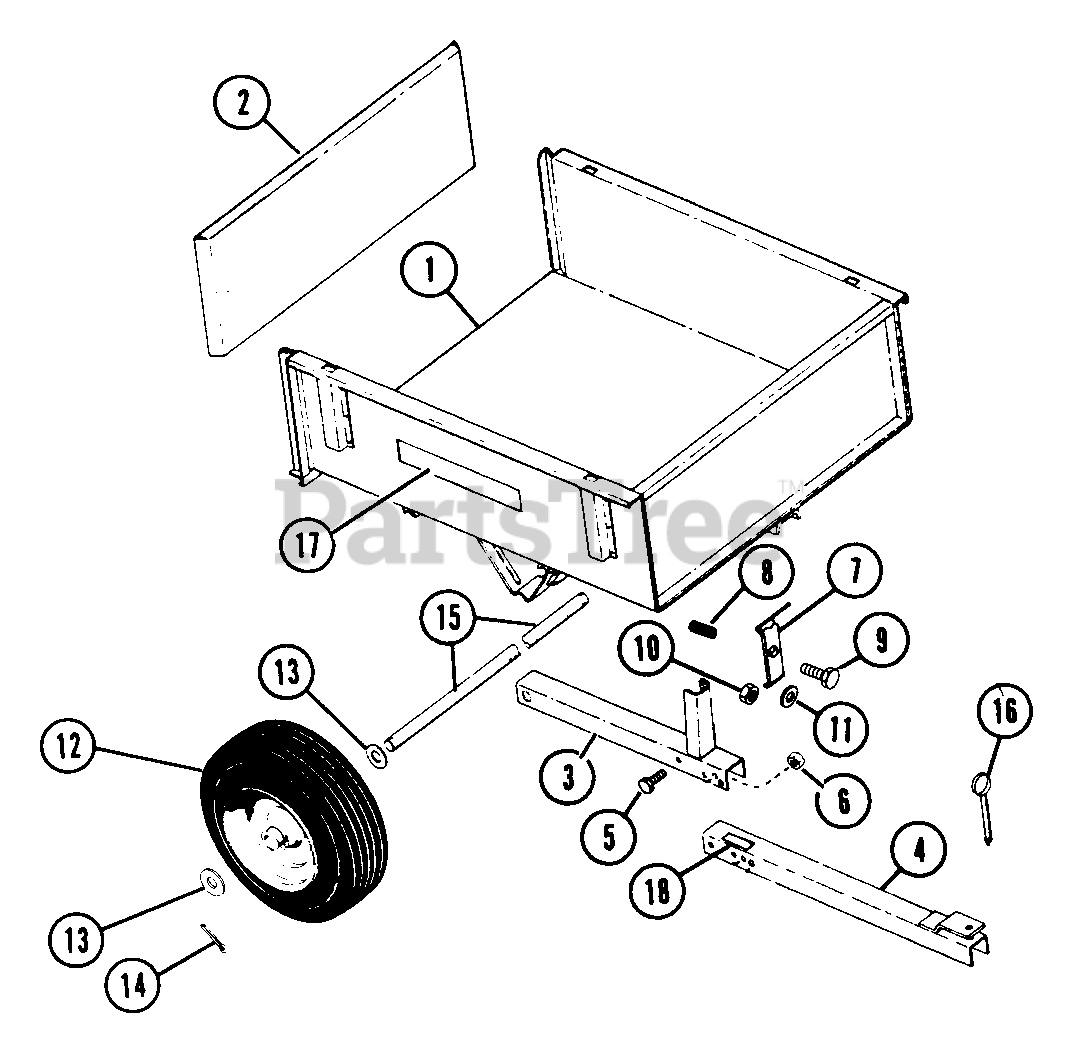

Dump Trailer - 8 DT - Parts Diagram

  • Title

1

Ariens 03134900

BOX

$

$

Not available

2

Ariens 03135000

TAILGATE

$

$

Not available

3

Ariens 03135100

TONGUE

$

$

Not available

4

Ariens 03135200

HITCH

$

$

Not available

5

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 1 left!

0

6

Ariens 06509800

NUT-LK .375-16 PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03135300

LOCK LEVER

$

$

Not available

8

Ariens 08313500

SG-COMP 1.44 FREE LENGTH

$

$

Not available

9

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.49

$

In Stock, only 4 left!

0

10

Ariens 06510100

NUT-LK .312-18 PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

12

Ariens 63104700

TIRES & WHEEL ASSY 4.30 X 8
(Superseded to 07117900)

$

$

Not available

12

Ariens 07110800

WHL

$

$

Not available

12

Ariens 07110900

TIRE

$

$

Not available

12

Ariens 05509400

BSHG (ND)

$

$

Not available

12

Ariens 01035200

SUPPORT SEQMENT

$

$

Not available

13

Ariens 06400600

WSHR-FL-STL 1.062X2.500X.165YZ

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06703100

PIN-COTR .18X1.75 PL

$

$

Not available

15

Ariens 03135400

SHAFT

$

$

Not available

16

Ariens 03141000

LOCKING PIN

$

$

Not available

17

Ariens 07829500

DECAL ARIENS
(Superseded to 07875900)

$

$

Not available

18

Ariens 08116200

SERIAL NUMBER LABEL

$

$

Not available
