831009 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro 48" Parts Diagram

48" Two Stage Sno-Thro Attachment

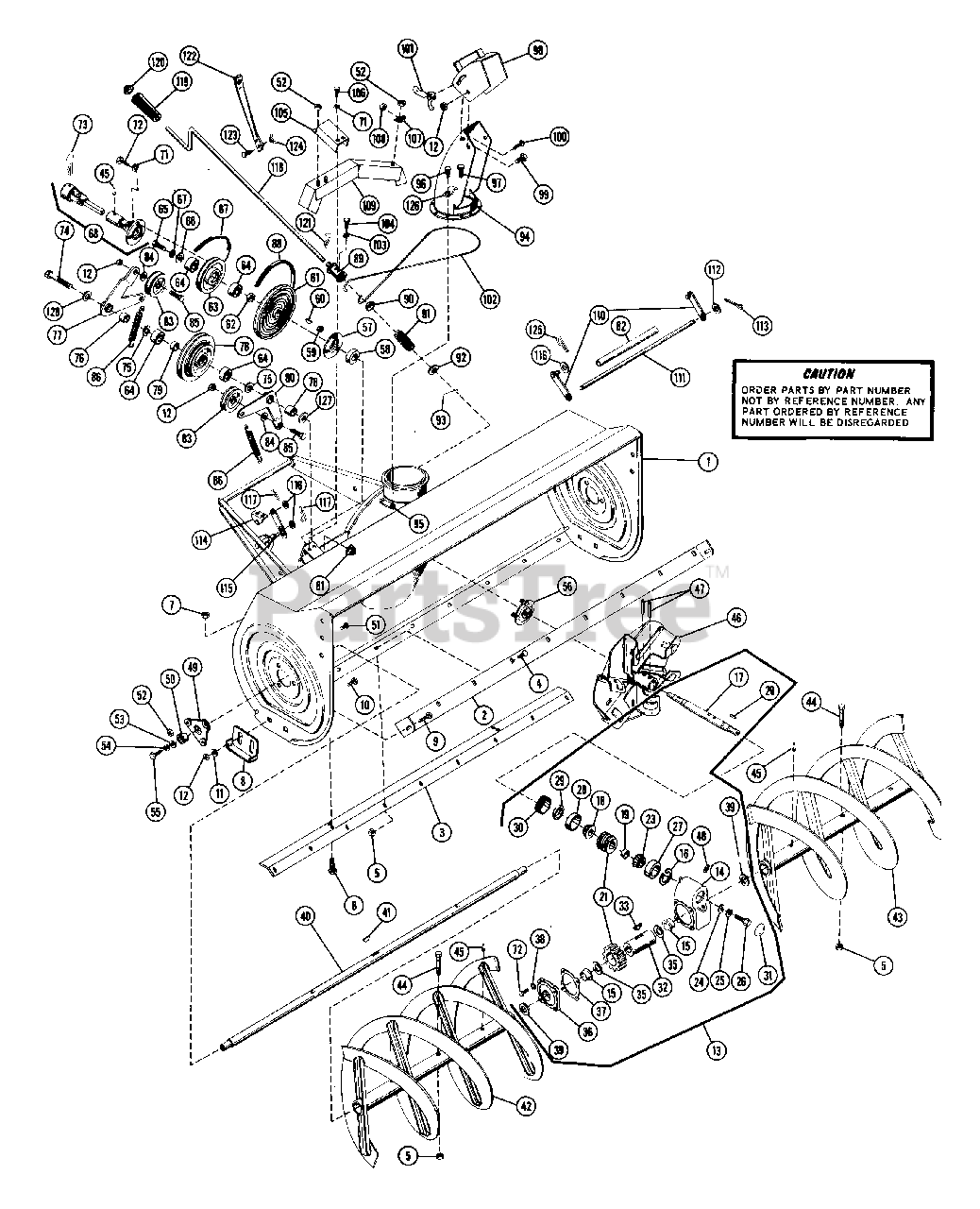

Sno-Thro 48" Parts Diagram

  • Title

1

Ariens 53107700

BLOWER HOUSING ASSEMBLY

$

$

Not available

2

Ariens 03185700

SCRAPER BLADE
(Superseded to 03195443)

$83.99

$

In Stock, only 1 left!

0

3

Ariens 03185800

SCRAPER BLADE BRACE
(Superseded to 03185843)

$219.99

$

Usually ships in 4-12 days

0

4

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 8

0

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

7

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 02922500

SKID SHOE
(Superseded to 03075559)

$37.99

$

In Stock, Qty 6

0

9

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 53108200

GEAR CASE - CAST IRON

$1194.99

$

Usually ships in 4-12 days

0

14

Ariens 03187900

GEAR CASE - CAST IRON

$362.99

$

In Stock, only 1 left!

0

15

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 4 left!

0

16

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$9.49

$

In Stock, only 1 left!

0

17

Ariens 03188000

WORM SHAFT

$219.99

$

Usually ships in 4-12 days

0

18

Ariens 05406900

BRG-CONE 1.0X.58

$18.99

$

In Stock, Qty 20+

0

19

Ariens 03188100

BEARING SPACER 1.032X1.25X1.78

$26.99

$

In Stock, only 1 left!

0

20

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

21

Ariens 53107800

WORM & GEAR ASSEMBLY
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

22

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

23

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

24

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

26

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 10

0

27

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

28

Ariens 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 9

0

29

Ariens 05604600

SEAL 1.125X1.375X.125

$10.99

$

In Stock, only 1 left!

0

30

Ariens 03188200

ADJUSTMENT PLUG

$58.99

$

Usually ships in 4-12 days

0

31

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

32

Ariens 03188300

GEAR CASE SHAFT
(Superseded to 53127700)

$194.99

$

Usually ships in 4-12 days

0

33

Ariens 06603500

KEY-FTHR .25X.875X.312

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

36

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

37

Ariens 00200800

GASKET

$3.99

$

In Stock, only 3 left!

0

38

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, only 3 left!

0

40

Ariens 03188500

RAKE SHAFT

$294.99

$

Usually ships in 4-12 days

0

41

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

42

Ariens 53108000

RAKE, RIGHT-48(1.12ID X 15.75)
(Superseded to 53127900)

$861.99

$

In Stock, only 1 left!

0

43

Ariens 53107900

RAKE, LEFT-48"(1.12ID X 15.75)
(Superseded to 53128000)

$

$

Not available

44

Ariens 53108100

SHEAR BOLT & NUT ASSEMBLY
(Superseded to 51001500)

$4.99

$

In Stock, only 3 left!

0

45

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

46

Ariens 03188900

FAN

$672.99

$

Usually ships in 4-12 days

0

47

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 8

0

48

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

49

Ariens 01018400

BEARING SUPPORT

$

$

Not available

50

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

51

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

52

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

53

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

54

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

55

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

56

Ariens 03186000

BEARING FLANGE

$45.99

$

Usually ships in 4-12 days

0

57

Ariens 03185900

BEARING FLANGE

$22.99

$

In Stock, only 4 left!

0

58

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

59

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

61

Ariens 07310200

PLY-V 10.00 X .88 W/KEY SALEM

$79.99

$

Usually ships in 4-12 days

0

62

Ariens 03186100

SPACER .906X1.125X.453

$27.99

$

Usually ships in 4-12 days

0

63

Ariens 03186200

SHEAVE

$140.99

$

Usually ships in 4-12 days

0

64

Ariens 05407300

BRG-BALL .751X1.78X.61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 20+

0

65

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 6

0

67

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 16

0

68

Ariens 63112800

UNIVERSAL SHAFT ASSEMBLY
(Superseded to 03099900)

$536.99

$

Usually ships in 4-12 days

0

71

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

72

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 10

0

73

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

Usually ships in 4-12 days

0

74

Ariens 05918200

BLT-HEX .75-10X5.00 GR2
(Superseded to 05961500)

$

$

Not available

75

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, Qty 8

0

76

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

77

Ariens 03186500

IDLER ARM
(Superseded to 03186543)

$11.99

$

Usually ships in 4-12 days

0

78

Ariens 03186600

SHEAVE

$

$

Not available

79

Ariens 03186700

SPACER .781X1.000X.547

$20.99

$

Usually ships in 4-12 days

0

80

Ariens 03186800

IDLER ARM
(Superseded to 03186843)

$9.49

$

Usually ships in 4-12 days

0

81

Ariens 06512500

NUT-LK-FLG .75-10 GR F PL
(Superseded to 06535400)

$5.99

$

Usually ships in 4-12 days

0

82

Ariens 03189600

TUBE .725 X .875 X 14.00

$

$

Not available

83

Ariens 07305400

IDLER-FLAT 3.00 X .38 CLK.&CAP

$22.99

$

Usually ships in 4-12 days

0

84

Ariens 06413100

WSHR-FL-STL .406X.875X.135

$

$

Not available

85

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 10

0

86

Ariens 08312600

SG-TENS 6.0 FREE LENGTH
(Superseded to 08325100)

$45.99

$

Usually ships in 4-12 days

0

87

Ariens 07209500

V-BELT, HA-RAW EDGE

$34.99

$

Usually ships in 4-12 days

0

88

Ariens 07209600

V-BELT, 4L-RAW EDGE

$31.99

$

In Stock, only 1 left!

0

89

Ariens 03186900

SPOOL

$

$

Not available

90

Ariens 03189100

SPHERICAL WASHER

$

$

Not available

91

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

92

Ariens 06413900

WSHR-FL-STL .641X1.250X.188

$

$

Not available

93

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 10

0

94

Ariens 03187000

DISCHARGE CHUTE
(Superseded to 03193000)

$

$

Not available

95

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

96

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

97

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

98

Ariens 51001200

SERVICE DEFLECTOR ASSM
(Superseded to 52406100)

$149.99

$

Usually ships in 4-12 days

0

99

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

100

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

101

Ariens 01019300

WING NUT

$

$

Not available

102

Ariens 03187100

CABLE

$142.99

$

Usually ships in 4-12 days

0

103

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 1 left!

0

104

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

105

Ariens 03187200

COVER

$

$

Not available

106

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

107

Ariens 03189200

CLIP

$5.99

$

Usually ships in 4-12 days

0

108

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

109

Ariens 03187300

BELT GUARD
(Superseded to 03187343)

$

$

Not available

110

Ariens 03187400

LIFT STRAP

$

$

Not available

111

Ariens 03187500

SHAFT

$

$

Not available

112

Ariens 06414000

WSHR-FL-STL .688X1.75X.134PL
(Superseded to 06442900)

$1.49

$

In Stock, only 2 left!

0

113

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 10

0

114

Ariens 03187600

LIMITING POST
(Superseded to 03082943)

$

$

Not available

115

Ariens 03187700

LIMITING ARM
(Superseded to 03187743)

$19.99

$

Usually ships in 4-12 days

0

116

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

117

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

118

Ariens 03187800

CHUTE CRANK
(Superseded to 03081900)

$154.99

$

Usually ships in 4-12 days

0

119

Ariens 07503900

GRIP

$

$

Not available

120

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 7

0

121

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

122

Ariens 02925700

SUPPORT
(Superseded to 02923700)

$

$

Not available

123

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

124

Ariens 06502300

NUT-WING .375-16 ZCC

$3.99

$

Usually ships in 4-12 days

0

125

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

126

Ariens 06900300

CABLE CLAMP

$

$

Not available

127

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

128

Ariens 06411900

WSHR-FL-STL .811X1.25X.025
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0
