831015 - Gravely 48" Flex-N-Float Deck for GT 600 Mower (SN: 000101 & Above) 48" Mower Hangers & Rollers Parts Diagram

48" Flex-N-Float Deck for GT 600 Mower

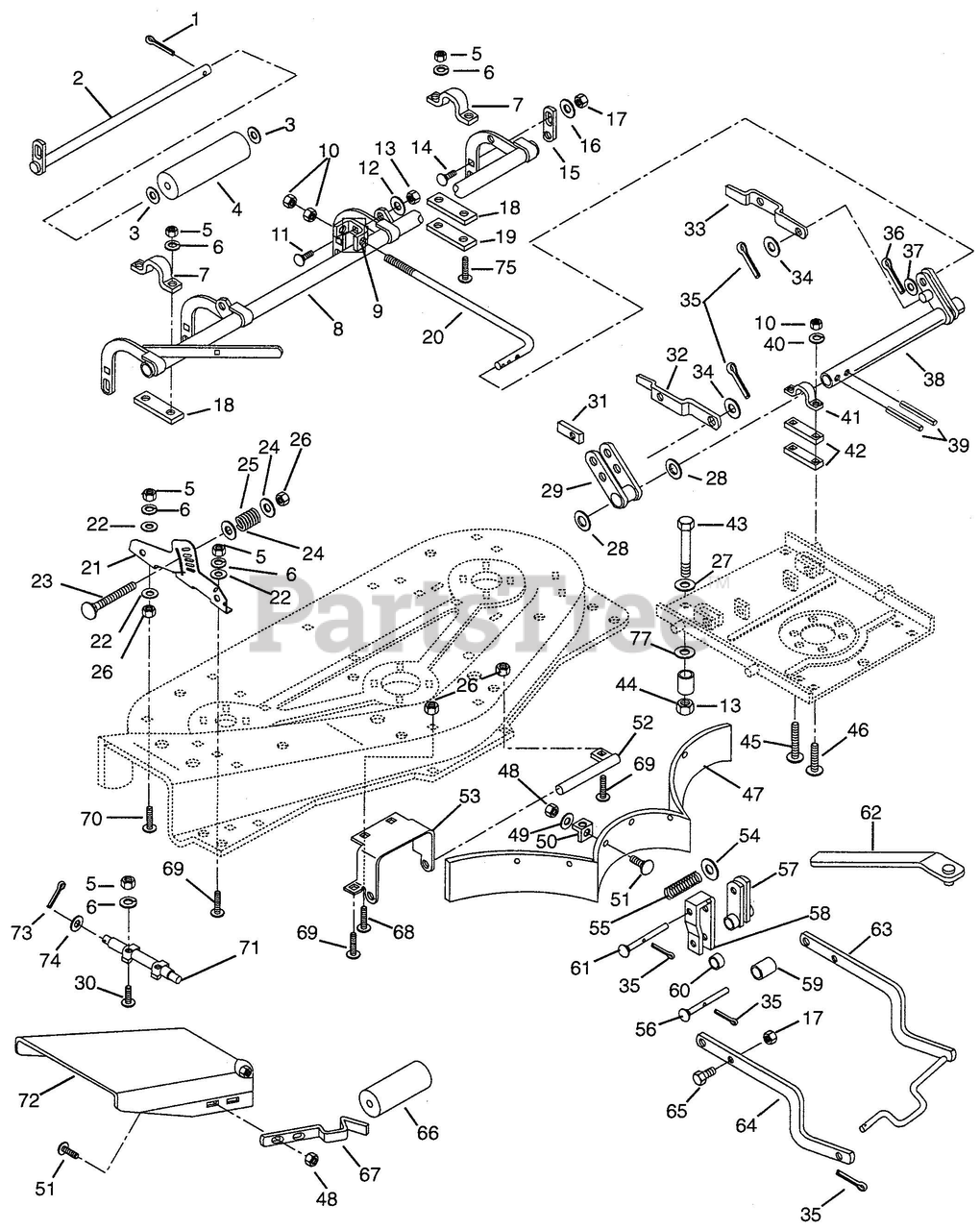

48" Mower Hangers & Rollers Parts Diagram

  • Title

1

Gravely 06712000

PIN-COTTER .18 X 1.0

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 03435500

ROLLER SHAFT

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 06442800

WASHER-FLAT-STEEL .656 X 1.31 X .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 03404200

ROLLER

$55.99

$

In Stock, only 2 left!

0

5

Gravely 06429200

NUT-HEX .31-18
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

6

Gravely 06307400

WASHER-LOCKING .312
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

7

03402351

CLAMP

$

$

Not available

8

Gravely 03401051

ROLLER FRAME

$

$

Not available

9

Gravely 03400451

YOKE

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 06537300

NUT .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06224700

BOLT-ROUND HEAD SQUARE NECK .50-13 X 1.25
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06436600

WASHER-FLAT-STEEL .505 X .880 X .062
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06536300

NUT-LOCKING-CENTER .500-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 06223600

BOLT-ROUND HEAD SQUARE NECK .38-16 X 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 03115651

LINK

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 06435900

WASHER-FLAT-STEEL .438 X 1.0 X .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06529600

NUT-LOCKING .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

03434151

ADJUSTMENT PLATE

$

$

Not available

19

03402451

ADJUSTMENT PLATE

$

$

Not available

20

Gravely 03403700

ADJUSTMENT ROD

$117.99

$

Usually ships in 4-12 days

0

21

Gravely 03435659

QUADRANT

$

$

Not available

22

Gravely 06436700

WASHER-FLAT-STEEL .323 X .625 X .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

23

Gravely 06220200

BOLT-ROUND HEAD SQUARE NECK .31-18 X 1.75
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

24

Gravely 06435700

WASHER-FLAT-STEEL .38 X .875 X .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

25

Gravely 08313100

SPRING-COMPRESSION .063 X .53 X 1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 10

0

26

Gravely 06529800

NUT-LOCKING .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06441900

WASHER-FLAT-STEEL .531 X 1.06 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06416700

WASHER-FLAT-STEEL .765 X 1.250 X .062

$

$

Not available

29

03078751

FRONT HANGER LINK

$

$

Not available

30

Gravely 05913500

BOLT-HEX .31-18 X .75 GRADE 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

31

Gravely 03035551

WEAR PLATE

$45.99

$

Usually ships in 4-12 days

0

32

Gravely 03035751

LEVELING LEVER RH

$

$

Not available

33

Gravely 03035651

LEVELING LEVER LH

$

$

Not available

34

Gravely 06436400

WASHER-FLAT-STEEL .511 X 1.44 X .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

35

Gravely 06707100

PIN-COTTER .12 X 1.0

$0.99

$

In Stock, Qty 12

0

36

Gravely 06707300

PIN-COTTER .18 X 2.0

$0.99

$

In Stock, Qty 9

0

37

Gravely 06441000

WASHER-FLAT-STEEL .50 X 1.25 X .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 16

0

38

06033251

FRONT HANGER

$

$

Not available

39

Gravely 05800700

PIN-ROLL .250 X 1.25

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06306600

WASHER-LOCKING .500 X .151
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

41

Gravely 03033400

CLAMP

$26.99

$

Usually ships in 4-12 days

0

42

Gravely 03033300

PLATE

$

$

Not available

43

Gravely 05965500

BOLT-HEX .50-13 X 2.75 GRADE 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

44

Gravely 03433800

SPACER PIVOT

$14.99

$

Usually ships in 4-12 days

0

45

Gravely 06224800

BOLT-ROUND HEAD SQUARE NECK .50-13 X 1.75
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 06223100

BOLT-ROUND HEAD SQUARE NECK .50-13 X 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

47

Gravely 03434259

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

48

Gravely 06529700

NUT-LOCKING-CENTER .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 06437300

WASHER-FLAT-STEEL .281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

50

Gravely 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

51

Gravely 06214300

BOLT-ROUND HEAD SQUARE NECK .25-20 X .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

53

Gravely 03435151

BRACKET-ROLLER

$81.99

$

Usually ships in 4-12 days

0

54

Gravely 06441900

WASHER-FLAT-STEEL .531 X 1.06 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

55

Gravely 08313000

SPRING-COMPRESSION .62 X .68 X 1.75

$17.99

$

Usually ships in 4-12 days

0

56

Gravely 03122100

CLEVIS PIN

$11.99

$

Usually ships in 4-12 days

0

57

03124751

ARM

$

$

Not available

58

Gravely 03122651

SUPPORT CHANNEL

$

$

Not available

59

Gravely 03121900

SPACER

$16.99

$

In Stock, only 1 left!

0

60

Gravely 03035100

SPACER

$9.49

$

In Stock, Qty 7

0

61

Gravely 03122700

CLEVIS PIN

$

$

Not available

62

Gravely 03038000

RAMP

$

$

Not available

63

Gravely 03035351

MOWER HANGER

$

$

Not available

64

Gravely 03035251

HANGER ARM
(Superseded to 03035200)

$

$

Not available

65

Gravely 05948700

BOLT-HEX .38-16 X 1.00 GRADE 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

66

Gravely 03114100

ROLLER

$22.99

$

In Stock, only 2 left!

0

67

Gravely 00318559

FLAT SPRING
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

68

Gravely 06212200

BOLT-ROUND HEAD SQUARE NECK .312-18 X .62
(Superseded to 06200333)

Note: (QTY 2)

$1.49

$

In Stock, Qty 20+

0

69

Gravely 06215700

BOLT-ROUND HEAD SQUARE NECK GRADE 5 .31-18 X .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

70

Gravely 06212300

BOLT-ROUND HEAD SQUARE NECK .31-18 X 2.75

$2.99

$

In Stock, Qty 8

0

71

Gravely 03405800

PIN-HINGE

$46.99

$

Usually ships in 4-12 days

0

72

Gravely 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

73

Gravely 06706900

PIN-COTTER .09 X .75

$0.99

$

In Stock, Qty 5

0

74

Gravely 06436200

WASHER-FLAT-STEEL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

75

Gravely 06212100

BOLT-ROUND HEAD SQUARE NECK .31-18 X 1.50 GRADE 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 10

0

76

Gravely 06525800

NUT-LOCKING-HEX .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0

77

Gravely 06439200

WASHER-FLAT-STEEL .505 X 1.00 X .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0
