831016 - Ariens Five-In-One Implement Package (SN: 000101 & Above) Frame Assembly "A" Parts Diagram

Five-In-One Implement Package

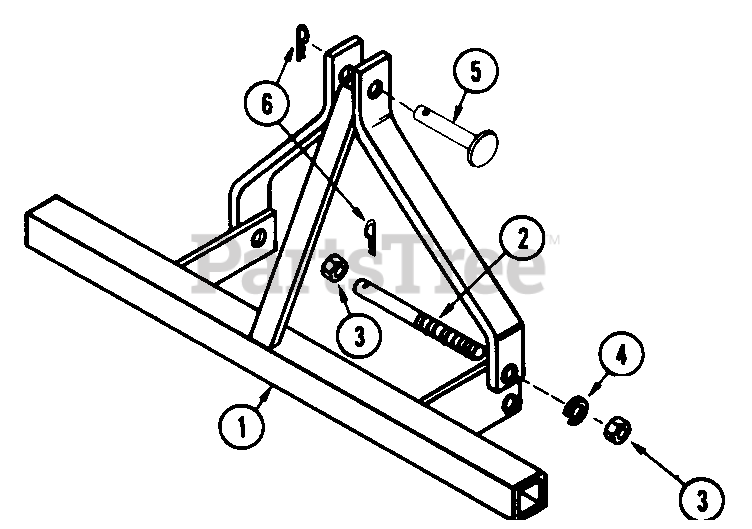

Frame Assembly "A" Parts Diagram

  • Title

1

Ariens 03010000

TOOL BAR

$

$

Not available

2

Ariens 03010500

HITCH PIN

$

$

Not available

3

Ariens 06500300

NUT-JAM .625-18

$

$

Not available

4

Ariens 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 03014300

PIN

$

$

Not available

6

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0
