831019 - Ariens Vac Bagger Kit (SN: 001100 - 003900) Lower Vac Tube And Boot Parts Diagram

Vac Bagger Kit

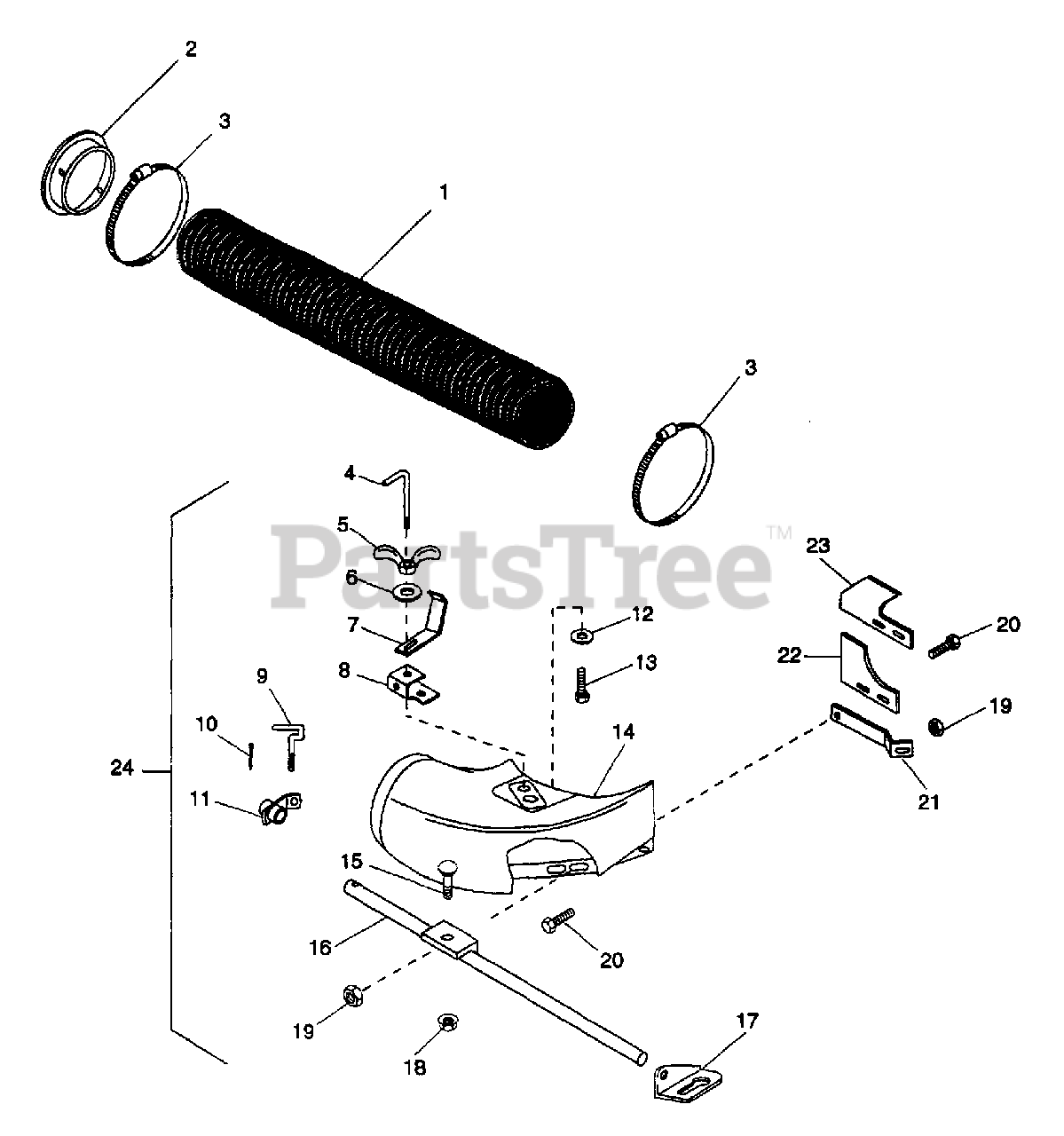

Lower Vac Tube And Boot Parts Diagram

  • Title
1

Ariens 03026800

HOSE 7X38
(Superseded to 04222800)

$93.86

$

In Stock, only 3 left!

0

2

Ariens 03053700

HOSE ADAPTER

$11.12

$

Usually ships in 4-12 days

0

3

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$16.71

$

Usually ships in 4-12 days

0

4

Ariens 03073400

CLAMP SCREW

$25.04

$

Usually ships in 4-12 days

0

5

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$9.89

$

In Stock, Qty 5

0

6

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

7

Ariens 03073600

DEFLECTOR STOP

$

$

Not available

8

Ariens 03024900

COLLECTOR BOOT CLAMP

$

$

Not available

9

Ariens 03073300

CLAMP SCREW

$

$

Not available

10

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

11

Ariens 03073200

BOOT CLAMP

$

$

Not available

12

Ariens 06403400

WSHR-FL-STL .625X1.250X.093

$

$

Not available

13

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

$1.68

$

Usually ships in 4-12 days

0

14

$

$

Not available

15

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.96

$

In Stock, Qty 20+

0

16

Ariens 03073100

BOOT BRACE

$64.90

$

Usually ships in 4-12 days

0

17

Ariens 03073000

BOOT CLIP

$29.68

$

Usually ships in 4-12 days

0

18

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

19

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$

$

Not available

20

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.79

$

In Stock, only 1 left!

0

21

Ariens 03038200

BRACKET - STOP

$17.33

$

Usually ships in 4-12 days

0

22

$19.51

$

Usually ships in 4-12 days

0

23

Ariens 03073500

VAC PLATE

$24.60

$

Usually ships in 4-12 days

0

24

Ariens 53119300

48 INCH BOOT ATTACHMENT RETROF

Note: Boot not part of kit.

$240.59

$

Usually ships in 4-12 days

0
