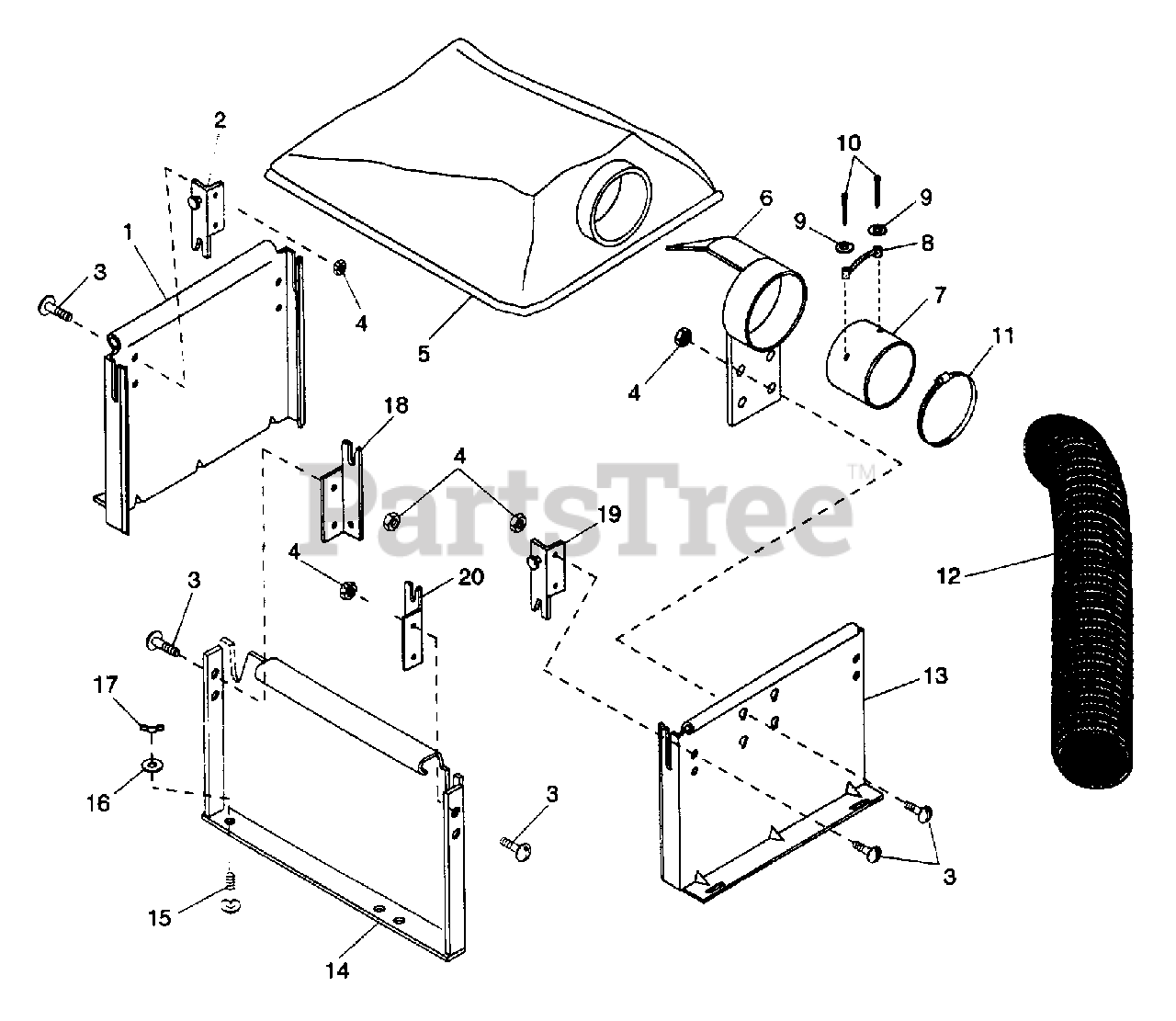

831019 - Ariens Vac Bagger Kit (SN: 001100 - 003900) Trailer Vac Parts Diagram

Vac Bagger Kit

Trailer Vac Parts Diagram

  • Title

1

Ariens 03024000

REAR GATE

$

$

Not available

2

Ariens 03024200

RIGHT GATE PIN

$

$

Not available

3

Ariens 06101500

SCR-MCH .25-20X.50 SLRH

$

$

Not available

4

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03024300

CART COVER

$

$

Not available

6

Ariens 03024400

HOSE CONNECTION

$

$

Not available

7

Ariens 03024500

INNER TUBE

$

$

Not available

8

Ariens 07507500

BATTERY STRAP

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06409200

WSHR-FL-STL .188X.438X.049 PL

$

$

Not available

10

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

11

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$18.99

$

Usually ships in 4-12 days

0

12

Ariens 03024600

HOSE 6 X 72

$156.99

$

Usually ships in 4-12 days

0

13

Ariens 53113700

CART FRONT W/ DECAL

$

$

Not available

14

Ariens 03023900

CART SIDE

$

$

Not available

15

Ariens 06201200

BLT-RDHDSQNK .25-20X.75
(Superseded to 06219900)

$1.49

$

In Stock, Qty 8

0

16

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06506400

NUT-WING .250-20
(Superseded to 06537500)

$5.49

$

In Stock, only 2 left!

0

18

Ariens 03028200

REINFORCEMENT R.H.

$

$

Not available

19

Ariens 03024100

LEFT GATE PIN

$

$

Not available

20

Ariens 03028100

REINFORCEMENT L.H.

$

$

Not available
