831023 - Gravely 60" Flex-N-Float Deck for GT 600 Mower (SN: 000101 & Above) 60" Mower Parts Diagram

60" Flex-N-Float Deck for GT 600 Mower

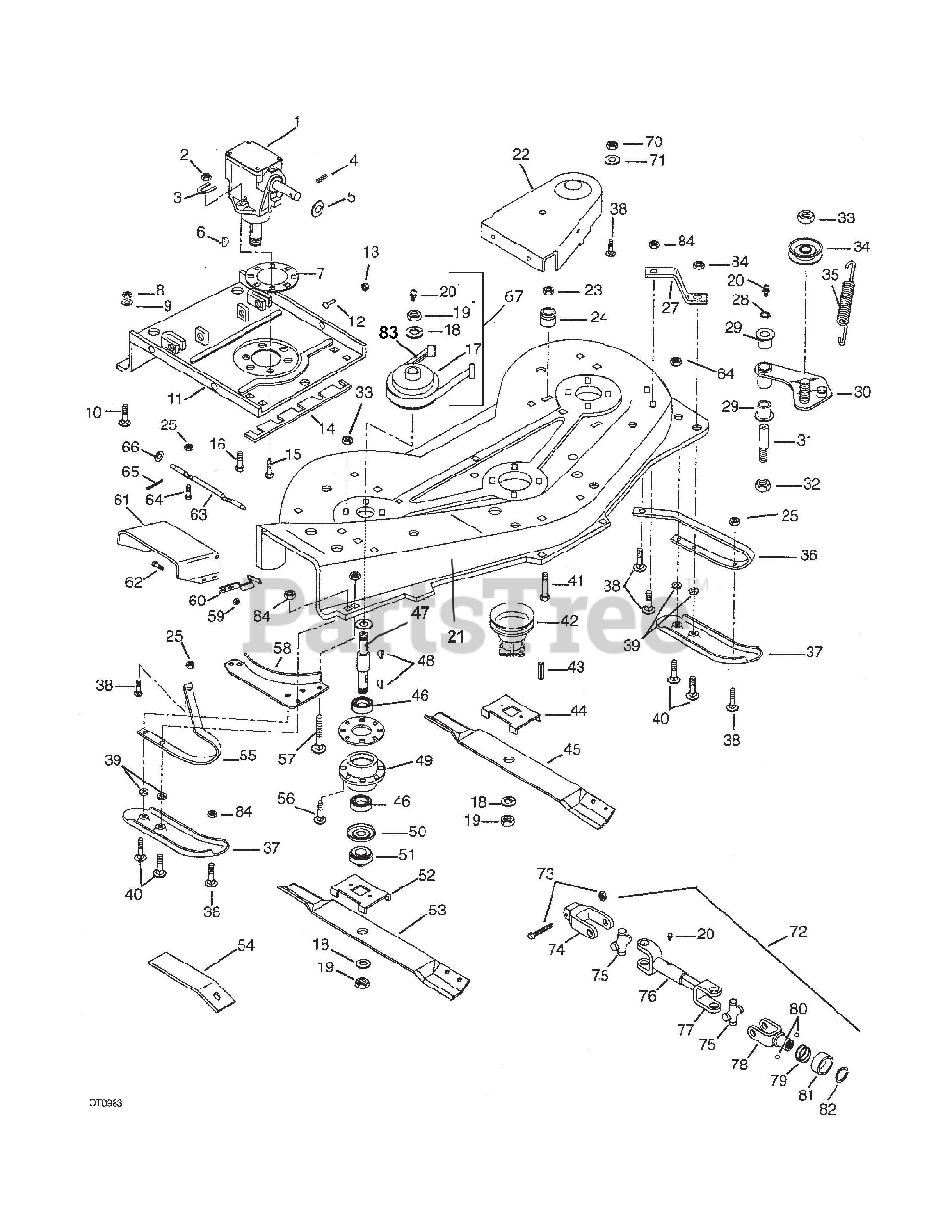

60" Mower Parts Diagram

  • Title

1

Gravely 53106300

MOWER GEARCASE 48" KIT

$

$

Not available

2

Gravely 06529800

NUT-LOCKING-TIP .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03189900

SHIM

$13.99

$

Usually ships in 4-12 days

0

4

Gravely 05800900

PIN-ROLL .125 X 1.00

$0.99

$

In Stock, Qty 18

0

5

Gravely 06444100

WASHER-FLAT-STEEL .754 X 1.000 X .032

$2.99

$

In Stock, Qty 17

0

6

Gravely 06601200

KEY-WOODRUF .25 X .75 X 5

$2.99

$

In Stock, only 4 left!

0

7

Gravely 03121400

SHIM

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 06537300

NUT .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06306600

WASHER-LOCKING .500 X .125
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06220900

BOLT-ROUND HEAD SQUARE NECK .500-13 X 1.25 GRADE 5
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

11

Gravely 03047159

MOUNTING PLATE

$

$

Not available

12

Gravely 06805000

RIVET-STEEL RIGHT HAND .312 X .75

$

$

Not available

13

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

14

Gravely 03038100

SHIM

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 07413900

SCREW-TAPPING .312-18 X 1.0
(Superseded to 07400202)

$3.99

$

In Stock, Qty 5

0

16

Gravely 05947500

BOLT-HEX .31-18 X 1.25 GRADE 5
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 03032900

SPINDLE SHEAVE

$398.99

$

In Stock, only 1 left!

0

18

Gravely 06310300

WASHER-LOCKING .750 X .188

$1.49

$

In Stock, Qty 10

0

19

Gravely 06537700

NUT-JAM .75-10

$2.49

$

In Stock, Qty 20+

0

20

Gravely 07012600

SPIN DRIVE ZERK FITTING
(Superseded to 07001806)

$

$

Not available

21

Gravely 53114700

60 INCH MOWER DECK

$448.99

$

Usually ships in 4-12 days

0

22

Gravely 03096159

BELT COVER LH 60"

$

$

Not available

22

Gravely 03096059

BELT COVER RH 60"

$

$

Not available

23

Gravely 06529600

NUT-LOCKING .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 03032259

SPRING ANCHOR

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 06543100

NUT-HEX .312-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03402000

PLATE

$

$

Not available

27

Gravely 03034859

BRACE

$21.99

$

Usually ships in 4-12 days

0

28

Gravely 05709200

RING-RETAINING-EXTENSION .625 X .050

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 05502600

BUSHING-FLANGE .625 X .750 X .500 X .875
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 03033000

IDLER ARM

$

$

Not available

31

Gravely 03032500

IDLER STUD

$75.99

$

Usually ships in 4-12 days

0

32

Gravely 06536300

NUT-LOCKING-CENTER .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

33

Gravely 06542000

NUT-LOCK-JAM-CENTER .375-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

35

Gravely 08316800

SPRING-TENSION .121 X 1.06 X 6.5

$34.99

$

In Stock, only 1 left!

0

36

Gravely 03034659

SKID BAR LH

$11.99

$

Usually ships in 4-12 days

0

37

Gravely 03034559

SKID BAR

$38.99

$

In Stock, only 1 left!

0

38

Gravely 06215700

BOLT-ROUND HEAD SQUARE NECK .31-18 X .75 GRADE 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 11

0

39

Gravely 02513500

SPACER

$

$

Not available

40

Gravely 06212100

BOLT-ROUND HEAD SQUARE NECK .31-18 X 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

41

Gravely 05958500

BOLT-HEX .38-16 X 1.75 GRADE 2
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

42

Gravely 03184400

SHEAVE 1

$155.99

$

In Stock, only 1 left!

0

43

Gravely 05805500

PIN-GROOVE .188 X .75

$1.49

$

Usually ships in 4-12 days

0

44

Gravely 03037600

BLADE TRAY

$43.99

$

Usually ships in 4-12 days

0

45

Gravely 03027851

BLADE
(Superseded to 03027800)

$22.99

$

In Stock, Qty 6

0

46

Gravely 05412000

BEARING-BALL .750 X 1.781 X .61

$13.99

$

In Stock, Qty 20+

0

47

Gravely 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

48

Gravely 06601400

KEY-WOODRUF .188 X .62 X .25

$2.49

$

In Stock, Qty 10

0

49

Gravely 03032300

SPINDLE HOUSING

$

$

Not available

50

Gravely 00341900

BEARING SLINGER

$20.99

$

In Stock, Qty 5

0

51

Gravely 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

52

Gravely 00317000

BLADE TRAY

$30.99

$

Usually ships in 4-12 days

0

53

Gravely 03032859

MOWER BLADE 22 1/2"
(Superseded to 03032800)

$33.99

$

In Stock, Qty 5

0

54

Gravely 03038000

RAMP

$

$

Not available

55

Gravely 03034759

SKID BAR RH

$

$

Not available

56

Gravely 06223600

BOLT-ROUND HEAD SQUARE NECK .38-16 X 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

57

Gravely 06203200

BOLT-ROUND HEAD SQUARE NECK .38-16 X 2.00
(Superseded to 06200323)

$2.99

$

In Stock, Qty 17

0

58

Gravely 03041659

DEFELCTOR

$80.99

$

Usually ships in 4-12 days

0

59

Gravely 06529700

NUT-LOCKING-CENTER .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

60

Gravely 00318500

FLAT SPRING
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

61

Gravely 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

62

Gravely 06214300

BOLT-ROUND HEAD SQUARE NECK .25-20 X .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

63

Gravely 03035000

HINGE PIN

$

$

Not available

64

Gravely 05947000

BOLT-HEX .31-18 X .75 GRADE 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

65

Gravely 06706900

PIN-COTTER .09 X .75

$0.99

$

In Stock, Qty 5

0

66

Gravely 06436200

WASHER-FLAT-STEEL .406 X .81 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

67

Gravely 53124200

SPINDLE ASSEMBLY

Note: CONTAINS ITEMS 46-50

$

$

Not available

68

Gravely 06529400

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

69

Gravely 06308800

WASHER-LOCKING .375 X .115
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

70

Gravely 06529800

NUT-LOCKING-CENTER .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

71

Gravely 06437200

WASHER-FLAT-STEEL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

72

Gravely 03093300

PTO ASSEMBLY

$471.99

$

Usually ships in 4-12 days

0

73

Gravely 53102600

SHEARBOLT & NUT ASSEMBLY

$13.99

$

Usually ships in 4-12 days

0

74

Gravely 03155700

YOKE

$164.99

$

Usually ships in 4-12 days

0

75

Gravely 03155800

JOURNAL CROSS & BEARING ASSEMBLY

$

$

Not available

76

Gravely 03094700

SLIP YOKE

$223.99

$

Usually ships in 4-12 days

0

77

Gravely 03094600

YOKE & SHAFT

$189.99

$

Usually ships in 4-12 days

0

78

Gravely 20823200

Q.D. YOKE

Note: (S/N = 000101 - 003737)

$213.99

$

Usually ships in 4-12 days

0

78

Gravely 03155900

YOKE

Note: (S/N = 003738 AND UP)

$224.99

$

Usually ships in 4-12 days

0

79

Gravely 08738900

SPRING

Note: (S/N = 003738 AND UP)

$9.49

$

In Stock, only 1 left!

0

80

Gravely 05429900

BALL .312

Note: (S/N = 003738 AND UP)

$5.49

$

In Stock, only 1 left!

0

81

Gravely 08739000

COLLAR

Note: (S/N = 003738 AND UP)

$25.99

$

Usually ships in 4-12 days

0

82

Gravely 08739100

SNAP RING

Note: (S/N = 003738 AND UP)

$14.99

$

Usually ships in 4-12 days

0

82

Gravely 53126000

SHAFT RETENTION KIT

Note: (S/N = 000101 - 003737)

$14.99

$

Usually ships in 4-12 days

0

83

Gravely 07213300

V-BELT

$51.99

$

Usually ships in 4-12 days

0

84

Gravely 06543100

NUT-LOCKING-TOP-FLANGE .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

85

Gravely 06223600

BOLT-ROUND HEAD SQUARE NECK .38-16 X 1.00 GRADE 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0
