831026 - Ariens 60" Mower Deck (SN: 000101 - 000600) Gear Box 60" Parts Diagram

60" Mower Deck

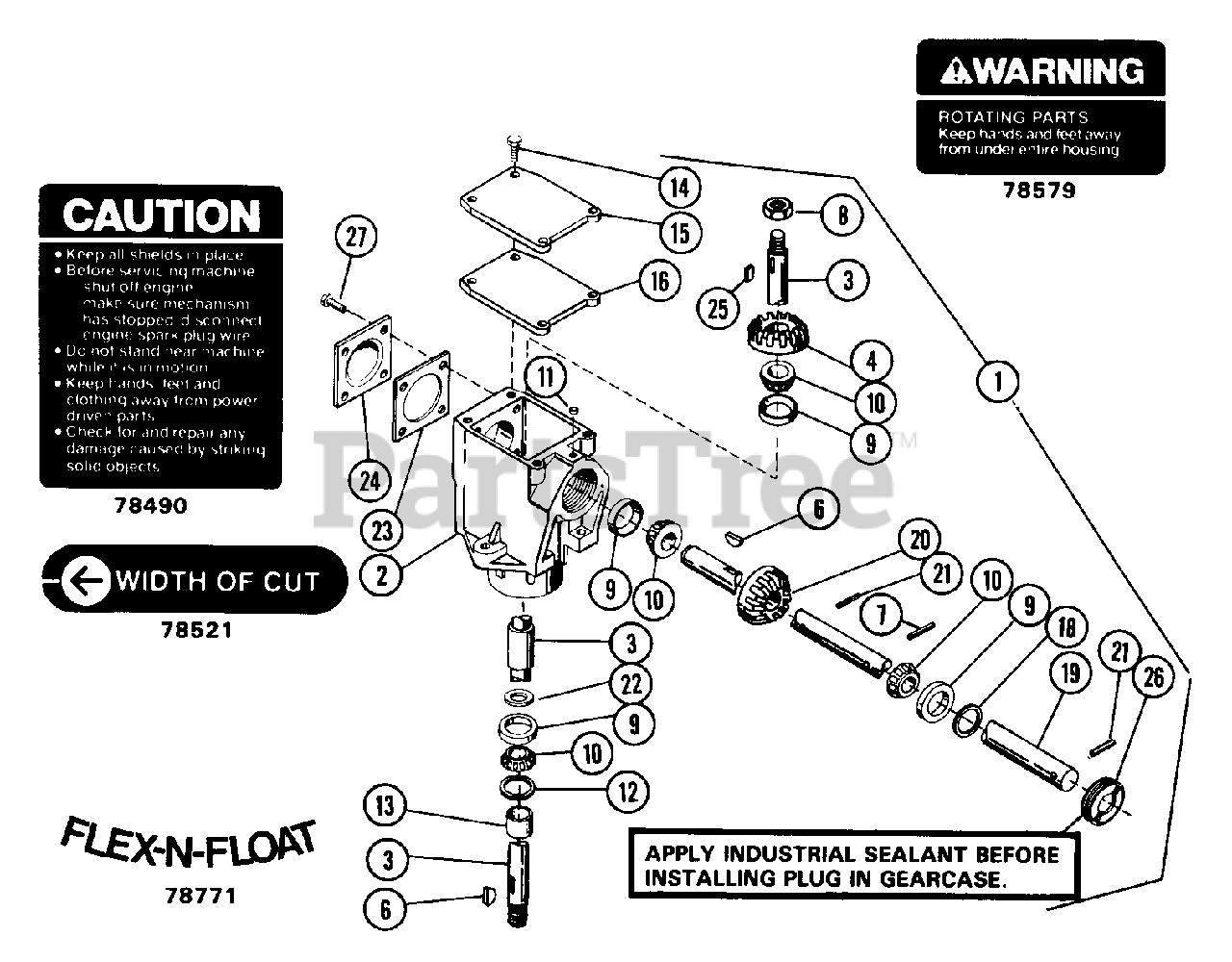

Gear Box 60" Parts Diagram

  • Title

831026 S/N 000101 TO 000600

$

$

Not available

1

Ariens 63112300

MOWER GEAR CASE 48 IN
(Superseded to 53121200)

$

$

Not available

2

Ariens 03183000

GEAR CASE

$276.99

$

In Stock, only 1 left!

0

3

Ariens 03191200

OUTPUT SHAFT

$

$

Not available

4

Ariens 03182900

GEAR - BEVEL

$

$

Not available

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

7

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$7.49

$

In Stock, Qty 11

0

8

Ariens 06512800

NUT-JAM-CTR .562-18 PLAIN

$6.49

$

Usually ships in 4-12 days

0

9

Ariens 05404400

BRG-CUP 1.781X.475

$11.99

$

In Stock, Qty 20+

0

10

Ariens 05404500

BRG-CONE .750X.61

$29.99

$

In Stock, only 3 left!

0

11

Ariens 03191400

PLUG

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 05606600

SEAL 1.000X1.980X.375

$17.99

$

In Stock, only 2 left!

0

13

Ariens 03191300

SPACER .752X1.000X.850

$

$

Not available

14

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03183100

COVER, GEAR CASE

$37.99

$

Usually ships in 4-12 days

0

16

Ariens 03183500

TOP GASKET

$5.49

$

In Stock, only 3 left!

0

17

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05606200

SEAL .750X1.499X.225

$7.49

$

In Stock, Qty 12

0

19

Ariens 03184000

SHAFT, INPUT

$112.99

$

Usually ships in 4-12 days

0

20

Ariens 03182900

GEAR - BEVEL

$

$

Not available

21

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.99

$

In Stock, only 2 left!

0

22

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

22

Ariens 06411700

WSHR-FL-STL .811X1.25X.005
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 06411800

WSHR-FL-STL .811X1.25X.015
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 06411900

WSHR-FL-STL .811X1.25X.025
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 53108400

GASKET - SHIM KIT

$46.99

$

Usually ships in 4-12 days

0

24

Ariens 03183200

BEARING SIDE COVER

$

$

Not available

25

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

26

Ariens 01037100

ADJUSTMENT PLUG

$

$

Not available

27

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.99

$

In Stock, Qty 5

0
