831027 - Ariens 48" Mower Deck (SN: 000401 & Above) Tiller 48" Chain Drive And Gears Parts Diagram

48" Mower Deck

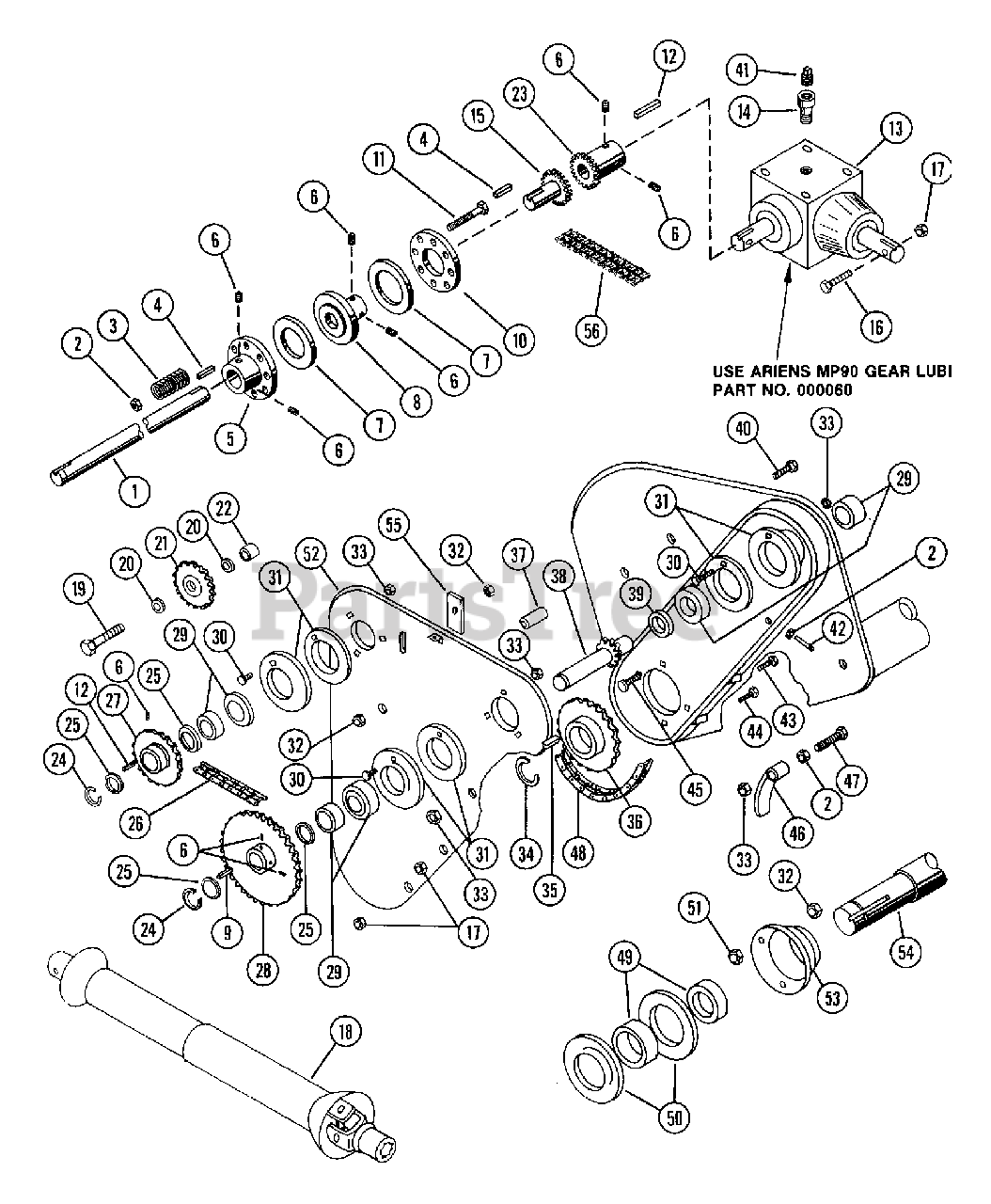

Tiller 48" Chain Drive And Gears Parts Diagram

  • Title

1

Ariens 03323700

DRIVE SHAFT

$

$

Not available

2

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

3

Ariens 08319300

SG-COMP .135X.66X.75 WLD210

$11.99

$

Usually ships in 4-12 days

0

4

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

5

Ariens 03323100

HUB-END PLATE

$

$

Not available

6

Ariens 06003200

SCR-SET .32-18X.50 SKH

$

$

Not available

7

Ariens 03321200

CLUTCH DISC

$

$

Not available

8

Ariens 03323200

HUB-CENTER

$

$

Not available

9

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

10

Ariens 03321100

PRESSURE PLATE

$

$

Not available

11

Ariens 05913000

BLT-HEX .31-18X2.75 GR5
(Superseded to 05960600)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 03331300

GEAR BOX ASSEMBLY

$

$

Not available

14

Ariens 03317200

COUPLING

$

$

Not available

15

Ariens 03323500

COUPLER-MALE HALF

$

$

Not available

16

Ariens 05915200

BLT-HEX .38-16X2.50 PL GR5
(Superseded to 05958400)

$3.99

$

In Stock, Qty 20+

0

17

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 03331400

UNIVERSAL DRIVE SHAFT

$

$

Not available

19

Ariens 05921300

BLT-HEX .50-13X2.75 PL GR5
(Superseded to 05965500)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03318500

IDLER SPROCKET

$

$

Not available

22

Ariens 03318600

SPACER-IDLER

$

$

Not available

23

Ariens 03323400

COUPLER-FEMALE HALF

$

$

Not available

24

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 3 left!

0

25

Ariens 06403000

WSHR-FL-STL 1.015X1.500X.134

$

$

Not available

26

Ariens 03320300

ROLLER CHAIN

$

$

Not available

27

Ariens 03323300

SPROCKET 11T

$

$

Not available

28

Ariens 03320500

SPROCKET 40 T

$

$

Not available

29

Ariens 05414400

BRG-BALL 1.0X2.047X.59
(Superseded to 05426200)

$45.99

$

In Stock, Qty 6

0

30

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

31

Ariens 03319800

FLANGETTE

$

$

Not available

32

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05708800

RG-RTNG-EXT 1.500X.050

$

$

Not available

35

Ariens 06602400

KEY-SQ .38X1.00X.375 SAE 1035

$

$

Not available

36

Ariens 03320700

DRIVEN SPROCKET

$

$

Not available

37

Ariens 02453000

TUBE .512 X .747 X 2.00

$

$

Not available

38

Ariens 03320400

SPROCKET SHAFT

$

$

Not available

39

Ariens 03143700

SPACER 1.050X1.312X.410

$

$

Not available

40

Ariens 05911000

BLT-HEX .50-13X3.00 PL GR2

$

$

Not available

41

Ariens 03316900

VENT PLUG

$

$

Not available

42

Ariens 06003800

SCR-SET .32-18X2.00 SKHCUP

$

$

Not available

43

Ariens 06207900

BLT=RDHDSQNK .38-16X2.75 GR2PL
(Superseded to 06205000)

$

$

Not available

44

Ariens 03318200

CARRIAGE BOLT-SPECIAL

$

$

Not available

45

Ariens 06207400

BLT-RDHDSQNK .50-13X1.50 PL
(Superseded to 06223100)

$4.49

$

Usually ships in 4-12 days

0

46

Ariens 03144000

CHAIN TIGHTNER

$

$

Not available

47

Ariens 05921100

BLT-HEX .31-18X2.75 GR2

$

$

Not available

48

Ariens 03320600

DRIVE CHAIN

$

$

Not available

49

Ariens 05414500

BRG-BALL 1.50X80MMX1.7

$

$

Not available

50

Ariens 03319900

FLANGETTE-4 HOLE

$

$

Not available

51

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

52

Ariens 03318000

INNER COVER

$

$

Not available

53

Ariens 03320000

CAP-BEARING GUARD

$

$

Not available

54

Ariens 03323000

TINE SHAFT

$

$

Not available

55

Ariens 03318700

STRAP

$

$

Not available

56

Ariens 03323600

CHAIN-COUPLER

$

$

Not available
