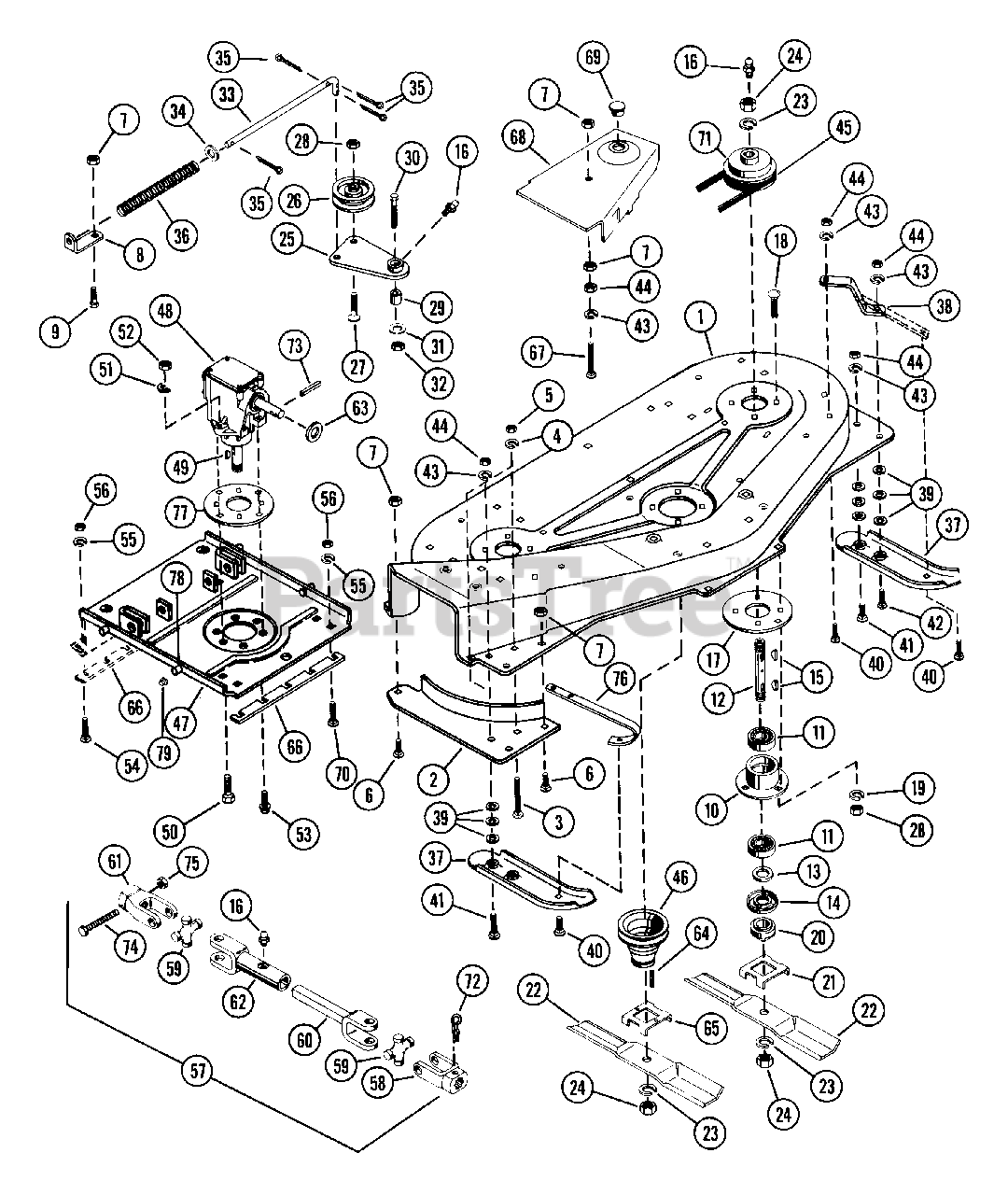

831028 - Ariens 48" Mower Deck (SN: 000101 & Above) Mower 48" Drive & Blades Parts Diagram

48" Mower Deck

Mower 48" Drive & Blades Parts Diagram

  • Title

1

Ariens 53400100

48 INCH MOWER PAN W/DECALS

$

$

Not available

2

Ariens 03401900

TOE GUARD

$

$

Not available

3

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 17

0

4

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

5

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

6

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 15

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03418800

BRACKET
(Superseded to 03418851)

$58.99

$

Usually ships in 4-12 days

0

9

Ariens 05916800

BLT-HEX .31-18X.50 GR5

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 03032300

HOUSING, SPINDLE

$

$

Not available

11

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

12

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

13

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

14

Ariens 00341900

BEARING SLINGER

$20.99

$

In Stock, Qty 5

0

15

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 10

0

16

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

17

Ariens 03402000

PLATE

$

$

Not available

18

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

19

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

20

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

21

Ariens 03194500

BLADE TRAY
(Superseded to 03485500)

$20.99

$

In Stock, only 2 left!

0

22

Ariens 03027800

BLADE

$22.99

$

In Stock, Qty 6

0

23

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 10

0

24

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, Qty 20+

0

25

Ariens 53400300

IDLER ARM W/ZERK

$103.99

$

In Stock, only 1 left!

0

26

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 15

0

27

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03403800

SPACER .512X.747X.968

$20.99

$

Usually ships in 4-12 days

0

30

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

31

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

32

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0

33

Ariens 03433900

ROD-IDLER SPRING

$96.99

$

Usually ships in 4-12 days

0

34

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

36

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 03034500

SKID
(Superseded to 03034559)

$38.99

$

In Stock, only 1 left!

0

38

Ariens 03034800

BRACE
(Superseded to 03034859)

$21.99

$

Usually ships in 4-12 days

0

39

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

40

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 15

0

41

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 13

0

42

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 9

0

43

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

44

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

45

Ariens 07208100

V-BELT, HA-WRAPPED

$53.99

$

In Stock, only 1 left!

0

46

Ariens 03184400

SHEAVE

$155.99

$

In Stock, only 1 left!

0

47

Ariens 03047100

MOUNTING PLATE

$

$

Not available

48

Ariens 53121200

MOWER GEAR CASE OLD 48" & 60"

$

$

Not available

49

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

50

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

51

Ariens 03189900

SHIM

$13.99

$

Usually ships in 4-12 days

0

52

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 07406000

SCR-TAP .312-18X1.0 THH PL TR
(Superseded to 07413900)

$3.99

$

In Stock, Qty 5

0

54

Ariens 06204700

BLT-RDHDSQNK .50-13X1.25GR5PL
(Superseded to 06224700)

$5.99

$

In Stock, only 1 left!

0

55

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

56

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

57

Ariens 03065400

PTO ASSEMBLY
(Superseded to 03093300)

$471.99

$

Usually ships in 4-12 days

0

57

Ariens 03065100

PTO ASSEMBLY

$

$

Not available

58

Ariens 03155900

YOKE

$224.99

$

Usually ships in 4-12 days

0

59

Ariens 03155800

JOURNAL CROSS & BEARING ASSEMB

$

$

Not available

60

Ariens 03026600

YOKE AND SHAFT
(Superseded to 03094600)

$189.99

$

Usually ships in 4-12 days

0

60

Ariens 03052000

YOKE & SHAFT

$

$

Not available

61

Ariens 03155700

YOKE

$164.99

$

Usually ships in 4-12 days

0

62

Ariens 03026700

SLIP YOKE
(Superseded to 03094700)

$223.99

$

Usually ships in 4-12 days

0

63

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

64

Ariens 05805500

PIN-GRV .188X.75 TP A

$1.49

$

Usually ships in 4-12 days

0

65

Ariens 03184200

BLADE TRAY
(Superseded to 03037600)

$43.99

$

Usually ships in 4-12 days

0

66

Ariens 03038100

SHIM

$22.99

$

Usually ships in 4-12 days

0

67

Ariens 06208400

BLT-RDHDSQNK .31-18X3.0 SHT PL

$

$

Not available

68

Ariens 03435300

BELT COVER-RH

$

$

Not available

68

Ariens 03435400

BELT COVER LH

$

$

Not available

69

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

70

Ariens 06207400

BLT-RDHDSQNK .50-13X1.50 PL
(Superseded to 06223100)

$4.49

$

Usually ships in 4-12 days

0

71

Ariens 03401800

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

72

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

Usually ships in 4-12 days

0

73

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 18

0

74

Ariens 05915700

BLT-HEX .25-20X2.13 GR5
(Superseded to 53102600)

$13.99

$

Usually ships in 4-12 days

0

75

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

77

Ariens 03121400

SHIM

$15.99

$

Usually ships in 4-12 days

0

78

Ariens 06805000

RVT .312X.75 RH ST

$

$

Not available

79

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0
