831028 - Ariens 48" Mower Deck (SN: 000101 & Above) Mower Gear Box Parts Diagram

48" Mower Deck

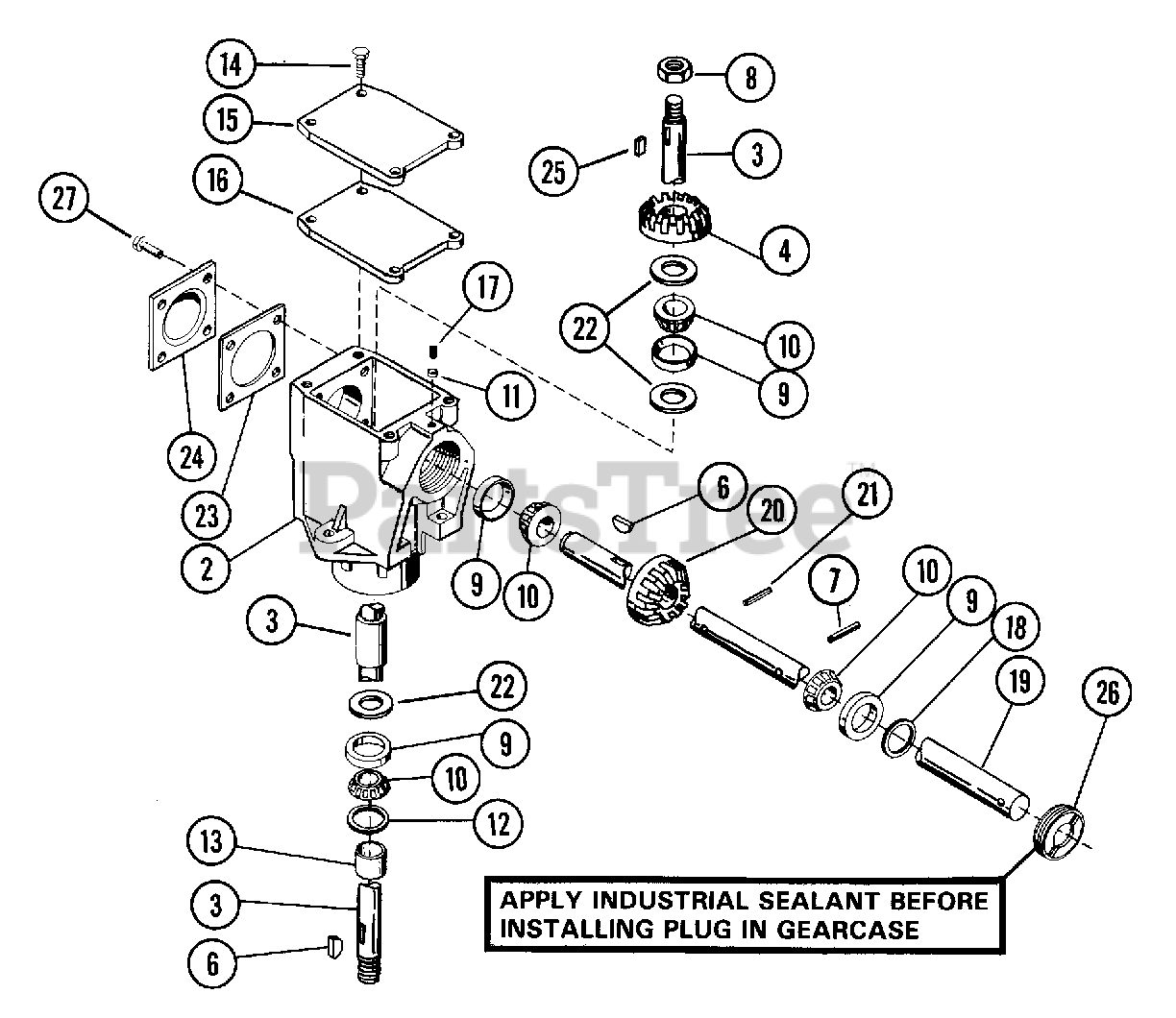

Mower Gear Box Parts Diagram

  • Title

1

Ariens 53121200

MOWER GEAR CASE OLD 48" & 60"

Note: (Used Only On Model(s): 831028).

$

$

Not available

1

Ariens 53121100

MOWER GEAR CASE 42" AND NEW 48

Note: (Used Only On Model(s): 831029).

$

$

Not available

2

Ariens 03183000

GEAR CASE

$270.99

$

In Stock, only 1 left!

0

3

Ariens 03191200

OUTPUT SHAFT

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 03184500

GEAR

Note: (Used Only On Model(s): 831029).

$231.99

$

Usually ships in 4-12 days

0

4

Ariens 03182900

GEAR - BEVEL

Note: (Used Only On Model(s): 831028).

$

$

Not available

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

7

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$6.99

$

In Stock, only 1 left!

0

8

Ariens 06512800

NUT-JAM-CTR .562-18 PLAIN

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

10

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

11

Ariens 03191400

PLUG

$6.49

$

Usually ships in 4-12 days

0

12

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 1 left!

0

13

Ariens 03191300

SPACER .752X1.000X.850

$41.99

$

Usually ships in 4-12 days

0

14

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03183100

COVER, GEAR CASE

$36.99

$

Usually ships in 4-12 days

0

16

Ariens 03183500

TOP GASKET

$4.99

$

In Stock, only 3 left!

0

17

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05606200

SEAL .750X1.499X.225

$6.99

$

In Stock, only 4 left!

0

19

Ariens 03184000

SHAFT, INPUT

$110.99

$

Usually ships in 4-12 days

0

20

Ariens 03184600

GEAR - BEVEL

Note: (29)

$258.99

$

Usually ships in 4-12 days

0

20

Ariens 03182900

GEAR - BEVEL

Note: (28)

$

$

Not available

21

Ariens 05807200

PIN-GRV .188X1.00 TP E

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 06420800

WSHR-FL-STL .781X1.000X.025
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 06420600

WSHR-FL-STL .781X.1.000X.005

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 06420900

WSHR-FL-STL .781X1.000X.003
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

22

Ariens 06420700

WSHR-FL-STL .781X1.000X.015
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 53108400

GASKET - SHIM KIT

$44.99

$

Usually ships in 4-12 days

0

23

Ariens 03190800

SIDE COVER GASKET

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 03190700

SIDE COVER GASKET

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 03183200

BEARING SIDE COVER

$64.99

$

Usually ships in 4-12 days

0

25

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 16

0

26

Ariens 01037100

ADJUSTMENT PLUG

$77.99

$

Usually ships in 4-12 days

0

27

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, only 2 left!

0

28

Ariens 00015000

MULTIPURPOSE GREASE
(Superseded to 00036700)

$20.99

$

In Stock, only 1 left!

0
