831032 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro 48" Drive And Housing Parts Diagram

48" Two Stage Sno-Thro Attachment

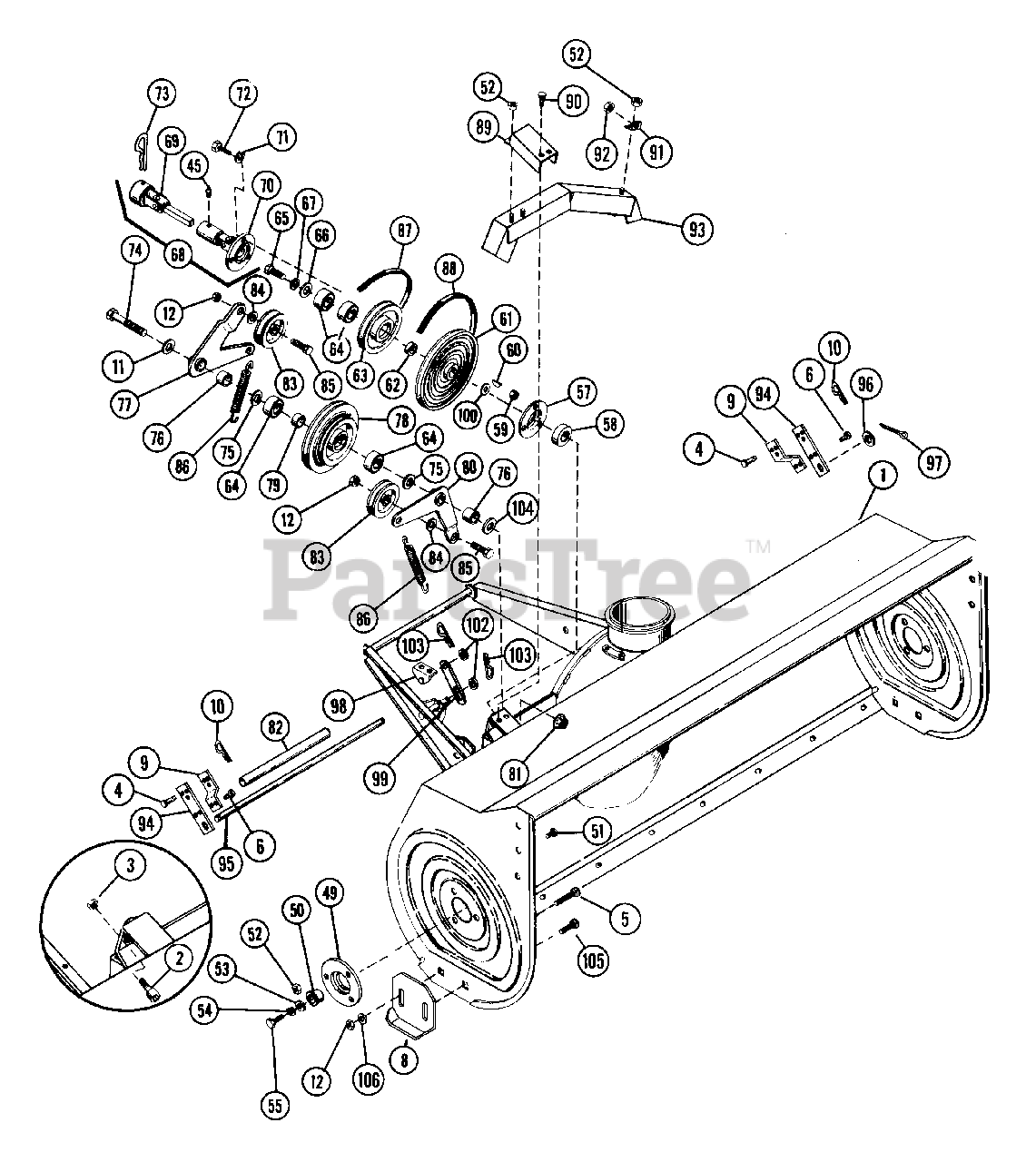

Sno-Thro 48" Drive And Housing Parts Diagram

  • Title

1

Ariens 53107700

BLOWER HOUSING ASSEMBLY

$

$

Not available

2

Ariens 05915600

SCR-SKH 10-24X.38

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 01331500

CLEVIS PIN
(Superseded to 06805500)

$

$

Not available

5

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$37.99

$

In Stock, Qty 6

0

9

Ariens 03191100

SUPPORT
(Superseded to 03191143)

$31.99

$

In Stock, only 1 left!

0

10

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 7

0

11

Ariens 06418800

WSHR-FL-STL .765X1.250X.093

$

$

Not available

12

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

49

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

50

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

51

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

52

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

53

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 19

0

54

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

55

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

57

Ariens 03185900

BEARING FLANGE

$22.99

$

In Stock, only 4 left!

0

58

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

59

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 11

0

61

Ariens 07310200

PLY-V 10.00 X .88 W/KEY SALEM

$79.99

$

Usually ships in 4-12 days

0

62

Ariens 03186100

SPACER .906X1.125X.453

$27.99

$

Usually ships in 4-12 days

0

63

Ariens 03186200

SHEAVE

$140.99

$

Usually ships in 4-12 days

0

64

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

65

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

67

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

68

Ariens 03065500

UNIVERSAL SHAFT ASSEMBLY
(Superseded to 03099900)

$536.99

$

Usually ships in 4-12 days

0

69

Ariens 03186300

UNIVERSAL SPLINE HALF
(Superseded to 03099900)

$536.99

$

Usually ships in 4-12 days

0

70

Ariens 03186400

UNIVERSAL PLATE HALF
(Superseded to 21537500)

$335.99

$

Usually ships in 4-12 days

0

71

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

72

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

73

Ariens 06703000

PIN-HAIR INT .18X1.18X3.25 PL
(Superseded to 53126000)

$14.99

$

Usually ships in 4-12 days

0

74

Ariens 05919000

BLT-HEX .75-10X5.50 GR2
(Superseded to 05964300)

$7.99

$

Usually ships in 4-12 days

0

75

Ariens 06410900

WSHR-FL-STL .781X1.500X.188
(Superseded to 06439000)

$1.49

$

In Stock, Qty 17

0

76

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

77

Ariens 03186800

IDLER ARM
(Superseded to 03186843)

$9.49

$

Usually ships in 4-12 days

0

78

Ariens 03186600

SHEAVE

$

$

Not available

79

Ariens 03186700

SPACER .781X1.000X.547

$20.99

$

Usually ships in 4-12 days

0

80

Ariens 03186500

IDLER ARM
(Superseded to 03186543)

$11.99

$

Usually ships in 4-12 days

0

81

Ariens 06512500

NUT-LK-FLG .75-10 GR F PL
(Superseded to 06535400)

$5.99

$

Usually ships in 4-12 days

0

82

Ariens 03189600

TUBE .725 X .875 X 14.00

$

$

Not available

83

Ariens 07305400

IDLER-FLAT 3.00 X .38 CLK.&CAP

$22.99

$

Usually ships in 4-12 days

0

84

Ariens 06413100

WSHR-FL-STL .406X.875X.135

$

$

Not available

85

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 10

0

86

Ariens 08312600

SG-TENS 6.0 FREE LENGTH
(Superseded to 08325100)

$45.99

$

Usually ships in 4-12 days

0

87

Ariens 07209500

V-BELT, HA-RAW EDGE

$34.99

$

Usually ships in 4-12 days

0

88

Ariens 07209600

V-BELT, 4L-RAW EDGE

$31.99

$

In Stock, only 1 left!

0

89

Ariens 03190100

COVER
(Superseded to 03190143)

$5.99

$

Usually ships in 4-12 days

0

90

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 7

0

91

Ariens 03189200

CLIP

$5.99

$

Usually ships in 4-12 days

0

92

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

93

Ariens 03187300

BELT GUARD
(Superseded to 03187343)

$

$

Not available

94

Ariens 03191000

LIFT LINK
(Superseded to 03191043)

$34.99

$

In Stock, only 1 left!

0

95

Ariens 03187500

SHAFT

$

$

Not available

96

Ariens 06414000

WSHR-FL-STL .688X1.75X.134PL
(Superseded to 06442900)

$1.49

$

In Stock, only 2 left!

0

97

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 8

0

98

Ariens 03082900

LIMITING POST
(Superseded to 03082943)

$

$

Not available

99

Ariens 03187700

LIMITING ARM
(Superseded to 03187743)

$19.99

$

Usually ships in 4-12 days

0

100

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 13

0

102

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

103

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

104

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

105

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

106

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0
