831033 - Gravely 48" Deck for 4-Wheel Tractor (SN: 000101 & Above) MOWER GEAR BOX 48" Parts Diagram

48" Deck for 4-Wheel Tractor

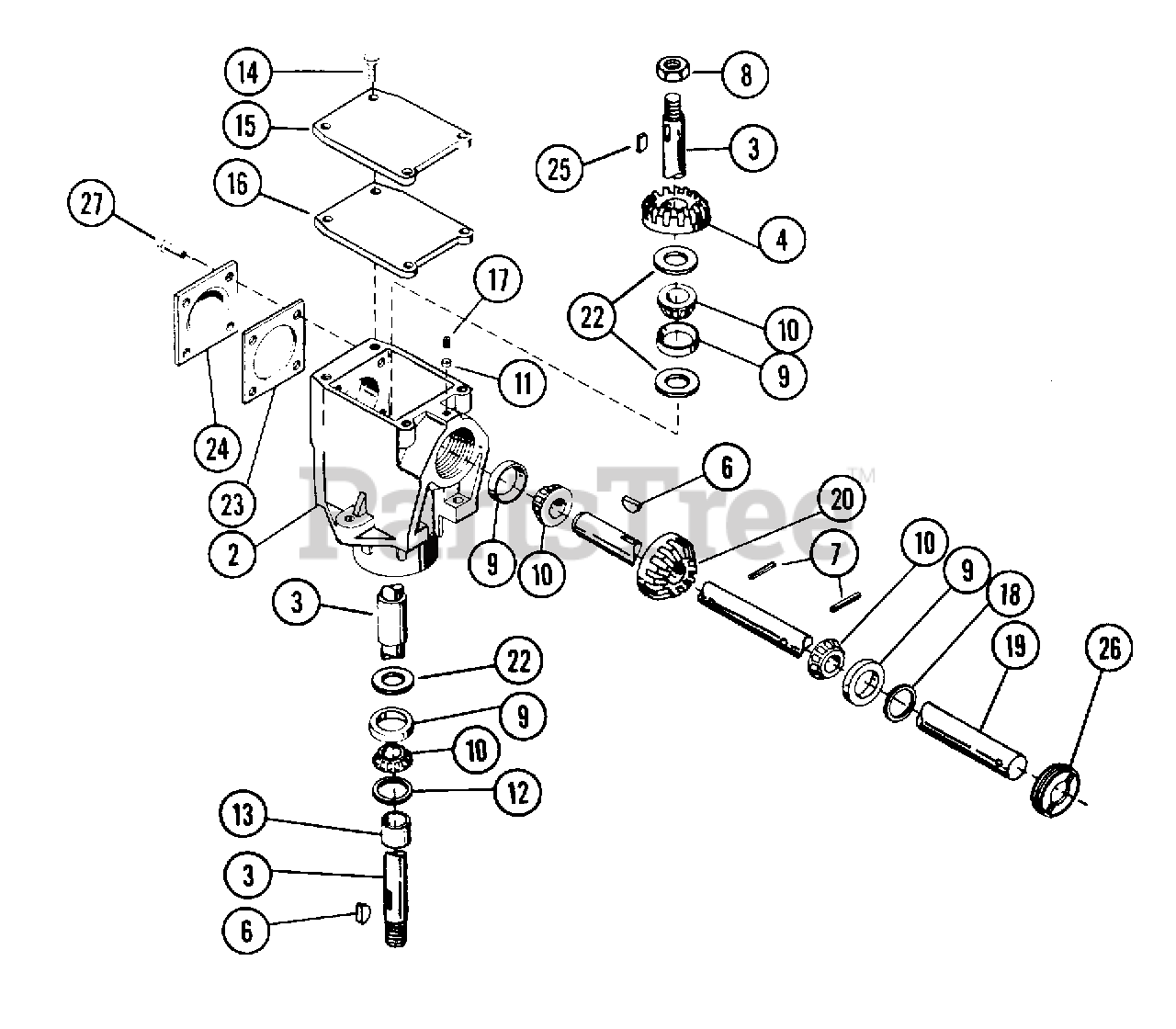

MOWER GEAR BOX 48" Parts Diagram

  • Title

2

Gravely 039570

GEAR CASE
(Superseded to 03183000)

$276.99

$

In Stock, only 1 left!

0

3

Gravely 039583

OUTPUT SHAFT
(Superseded to 03191200)

$

$

Not available

4

Gravely 039577

GEAR
(Superseded to 03184500)

$236.99

$

Usually ships in 4-12 days

0

6

Gravely 039736

KEY-WDRF .25X.750X.313 SAE91
(Superseded to 06601200)

$3.49

$

In Stock, only 2 left!

0

7

Gravely 454668

PIN,SPRING .187 X 1.250
(Superseded to 21072600)

$

$

Not available

8

Gravely 039773

NUT-JAM-CTR .562-18 PLAIN
(Superseded to 06512800)

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

10

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

11

Gravely 039585

PLUG
(Superseded to 03191400)

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 039606

SEAL 1.000X1.980X.375
(Superseded to 05606600)

$17.99

$

In Stock, only 4 left!

0

13

Gravely 039584

SPACER .752X1.000X.850
(Superseded to 03191300)

$

$

Not available

14

Gravely 039774

SCR-TAP 8-32X.38 SL HWH YWZC
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 039571

COVER, GEAR CASE
(Superseded to 03183100)

$37.99

$

Usually ships in 4-12 days

0

16

Gravely 039573

TOP GASKET
(Superseded to 03183500)

$5.49

$

In Stock, only 1 left!

0

17

Gravely 102569

SCR-SET .25-20X.25 SKHCUP OH
(Superseded to 06000500)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 039605

SEAL .750X1.499X.225
(Superseded to 05606200)

$7.49

$

In Stock, Qty 11

0

19

Gravely 039574

SHAFT, INPUT
(Superseded to 03184000)

$112.99

$

Usually ships in 4-12 days

0

20

Gravely 039578

GEAR - BEVEL
(Superseded to 03184600)

$

$

Not available

22

Gravely 039777

WSHR-FL-STL .781X1.000X.003
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

Gravely 036519

WSHR-FL-STL .781X.1.000X.005
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 039775

WSHR-FL-STL .781X.1.000X.005
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 039776

WSHR-FL-STL .781X.1.000X.005
(Superseded to 06420600)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 039743

WSHR-FL-STL .754X1.000X.032 YZ
(Superseded to 06444100)

$2.99

$

In Stock, Qty 9

0

23

Gravely 039580

SIDE COVER GASKET
(Superseded to 03190600)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 039581

SIDE COVER GASKET
(Superseded to 03190700)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 039582

SIDE COVER GASKET
(Superseded to 03190800)

$

$

Not available

24

Gravely 039572

BEARING SIDE COVER
(Superseded to 03183200)

$

$

Not available

25

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 039551

ADJUSTMENT PLUG
(Superseded to 01037100)

$

$

Not available

27

Gravely 039094

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0
