831038 - Ariens 42" Mower Deck (SN: 000585 - 003049) 42" Mower Hangers & Rollers Parts Diagram

42" Mower Deck

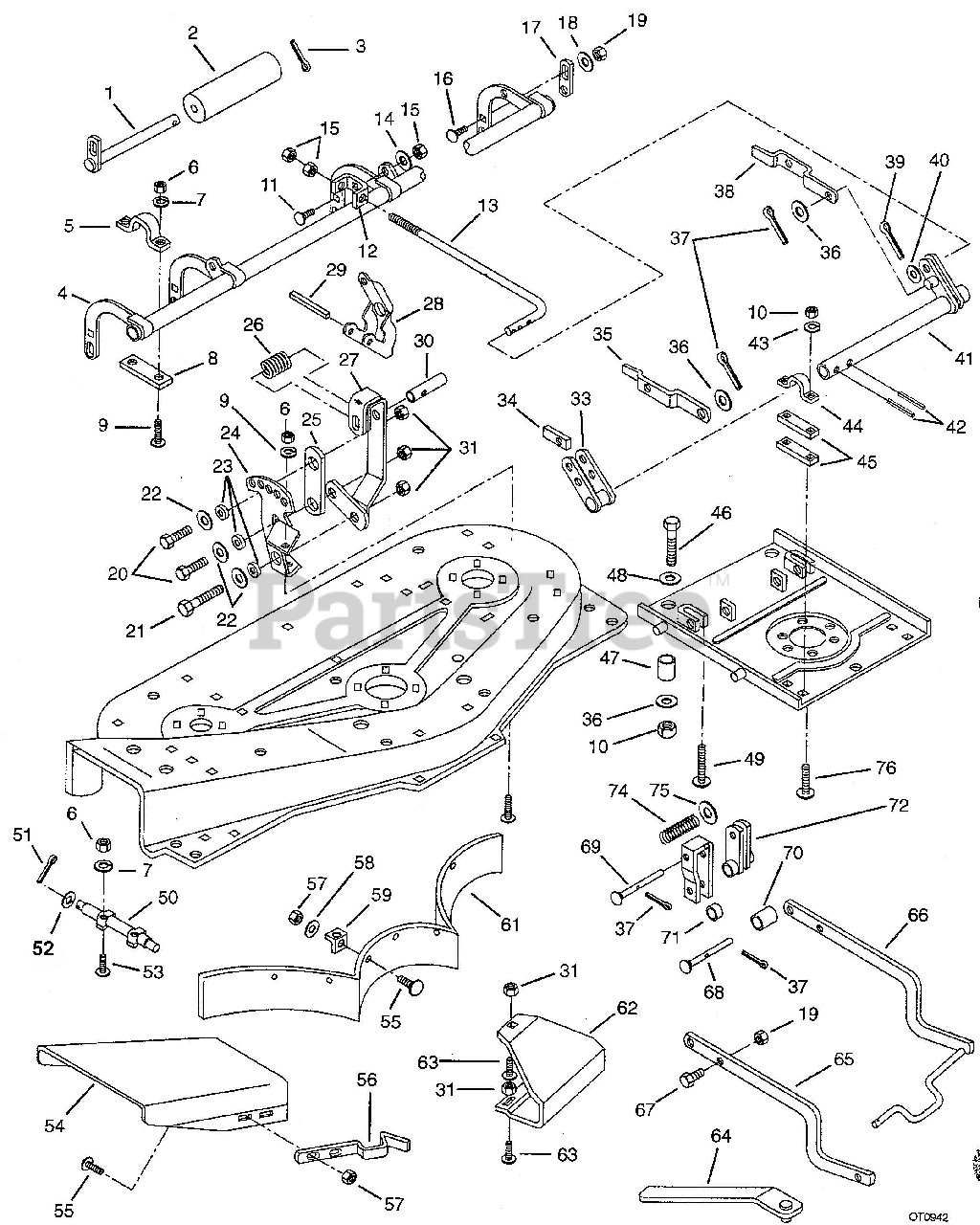

42" Mower Hangers & Rollers Parts Diagram

  • Title

1

Ariens 03401400

ROLLER SHAFT

$

$

Not available

2

Ariens 03402200

ROLLER

$

$

Not available

3

Ariens 06712000

@PIN-CTR .18X1.00 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 03401100

ROLLER FRAME 42 INCH

$

$

Not available

5

Ariens 03402359

CLAMP
(Superseded to 03402300)

$12.99

$

Usually ships in 4-12 days

0

6

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

8

Ariens 03402459

ADJUSTMENT PLATE

$

$

Not available

9

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

11

Ariens 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

12

Ariens 03400459

YOKE

$

$

Not available

13

Ariens 03403700

ADJUSTMENT ROD

$117.99

$

Usually ships in 4-12 days

0

14

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

17

Ariens 03115659

LINK

$

$

Not available

18

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

21

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 03405000

QUADRANT

$

$

Not available

25

Ariens 03401200

LINK

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 9

0

27

Ariens 03404800

HANDLE HEIGHT ADJ.

$

$

Not available

28

Ariens 03405400

LEVER

$

$

Not available

29

Ariens 05805600

PIN-ROLL .188X1.75

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 03404900

PIN

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03078759

FRONT HANGER LINK

$

$

Not available

34

Ariens 03035559

WEAR PLATE

$11.12

$

Usually ships in 4-12 days

0

35

Ariens 03035759

LEVELING LEVER R.H.
(Superseded to 03035751)

$

$

Not available

36

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

37

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 12

0

38

Ariens 03035659

LEVELING LEVER L.H.
(Superseded to 03035651)

$

$

Not available

39

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

40

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 15

0

41

Ariens 03033259

FRONT HANGER

$

$

Not available

42

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

44

Ariens 03033400

CLAMP

$26.99

$

Usually ships in 4-12 days

0

45

Ariens 03033300

PLATE

$

$

Not available

46

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

47

Ariens 03072300

SPACER .512X.747X1.567

$

$

Not available

48

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06223300

@BLT-RDHDSQNK .50-13X1.75 G2YZ
(Superseded to 06224800)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

51

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

52

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

54

Ariens 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

55

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

57

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

59

Ariens 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

60

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

61

Ariens 03072200

BAFFLE-42 IN PAN

$62.99

$

Usually ships in 4-12 days

0

62

Ariens 03405100

SKID 42 INCH MOWER

$

$

Not available

63

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

64

Ariens 03038000

RAMP

$

$

Not available

65

Ariens 03035200

HANGER ARM

$

$

Not available

66

Ariens 03035300

MOWER HANGER
(Superseded to 03035351)

$

$

Not available

67

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

68

Ariens 03122700

PIN-CLEV .498X4.50 YWZC

$

$

Not available

69

Ariens 03122100

PIN-CLEV .498X4.31 YWZC

$11.99

$

Usually ships in 4-12 days

0

70

Ariens 03121900

SPACER .516X.749X.938

$16.99

$

In Stock, only 1 left!

0

71

Ariens 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 4 left!

0

72

Ariens 03124759

ARM
(Superseded to 03124700)

$

$

Not available

73

Ariens 03122659

SUPPORT CHANNEL
(Superseded to 03122651)

$

$

Not available

74

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

75

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

76

Ariens 06223100

@BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0
