831042 - Ariens 48" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Discharge Chute Parts Diagram

48" Two Stage Sno-Thro Attachment

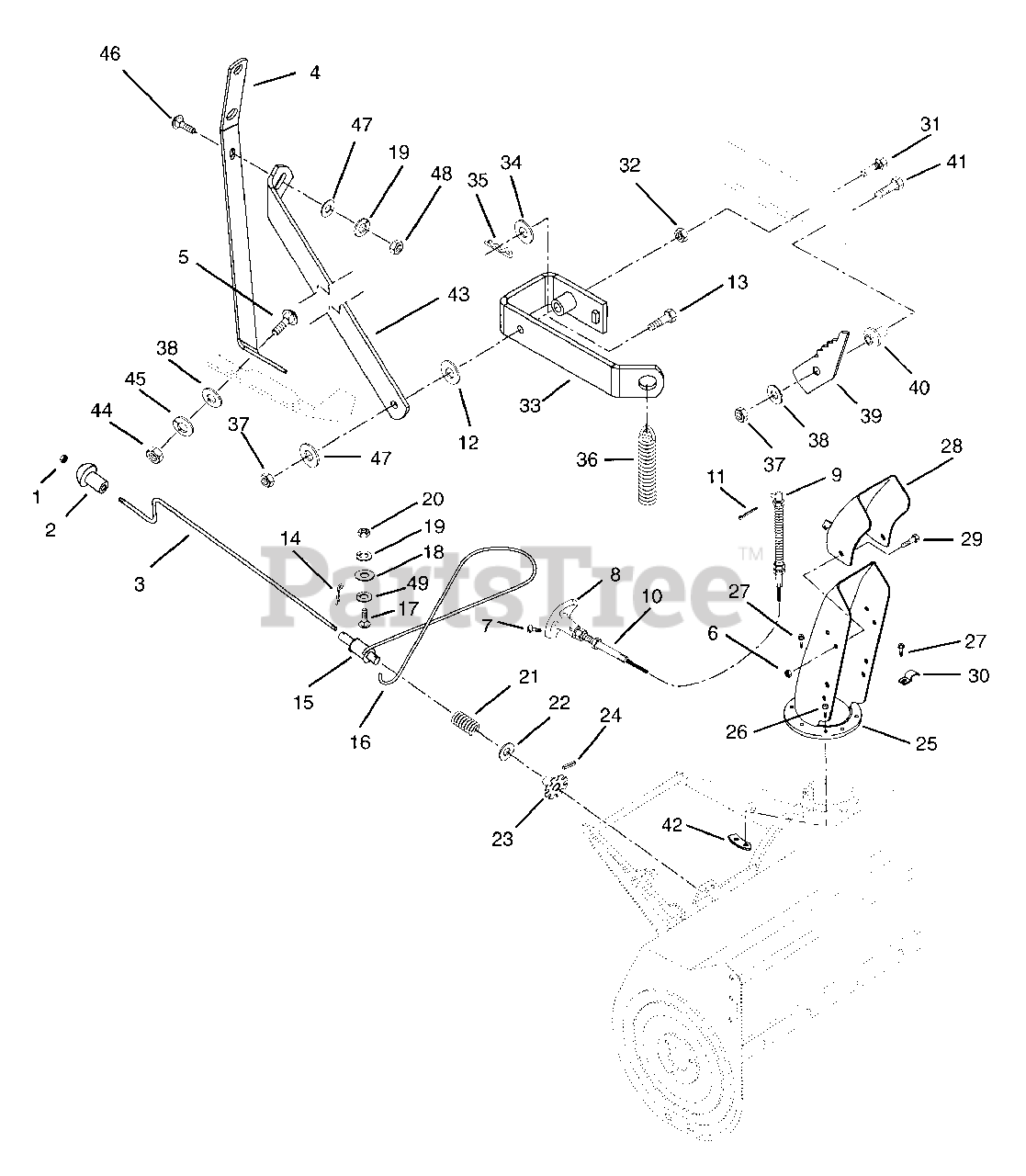

Discharge Chute Parts Diagram

  • Title

1

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 07509600

KNOB

$

$

Not available

3

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

4

Ariens 03093000

SUPPORT, ROD
(Superseded to 03093043)

$

$

Not available

5

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06117000

@SCR-MCH 8-32X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 07517100

KNOB-BLACK
(Superseded to 07530800)

$9.99

$

In Stock, only 1 left!

0

9

Ariens 06917500

PIVOT

$37.99

$

Usually ships in 4-12 days

0

10

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

11

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

13

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

14

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 03028600

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 03187100

CABLE

$142.99

$

Usually ships in 4-12 days

0

17

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

19

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

In Stock, only 2 left!

0

20

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

21

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

22

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

24

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

25

Ariens 03028359

DISCHARGE CHUTE

$145.99

$

In Stock, only 1 left!

0

26

Ariens 07411300

SCR-TAP 12-24X.50 TORX YWZC TR

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 07410000

SCR-TAP 12-24X.75 HWH PL TR
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 53114400

DEFLECTOR W/DECAL

$

$

Not available

29

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

30

Ariens 06900300

CABLE CLAMP

$

$

Not available

31

Ariens 01226800

STUD-WEIGHT

$

$

Not available

32

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

33

Ariens 03094000

SPRING ARM
(Superseded to 03094043)

$

$

Not available

34

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

35

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

36

Ariens 08317700

SG-TENS .188X1.50X8.5 WLD 57

$39.99

$

Usually ships in 4-12 days

0

37

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

39

Ariens 03037900

SPRING ASSIST CONTROL
(Superseded to 03037951)

$22.99

$

Usually ships in 4-12 days

0

40

Ariens 03019100

SPACER .323X.498X.531X1.000

$34.99

$

In Stock, only 1 left!

0

41

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

42

Ariens 02463500

CHUTE CLAMP

$17.99

$

Usually ships in 4-12 days

0

43

Ariens 03094100

BRACE
(Superseded to 03094143)

$45.99

$

Usually ships in 4-12 days

0

44

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

45

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

46

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

47

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

48

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

49

Ariens 06310600

WSHR-LK PYM .31X.062YWZC

$5.99

$

In Stock, only 1 left!

0
