831043 - Ariens 54" Snow Blade (SN: 000101 & Above) 54" Blade Parts Diagram

54" Snow Blade

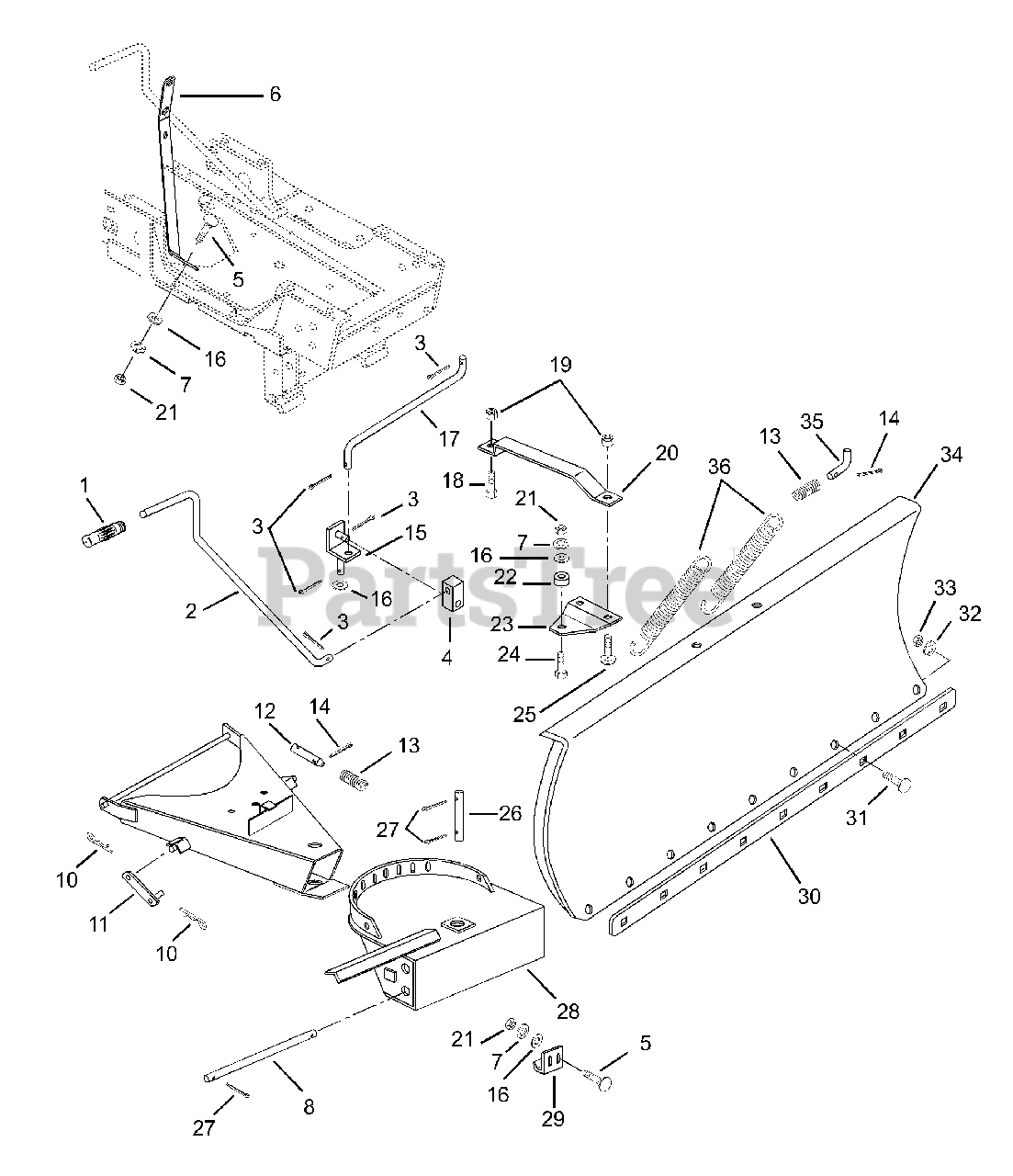

54" Blade Parts Diagram

  • Title

1

Ariens 07514700

GRIP - 3/8 ID X 2 7/8 - BLACK

$

$

Not available

2

Ariens 03127500

ROD

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

4

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

5

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 03093000

SUPPORT, ROD
(Superseded to 03093043)

$

$

Not available

7

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

8

Ariens 03127200

ROD

$39.99

$

Usually ships in 4-12 days

0

9

Ariens 03125000

54 IN FRAME

$

$

Not available

10

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

11

Ariens 03127300

ARM, LIFT LINK
(Superseded to 03127351)

$51.99

$

Usually ships in 4-12 days

0

12

Ariens 03125400

LATCH PIN

$

$

Not available

13

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

14

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 12

0

15

Ariens 03126900

ANGLE

$

$

Not available

16

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 03125300

ROD

$

$

Not available

18

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03126700

STRAP

$

$

Not available

21

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

22

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

23

Ariens 03125200

PIVOT PLATE

$

$

Not available

24

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

26

Ariens 03127600

PIN

$34.99

$

Usually ships in 4-12 days

0

27

Ariens 06712000

@PIN-CTR .18X1.00 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

28

Ariens 03125100

SUPPORT

$

$

Not available

29

Ariens 03127100

SKID SHOE

$

$

Not available

30

Ariens 03124900

WEAR PLATE
(Superseded to 03124951)

$140.99

$

Usually ships in 4-12 days

0

31

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

32

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

34

Ariens 03124800

54 IN BLADE

$

$

Not available

35

Ariens 03127700

JACK PIN

$5.99

$

Usually ships in 4-12 days

0

36

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 1 left!

0
