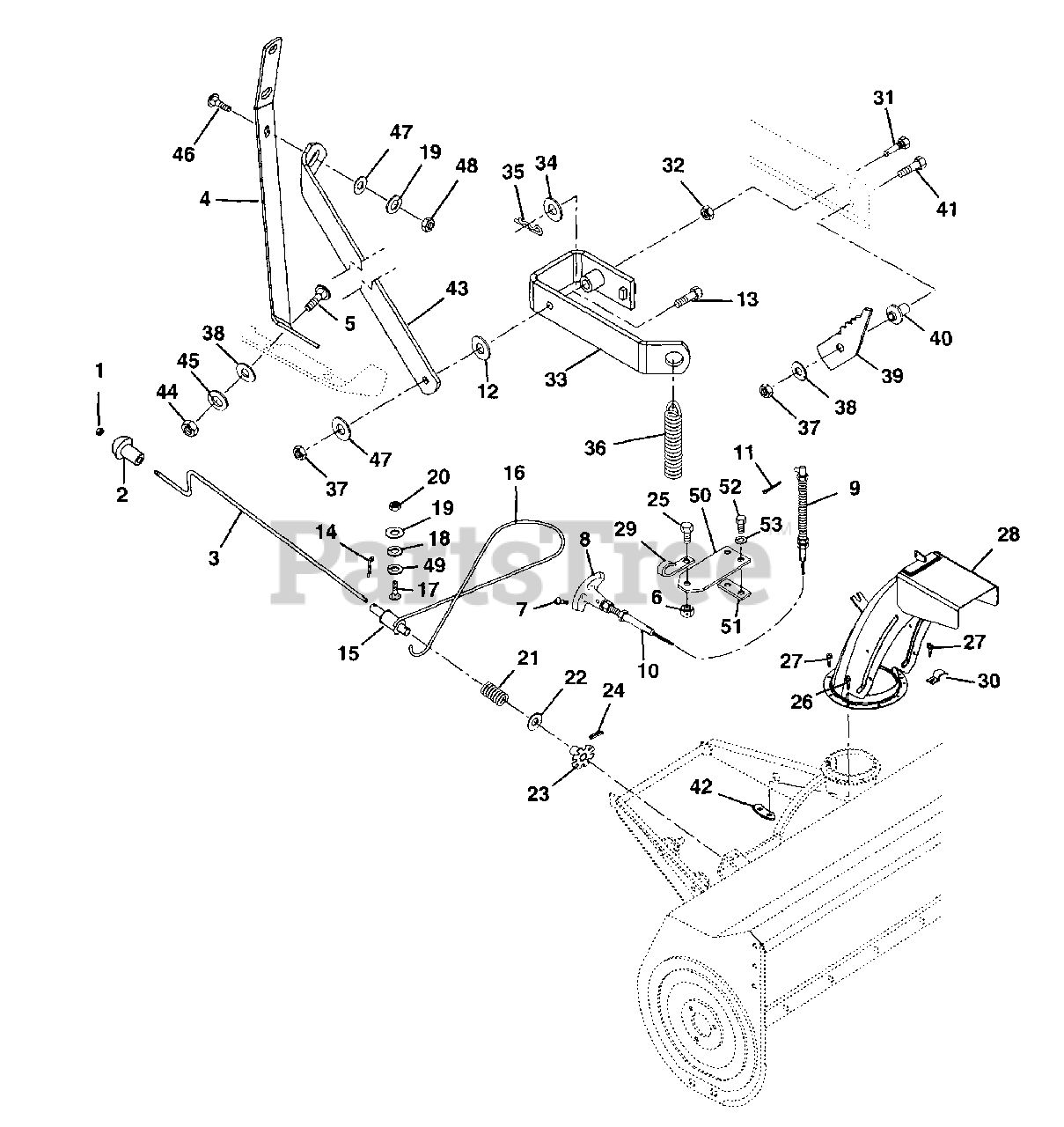

831045 - Gravely 48" Sno-Thro for 7173H Tractor (SN: 000101 & Above) Lift Linkage & Controls Parts Diagram

48" Sno-Thro for 7173H Tractor

Lift Linkage & Controls Parts Diagram

  • Title

1

Gravely 06537200

Nut-Locking-Jam-Center .375-16
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 049106

Knob
(Superseded to 07509600)

$

$

Not available

3

Gravely 049105

Chute Control Crank
(Superseded to 03081900)

$158.99

$

Usually ships in 4-12 days

0

4

Gravely 03093043

Support-Rod

$

$

Not available

5

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06117000

Screw-Machine-Hex-Washer Head 8-32 x .75

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 07530800

Knob-Black

$9.99

$

In Stock, only 1 left!

0

9

Gravely 06917500

Pivot

$38.99

$

Usually ships in 4-12 days

0

10

Gravely 06943400

Control Cable

$171.99

$

In Stock, only 1 left!

0

11

Gravely 06706900

Pin-Center .09 x .75

$0.99

$

In Stock, Qty 8

0

12

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

14

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

15

Gravely 03028600

Spool
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 036888

Cable
(Superseded to 03187100)

$148.99

$

Usually ships in 4-12 days

0

17

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

18

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 06306800

Washer-Locking-External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

21

Gravely 036891

Spring-Comp .054 x .75 x 1.6
(Superseded to 08316900)

$

$

Not available

22

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 036890

Disc Assembly
(Superseded to 03028700)

$54.99

$

Usually ships in 4-12 days

0

24

Gravely 05801600

Pin-Roll .188 x 1.00
(Superseded to 02470401)

$2.99

$

In Stock, only 2 left!

0

25

Gravely 05967000

Bolt-Hex .38-16 x .50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 07411300

Screw-Tapping 12-24 x .50

$6.49

$

Usually ships in 4-12 days

0

27

Gravely 07411400

Screw-Tapping 12-24 x .75
(Superseded to 07414600)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 53128200

Deflector w/Decal

$362.99

$

Usually ships in 4-12 days

0

29

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 036897

Cable Clamp
(Superseded to 06900300)

$

$

Not available

31

Gravely 039798

Stud-Weight
(Superseded to 01226800)

$

$

Not available

32

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

33

Gravely 03094043

Spring Arm

$

$

Not available

34

Gravely 06535900

Nut-Hex-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 08317700

Spring-Tens .188 x 1.50 x 8.5

$40.99

$

Usually ships in 4-12 days

0

37

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 039524

Spring Assist Control
(Superseded to 03037951)

$23.99

$

Usually ships in 4-12 days

0

40

Gravely 039799

Spacer
(Superseded to 03019100)

$51.99

$

In Stock, only 1 left!

0

41

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

42

Gravely 049103

Chute Clamp
(Superseded to 02463500)

$17.99

$

Usually ships in 4-12 days

0

43

Gravely 03094143

Brace

$45.99

$

Usually ships in 4-12 days

0

44

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06308800

Washer-Locking .375 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

46

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

49

Gravely 06310600

Washer-Locking .31 x .062

$6.49

$

In Stock, only 2 left!

0

50

Gravely 03098451

Bracket-Cable Holder

$5.99

$

Usually ships in 4-12 days

0

51

Gravely 03098500

Plate-Cable Holder

$113.99

$

Usually ships in 4-12 days

0

52

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

53

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 13

0
