83132-0007-H5 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

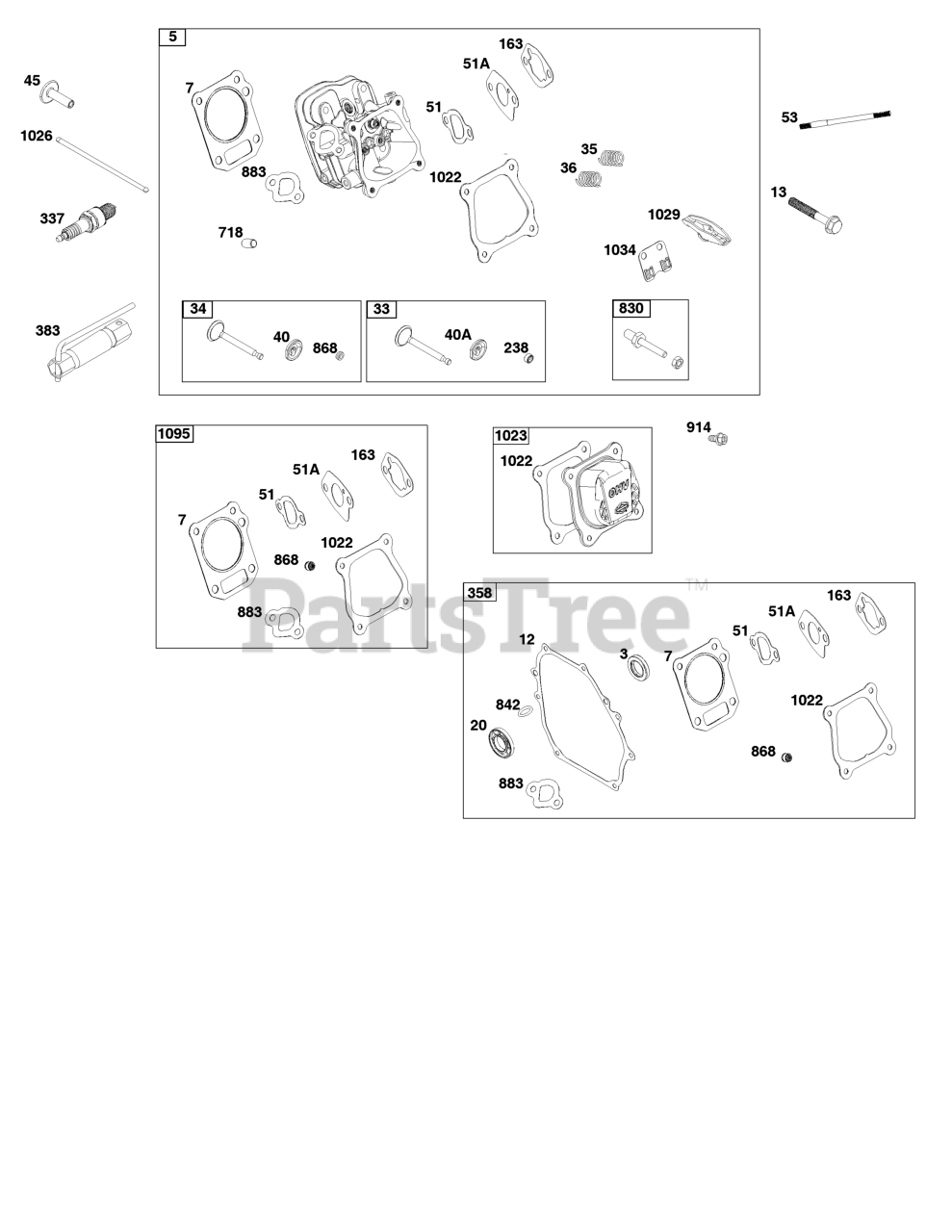

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 84002807

HEAD, Cylinder

$135.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84002800

GASKET, Cylinder Head

$15.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

13

Briggs & Stratton 797213

SCREW

Note: (Cylinder Head)

$3.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 797199

VALVE, Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 797198

VALVE, Intake

$24.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 797203

SPRING, Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 797203

SPRING, Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 797204

RETAINER, Valve

$6.49

$

In Stock, only 2 left!

0

40A

Briggs & Stratton 797205

RETAINER, Valve

$5.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 797208

TAPPET, Valve

$

$

Not available

51

Briggs & Stratton 797192

GASKET, Intake

$4.99

$

In Stock, only 2 left!

0

51A

Briggs & Stratton 797280

GASKET, Intake

$4.99

$

In Stock, only 2 left!

0

53

STUD

Note: (Part information located in Carburetor Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 797206

CAP, Valve

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, only 4 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$6.49

$

In Stock, only 4 left!

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 797200

STUD, Rocker Arm

$8.99

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 590648

SEAL, Valve

$13.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 798618

SCREW

Note: (Rocker Cover)

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 84004342

GASKET, Rocker Cover

$8.49

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 797196

COVER, Rocker

$29.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 797207

ROD, Push

$12.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 797202

ARM, Rocker

$11.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 797209

GUIDE, Push Rod

$12.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 84003129

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$24.99

$

Usually ships in 2-12 days

0
