832001 - Ariens 24" Rotary Brush Attachment (SN: 000101 & Above) Rotary Brush Parts Diagram

24" Rotary Brush Attachment

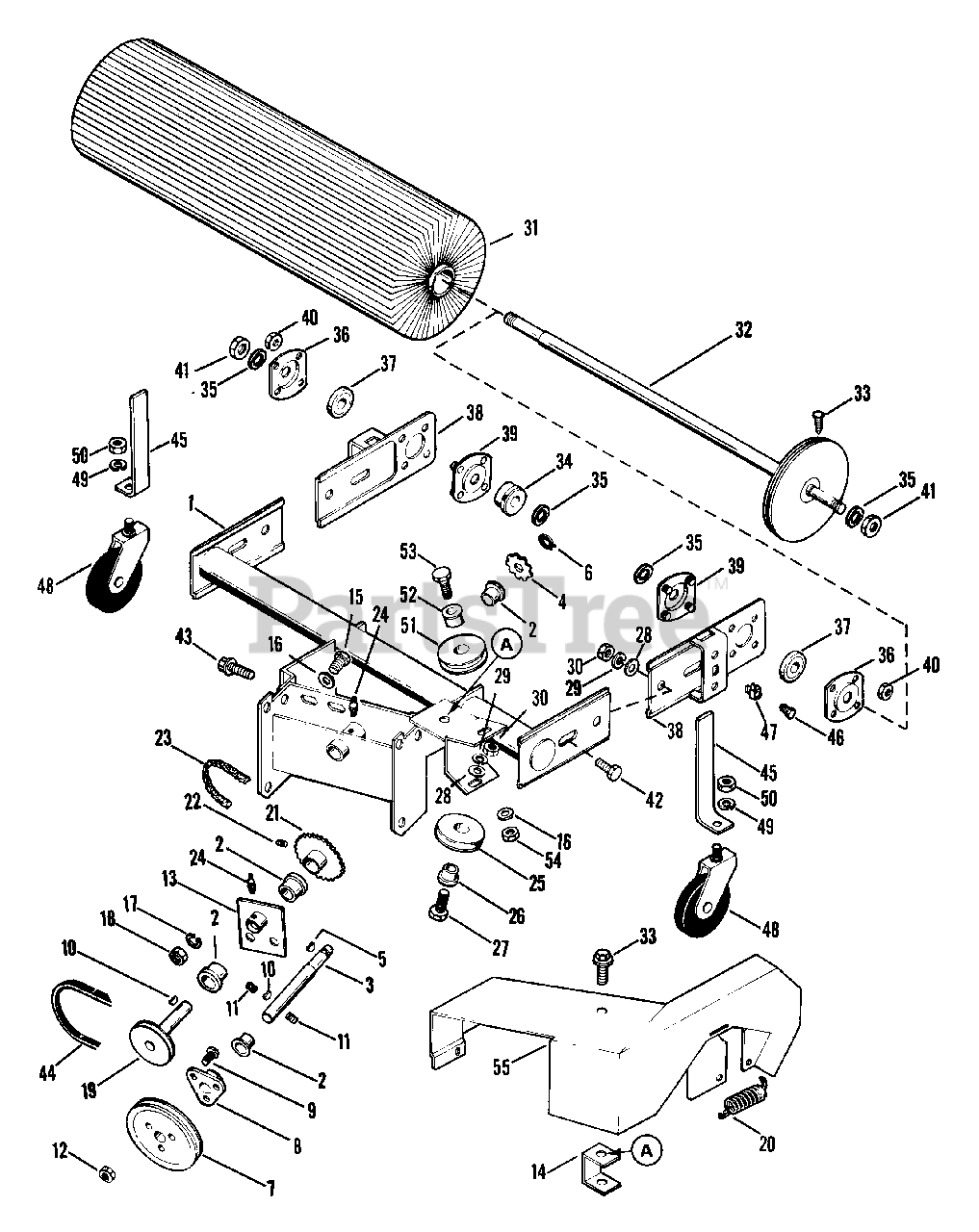

Rotary Brush Parts Diagram

  • Title

1

Ariens 03205100

BRUSH FRAME

$

$

Not available

2

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, only 3 left!

0

3

Ariens 03205200

SHAFT

$

$

Not available

4

Ariens 01027600

9 TOOTH SPROCKET

$43.99

$

Usually ships in 4-12 days

0

5

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 3 left!

0

6

Ariens 05701500

RG-RTNG-EXT .500X.035
(Superseded to 05717100)

$2.99

$

In Stock, only 2 left!

0

7

Ariens 07310300

PLY-V 7.0 X 1.25 3BLT

$

$

Not available

8

Ariens 00286200

HUB
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

9

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

10

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, only 4 left!

0

11

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 1 left!

0

12

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 8

0

13

Ariens 03205300

SPINDLE HOUSING
(Superseded to 03205351)

$

$

Not available

14

Ariens 03206400

BRACKET
(Superseded to 03206451)

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.99

$

In Stock, Qty 17

0

16

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, only 4 left!

0

18

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 10

0

19

Ariens 03205400

SPINDLE
(Superseded to 03205451)

$22.99

$

Usually ships in 4-12 days

0

20

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

$6.49

$

In Stock, Qty 7

0

21

Ariens 03205500

SPROCKET

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 1 left!

0

23

Ariens 01207800

CHAIN
(Superseded to 02477700)

$16.99

$

In Stock, only 2 left!

0

24

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

25

Ariens 07310400

IDLER-V 3.50 X .50 CAPITOL

$21.99

$

Usually ships in 4-12 days

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 9

0

27

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

28

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 8

0

30

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

31

Ariens 03205700

BRUSH

$

$

Not available

32

Ariens 03205800

BRUSH SHAFT

$45.99

$

Usually ships in 4-12 days

0

33

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

34

Ariens 03205900

HUB

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, Qty 10

0

36

Ariens 02414100

BEARING FLANGE

$19.99

$

In Stock, only 2 left!

0

37

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

38

Ariens 03206000

ARM
(Superseded to 03206051)

$5.99

$

Usually ships in 4-12 days

0

39

Ariens 00308500

BEARING FLANGE

$23.99

$

In Stock, only 2 left!

0

40

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, only 3 left!

0

41

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

43

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

44

Ariens 07211000

V-BELT, 4L-WRAPPED C-L2089
(Superseded to 07240800)

$39.99

$

Usually ships in 4-12 days

0

45

Ariens 03206100

ADJUSTMENT LEG
(Superseded to 03206151)

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 06002000

SCR-SET .38-16X.75 SQHCUP HT

$

$

Not available

47

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, only 4 left!

0

48

Ariens 03206200

CASTER

$

$

Not available

49

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

50

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

51

Ariens 07305400

IDLER-FLAT 3.00 X .38 CLK.&CAP

$29.99

$

Usually ships in 4-12 days

0

52

Ariens 03112700

SPACER .379X.625X.500
(Superseded to 01529600)

$

$

Not available

53

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.99

$

In Stock, Qty 5

0

54

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 03206300

BELT COVER
(Superseded to 03206351)

$31.99

$

Usually ships in 4-12 days

0
