832002 - Ariens 20" Sno-Thro Attachment (SN: 058101 & Above) Sno-Thro 20" Parts Diagram

20" Sno-Thro Attachment

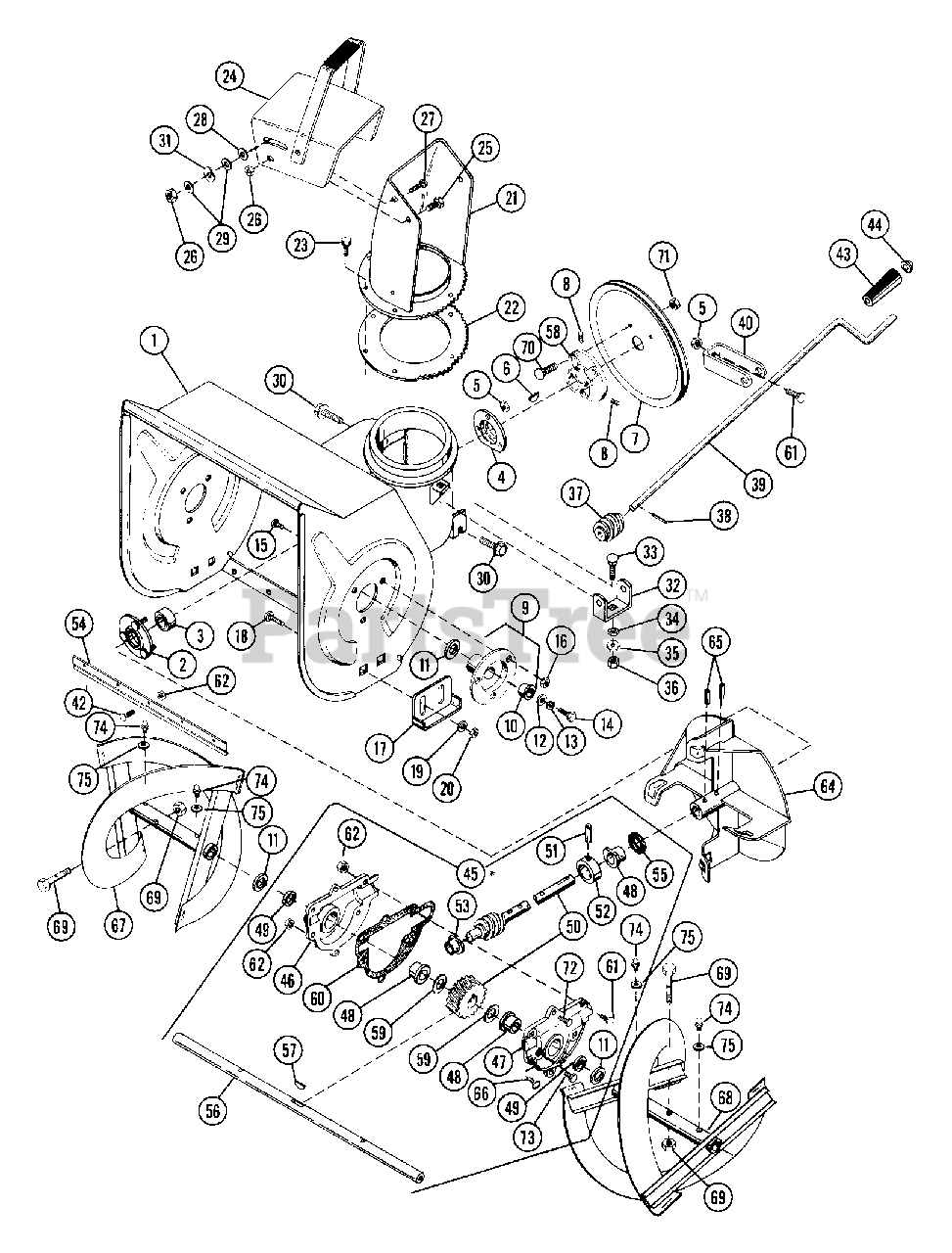

Sno-Thro 20" Parts Diagram

  • Title

1

Ariens 53200300

20 IN BLOWER HOUSING WITH DECA
(Superseded to 53209700)

Note: (Used Only On Model(s): 932001,4,832002).

$

$

Not available

2

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 5

0

3

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 2 left!

0

4

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

5

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 8

0

7

Ariens 07310300

PLY-V 7.0 X 1.25 3BLT

Note: (ATTACHMENT)

$

$

Not available

8

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

9

Ariens 63201400

BEARING FLANGE ASSEMBLY
(Superseded to 53203100)

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.99

$

In Stock, Qty 16

0

12

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.99

$

In Stock, Qty 10

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

14

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 6

0

16

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01016500

RUNNER
(Superseded to 02483859)

$20.99

$

In Stock, Qty 20+

0

18

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

19

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 02215900

CHUTE - DISCHARGE
(Superseded to 03214800)

$

$

Not available

22

Ariens 02216000

GEAR - LOWER COLLAR

$

$

Not available

23

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 52200600

DEFLECTOR SERVICE ASSEMBLY
(Superseded to 53201300)

Note: (INCLUDE WARNING DECALNO. 78618)

$

$

Not available

25

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.99

$

In Stock, Qty 20+

0

28

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 9

0

29

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

Usually ships in 4-12 days

0

30

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

31

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

32

Ariens 02212300

WORM CLEVIS

$16.99

$

Usually ships in 4-12 days

0

33

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

34

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$6.49

$

In Stock, only 2 left!

0

35

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

37

Ariens 02211000

WORM GEAR

$

$

Not available

38

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, only 4 left!

0

39

Ariens 02208100

CHUTE CONTROL CRANK

$

$

Not available

40

Ariens 53200400

BRACKET WITH DECAL

$

$

Not available

42

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07503900

GRIP

$

$

Not available

44

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

45

Ariens 53200200

GEAR CASE - 20" - ALUMINUM
(Superseded to 53206900)

Note: (Used Only On Model(s): 001,004,832002).

$603.99

$

In Stock, only 1 left!

0

46

Ariens 03203200

R H GEAR CASE HALF
(Superseded to 53206700)

$

$

Not available

47

Ariens 03203300

L H GEAR CASE HALF
(Superseded to 53206700)

$

$

Not available

48

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 10

0

49

Ariens 05604300

SEAL .750X1.000X.125

$6.99

$

In Stock, only 4 left!

0

50

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

$122.99

$

In Stock, only 3 left!

0

51

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 12

0

52

Ariens 03210300

THRUST COLLAR

$63.99

$

Usually ships in 4-12 days

0

53

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

$9.99

$

In Stock, only 2 left!

0

54

Ariens 03206700

SCRAPER BLADE

Note: (Used Only On Model(s): 932001,4,832002).

$34.99

$

In Stock, Qty 6

0

55

Ariens 05604700

O-RING .250X.943X.103

$2.99

$

In Stock, only 3 left!

0

56

Ariens 03203600

SHAFT, RAKE - 20"

Note: (Used Only On Model(s): 932001,4,832002).

$

$

Not available

57

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

Usually ships in 4-12 days

0

58

Ariens 00286200

HUB
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

59

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$7.49

$

In Stock, only 1 left!

0

60

Ariens 03203800

GASKET

$5.49

$

In Stock, only 3 left!

0

61

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$4.99

$

Usually ships in 4-12 days

0

62

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

64

Ariens 03204000

IMPELLER - 10"
(Superseded to 03204051)

$226.99

$

In Stock, only 1 left!

0

65

Ariens 05800700

PIN-ROLL .250X1.25

$1.49

$

In Stock, Qty 18

0

66

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

67

Ariens 03204100

RAKE, RIGHT-20(.75ID X10.88OD)
(Superseded to 53201400)

Note: (Used Only On Model(s): 932001,4,832002).

$

$

Not available

68

Ariens 03204200

RAKE, LEFT-20"(.75OD X10.88OD)
(Superseded to 53201500)

Note: (Used Only On Model(s): 932001,4,832002).

$

$

Not available

69

Ariens 53200500

SHEAR BOLT WITH NUT

$3.49

$

In Stock, Qty 20+

0

70

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

71

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

72

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 6

0

73

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$4.99

$

Usually ships in 4-12 days

0

74

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

75

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0
