832008 - Ariens Tiller Attachment (SN: 000101 & Above) Rotary Tiller Parts Diagram

Tiller Attachment

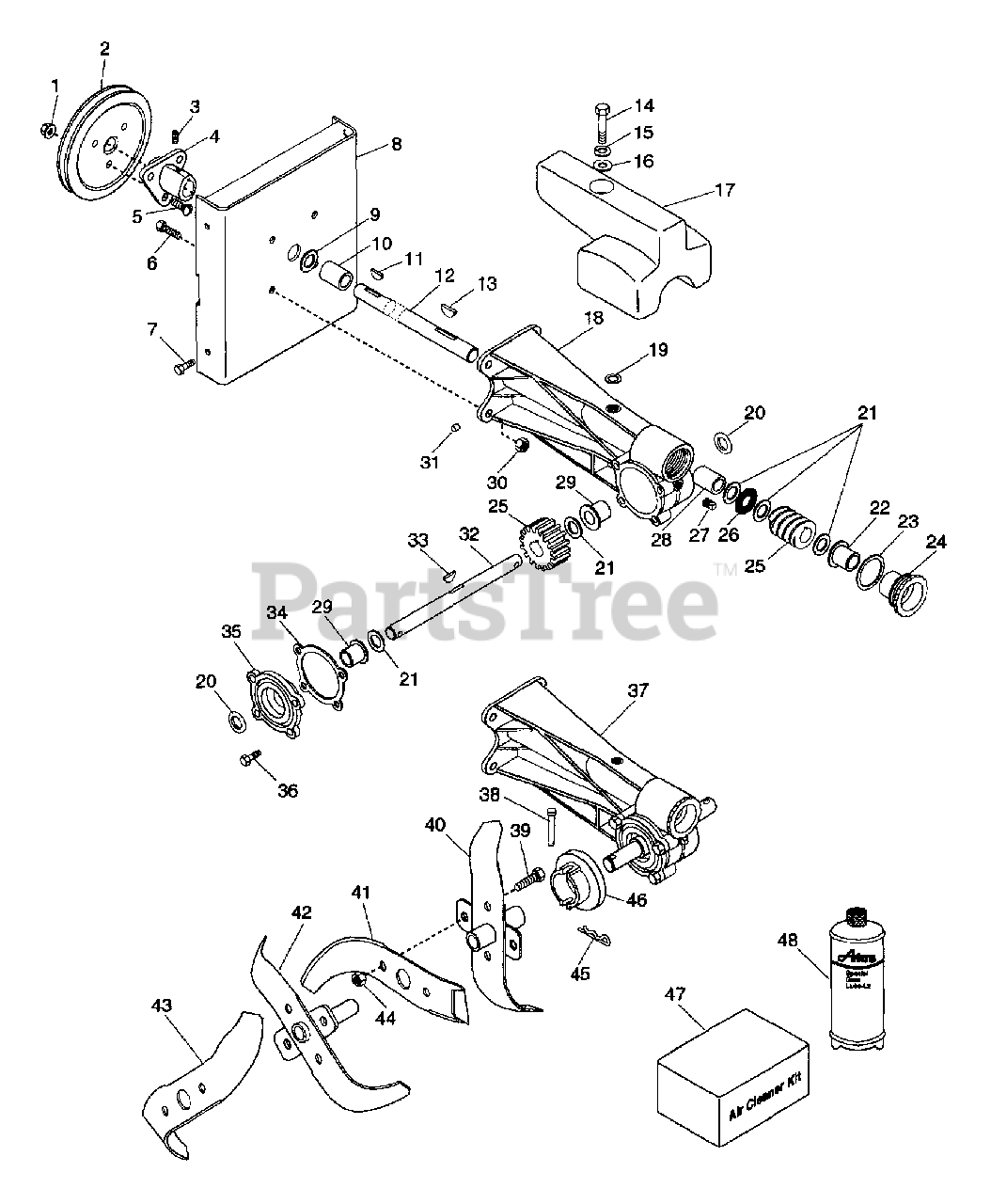

Rotary Tiller Parts Diagram

  • Title

1

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 2 left!

0

2

Ariens 07316300

PLY-V 8.50 X 1.25 3BLT

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

4

Ariens 00286200

HUB
(Superseded to 50202100)

$78.99

$

In Stock, only 3 left!

0

5

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

6

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

7

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 03210700

TILLER MOUNTING PLATE
(Superseded to 53205600)

$

$

Not available

9

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 20+

0

10

Ariens 05510300

BSHG-SLV .750X1.000X1.000

$17.99

$

In Stock, only 2 left!

0

11

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 11

0

12

Ariens 00280700

WORM SHAFT

$155.99

$

Usually ships in 4-12 days

0

13

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

14

Ariens 05903000

BLT-HEX .38-16X2.25 GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

16

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03210600

TILLER WEIGHT
(Superseded to 03210651)

$

$

Not available

18

Ariens 03212000

GEARCASE
(Superseded to 00287100)

$

$

Not available

19

Ariens 03115800

SHIM SPACER

$9.99

$

In Stock, only 1 left!

0

20

Ariens 05609900

SEAL .750X1.980X.375

$15.99

$

Usually ships in 4-12 days

0

21

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

22

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

$17.99

$

In Stock, only 1 left!

0

23

Ariens 00285200

GASKET

$21.99

$

Usually ships in 4-12 days

0

24

Ariens 00285100

ADJUSTMENT PLUG

$140.99

$

Usually ships in 4-12 days

0

25

Ariens 53201200

WORM & WORM GEAR ASSEMBLY

$

$

Not available

26

Ariens 05410400

BRG-N THRST .754X1.24X.078

$12.99

$

In Stock, Qty 7

0

27

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

29

Ariens 05510500

BSHG-FLG .750X1.250X.750X1.375

$25.99

$

Usually ships in 4-12 days

0

30

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 00200900

BREATHER

$3.49

$

Usually ships in 4-12 days

0

32

Ariens 00281100

TINE SHAFT

$

$

Not available

33

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 10

0

34

Ariens 00287300

GASKET

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 00287200

COVER

$

$

Not available

36

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

37

Ariens 53203300

TILLER GEARCASE - ALUMINUM

$

$

Not available

38

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

40

Ariens 00283600

R H INNER TINE SPOOL
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

40

Ariens 00283300

L H INNER TINE SPOOL
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

41

Ariens 00282200

R H INSIDE TINE
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

41

Ariens 00282100

L H INSIDE TINE
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

42

Ariens 00282800

R H OUTER TINE SPOOL
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

42

Ariens 00282700

L H OUTER TINE SPOOL
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

43

Ariens 00282400

R H OUTSIDE TINE
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

43

Ariens 00282300

L H OUTSIDE TINE
(Superseded to 50203000)

$312.99

$

Usually ships in 4-12 days

0

44

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 7

0

46

Ariens 00283400

DUST CAP

$9.99

$

Usually ships in 4-12 days

0

47

Ariens 02400500

AIR CLEANER KIT

$

$

Not available

48

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.99

$

In Stock, Qty 13

0
