83221 - Toro Rear PTO (1973) PARTS LIST-REAR POWER TAKE-OFF MODEL 8-3221 Parts Diagram

Rear PTO

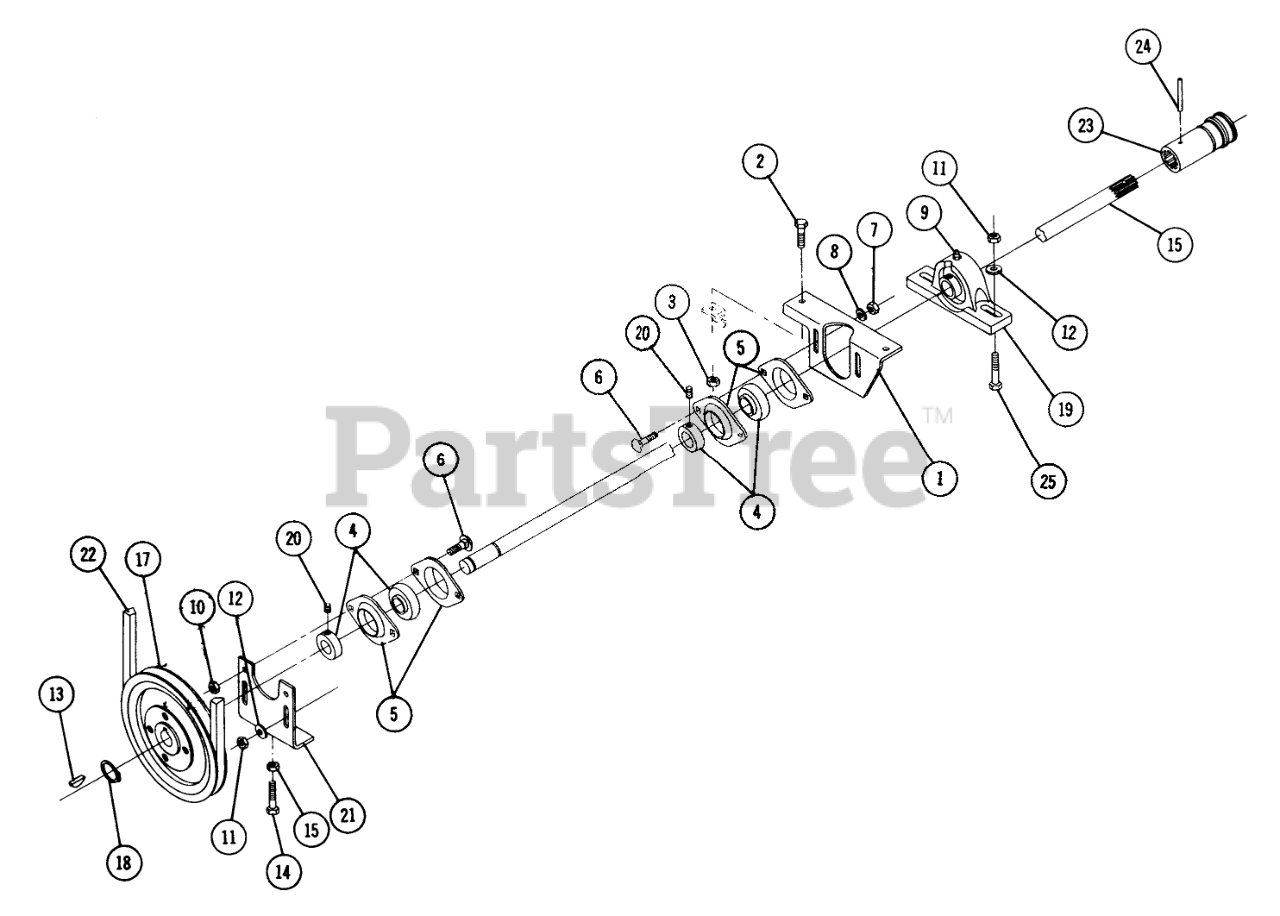

PARTS LIST-REAR POWER TAKE-OFF MODEL 8-3221 Parts Diagram

  • Title

1

Toro 102749

Bracket

$

$

Not available

2

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

3

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

4

Toro 103083

BEARING

$

$

Not available

5

Toro 103081

FLANGE

$

$

Not available

6

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

7

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8

Toro 920038-4

Washer

$

$

Currently unavailable

9

Toro 1291

ZERK 90DEGREE

$

$

Not available

10

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

11

Toro 915113-6

Nut

$

$

Currently unavailable

12

Toro 920009-4

Washer

$

$

Currently unavailable

13

Toro 937090

Key-Woodruff 1/4 x 3/4

$

$

Currently unavailable

14

Toro 911408-4

Bolt Hex 3/8-16 x 1 1/2

$

$

Currently unavailable

15

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

16

Toro 102048

Shaft

$

$

Not available

17

Toro 102312

Pulley

$

$

Not available

18

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 18

0

19

Toro 103142

Assembly Bearing

$

$

Not available

20

Toro 909962-6

Set Screw 1/4-28 x 1/4

$

$

Currently unavailable

21

Toro 102417

Bearing Bracket

$

$

Not available

22

Toro 103084

BELT PTO

$

$

Not available

23

Toro 102975

QUICK COUPLER ASSY

$

$

Not available

24

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

25

Toro 90836-4

Bolt-Hex 3/8-16 x 1 1/2

$

$

Currently unavailable
