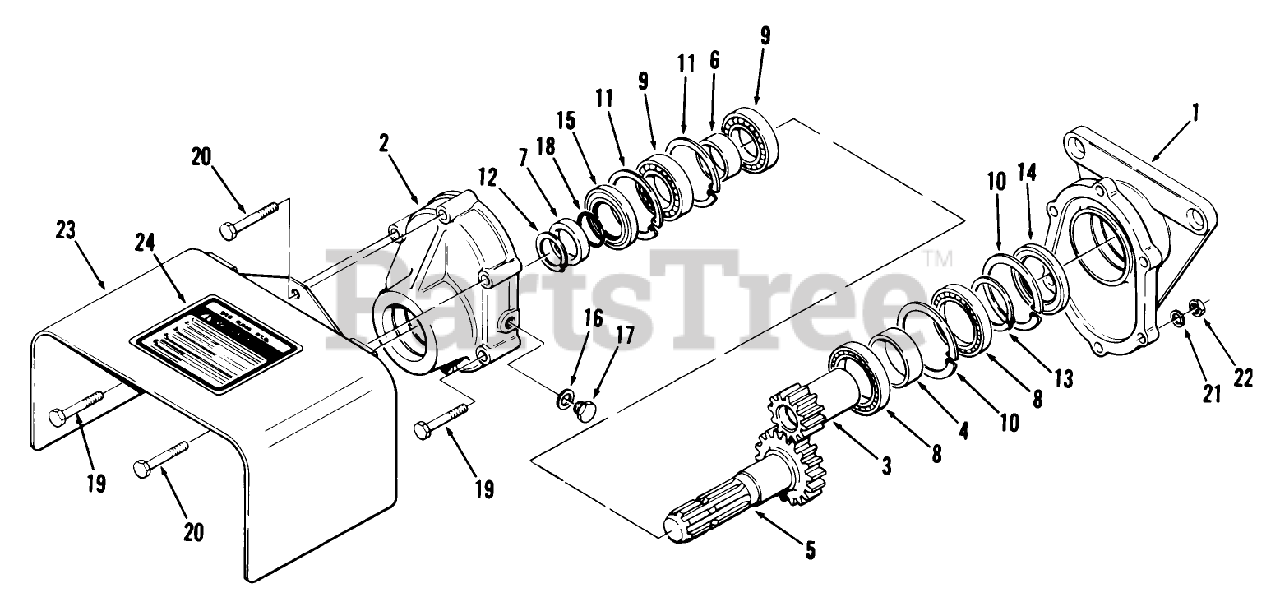

83225 - Toro Rear PTO Gear Box (1980) PARTS LIST FOR 540 RPM REAR PTO GEARBOX FACTORY ORDER NUMBER 8-3225 Parts Diagram

Rear PTO Gear Box

PARTS LIST FOR 540 RPM REAR PTO GEARBOX FACTORY ORDER NUMBER 8-3225 Parts Diagram

  • Title

1

Toro 252269

Case Half-Front

$

$

Not available

2

Toro 252270

Case Half-Rear

$

$

Not available

3

Toro 252271

Pinion Gear Assy.

$

$

Not available

4

Toro 252274

Spacer

$

$

Not available

5

Toro 252275

Output Gear

$

$

Not available

6

Toro 252276

Adapter Sleeve

$

$

Not available

7

Toro 252277

Seal Ring

$

$

Not available

8

Toro 252278

Ball Bearing

$

$

Not available

9

Toro 252285

Ball Bearing

$

$

Not available

10

Toro 252279

Retaining Ring

$

$

Not available

11

Toro 252280

Retaining Ring

$

$

Not available

12

Toro 252281

Retaining Ring

$

$

Not available

13

Toro 251227

Retaining Ring

$

$

Not available

14

Toro 251226

Seal

$

$

Not available

15

Toro 252282

Oil Seal

$

$

Not available

16

Toro 251229

Gasket

$

$

Not available

17

Toro 251423

Plug

$

$

Not available

18

Toro 251463

O-Ring

$

$

Not available

19

Toro 252283

Dowel Bolt

$

$

Not available

20

Toro 252284

Bolt

$

$

Not available

21

Toro 250457

Lockwasher

$

$

Not available

22

Toro 250373

Nut

$

$

Not available

23

Toro 106925

Drive Shield

$

$

Currently unavailable

24

Toro 106747

Warning Decal

$

$

Not available
