833 E (12AE750-100) - Cub Cadet Walk-Behind Mower Drive Assembly Parts Diagram

Walk-Behind Mower

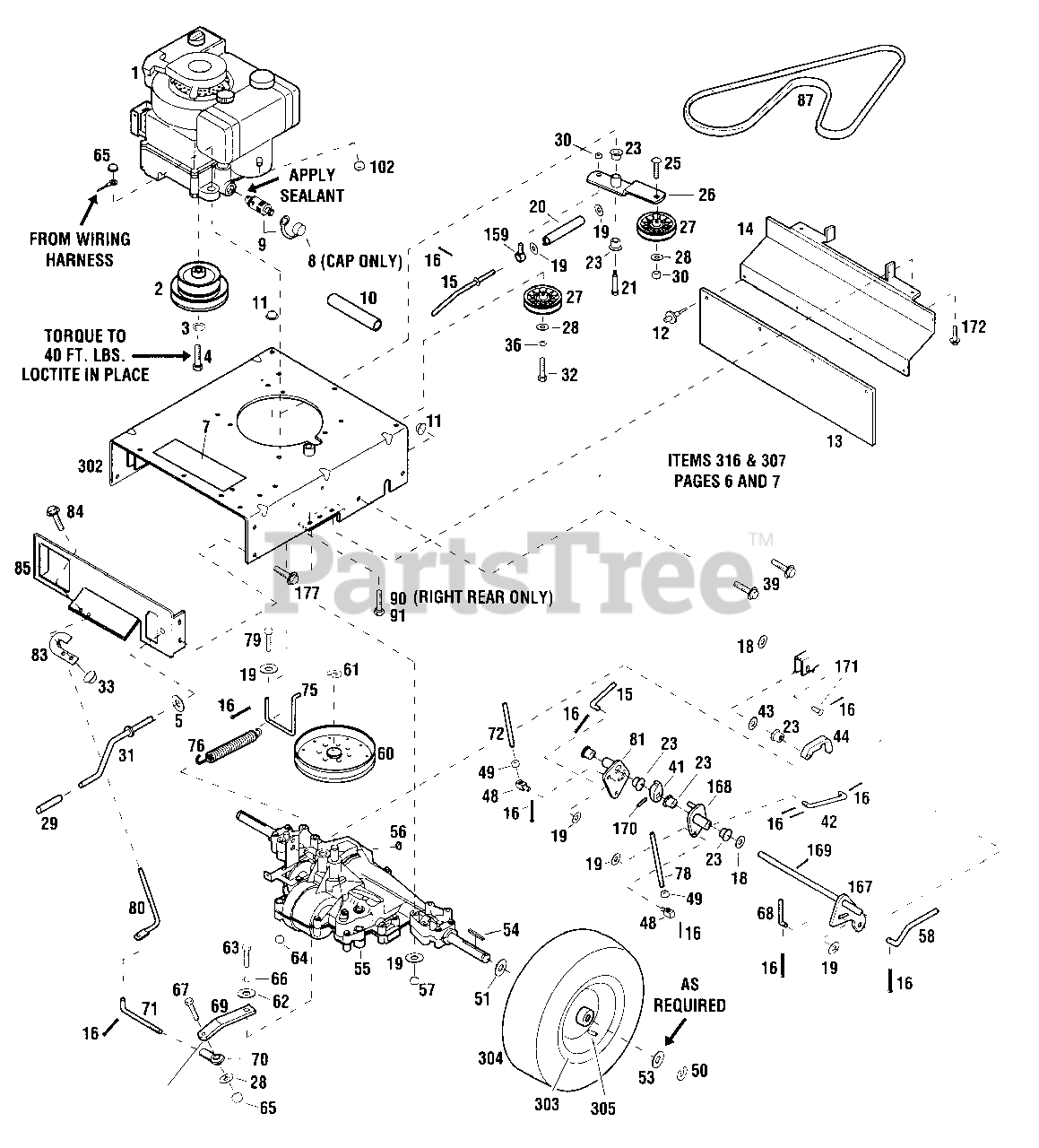

Drive Assembly Parts Diagram

  • Title

1

Engine - Electric Start or Recoil Start. Refer to engine for model/type number.

$

$

Not available

2

Cub Cadet 1769904

Engine Pulley

$

$

Not available

3

Cub Cadet 1100244

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 1740949

Bolt, 7/16 - 20 x 1 - 3/4
(Superseded to 710-04092)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 1773599

Washer, Nylon
(Superseded to 736-04070)

$

$

Not available

7

Cub Cadet 1770379

Warning Decal

$

$

Not available

8

Cub Cadet 1766326

Oil Valve Cap

$

$

Not available

9

Cub Cadet 1768865

Oil Valve (Incl. Ref. 8)
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

10

Cub Cadet 1769006

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 1186393

Flange Locknut, 3/8-16

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 1727379

Pop Rivet, 3/16

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 1769870

Flap

$

$

Not available

14

Cub Cadet 1769869072

Flap Bracket
(Superseded to 1769869001)

$

$

Not available

15

Cub Cadet 1769885

Lower Transmission Rod

$

$

Not available

16

Cub Cadet 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 1890234

Flat Washer, 1/2
(Superseded to GW-20546)

$

$

Not available

19

Cub Cadet 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

20

Cub Cadet 1711864

Compression Spring

$3.49

$

In Stock, Qty 6

0

21

Cub Cadet 1763219

Shoulder Bolt

$9.49

$

In Stock, only 2 left!

0

23

Cub Cadet 1715538

Nyliner, 1/2

$

$

Not available

25

Cub Cadet 1748393

Carriage Bolt, 3/8-16 x 1-3/4

$

$

Not available

26

Cub Cadet 1764920

Idler Arm
(Superseded to 687-02011-0637)

$47.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 1756151

Idler Pulley

$45.99

$

In Stock, only 1 left!

0

28

Cub Cadet 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 1715685

Plastic Grip
(Superseded to 720-0269)

$4.49

$

In Stock, only 4 left!

0

30

Cub Cadet 1733398

Top Loc V,nut, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 1769895

Lift Crank Assembly
(Superseded to 1915831)

$23.99

$

In Stock, only 1 left!

0

32

Cub Cadet 1100086

Bolt, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 1100243

Lock Washer, 3/8
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

39

Cub Cadet 1186347

Flange Lock Screw, 3/8-16 x 1
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

41

Cub Cadet 1769881

Interlock Cam

$7.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 1769877

Lower Brake Rod

$

$

Not available

43

Cub Cadet 1702646

Washer, Flat 1/2

$

$

Not available

44

Cub Cadet 1770361

Interlock Latch

$17.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 1725264

Swivel Block

$

$

Not available

49

Cub Cadet 1186258

Jam Nut, 5/16-18
(Superseded to 712-3007)

$6.49

$

In Stock, Qty 6

0

50

Cub Cadet 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

51

Cub Cadet 1708012

Flat Washer
(Superseded to 736-0188)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 1701447

Special Washer As required.

$3.99

$

In Stock, Qty 12

0

54

Cub Cadet 1769781

Square Key, 3/16 x 2-1/2
(Superseded to 714-0168)

$

$

Not available

55

Transmission Assembly (See Trans. for breakdown)

$

$

Not available

56

Cub Cadet 1104436

Woodruff Key, 3/16 x 3/4
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

57

Cub Cadet 1732499

Top Locknut, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

58

Cub Cadet 1770247

Lower Blade Rod

$

$

Not available

60

Cub Cadet 1770326

Transaxle Pulley

$119.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 1118808

Retaining Ring

$

$

Not available

62

Cub Cadet 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

63

Cub Cadet 1100002

Screw, 1/4-28 x 3/4
(Superseded to 710-0412)

$5.49

$

In Stock, Qty 9

0

64

Cub Cadet 1186391

Flange Locknut, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

66

Cub Cadet 1100241

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

67

Cub Cadet 1100043

Screw, 3/8 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

68

Cub Cadet 1769888

Upper Blade Rod

$

$

Not available

69

Cub Cadet 1768140

Transmission Arm

$

$

Not available

70

Cub Cadet 1767837

Ball Joint

$

$

Not available

71

Cub Cadet 1768628

Shift Link Rod

$9.49

$

In Stock, only 1 left!

0

72

Cub Cadet 1769873

Upper Transmission Rod

$

$

Not available

75

Cub Cadet 1768624

Spring Attachment Rod

$

$

Not available

76

Cub Cadet 1768636

Extension Spring

$

$

Not available

78

Cub Cadet 1769872

Upper Brake Rod

$

$

Not available

79

Cub Cadet 1111609

Screw, 5/16-18 x 2-3/4
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

80

Cub Cadet 1769874

Shift Rod

$31.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 1768488

Clutch Arm Pivot

$

$

Not available

83

Cub Cadet 1768630001

Shift Rod Bracket

$13.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 1186308

Flange Lock Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

85

Cub Cadet 1769852080

Backplate
(Superseded to 1769852001)

$

$

Not available

87

Cub Cadet 1770334

V-Belt

$46.99

$

In Stock, Qty 18

0

90

Cub Cadet 1768194

Thread Forming Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$5.99

$

In Stock, Qty 5

0

91

Cub Cadet 1762042

Thread Forming Screw, 3/8-16 x 1

$

$

Not available

102

Cub Cadet 1186229

Hex Nut,1/4-20
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

159

Cub Cadet 1769038

Eye Bolt

$

$

Not available

167

Cub Cadet 1769882

Pivot Shaft Assembly

$

$

Not available

169

Cub Cadet 1100350

Cotter Pin
(Superseded to 914-0115)

$3.49

$

In Stock, Qty 20+

0

168

Cub Cadet 1769878

Brake Arm

$

$

Not available

170

Cub Cadet 1187961

Drive Pin, 5/32 x 1
(Superseded to 915-0249)

$6.49

$

In Stock, only 4 left!

0

171

Cub Cadet 1730851

Clevis Pin, 1/2 x 1-1/4

$

$

Not available

172

Cub Cadet 1724491

Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

177

Cub Cadet 1740496

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

302

Cub Cadet 1915736

Frame Weldment Ass'y (Incl. Ref. 7)
(Superseded to 687-02014-0499)

$

$

Not available

303

Cub Cadet 1768180

Wheel Rim

Note: Sub for 1915687 NLA

$

$

Not available

304

Cub Cadet 1774129

Tire
(Superseded to 734-04237)

$114.99

$

Usually ships in 3-6 days

0

305

Cub Cadet 1718086

Valve Stem
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 97092

Loctite 242, 0.02 oz.
(Superseded to GW-97092)

Note: Tube Item not included with unit; order separately.

$17.99

$

Usually ships in 3-6 days

0
