833 R (12A-750-100) - Cub Cadet Walk-Behind Mower Front Frame Assembly Parts Diagram

Walk-Behind Mower

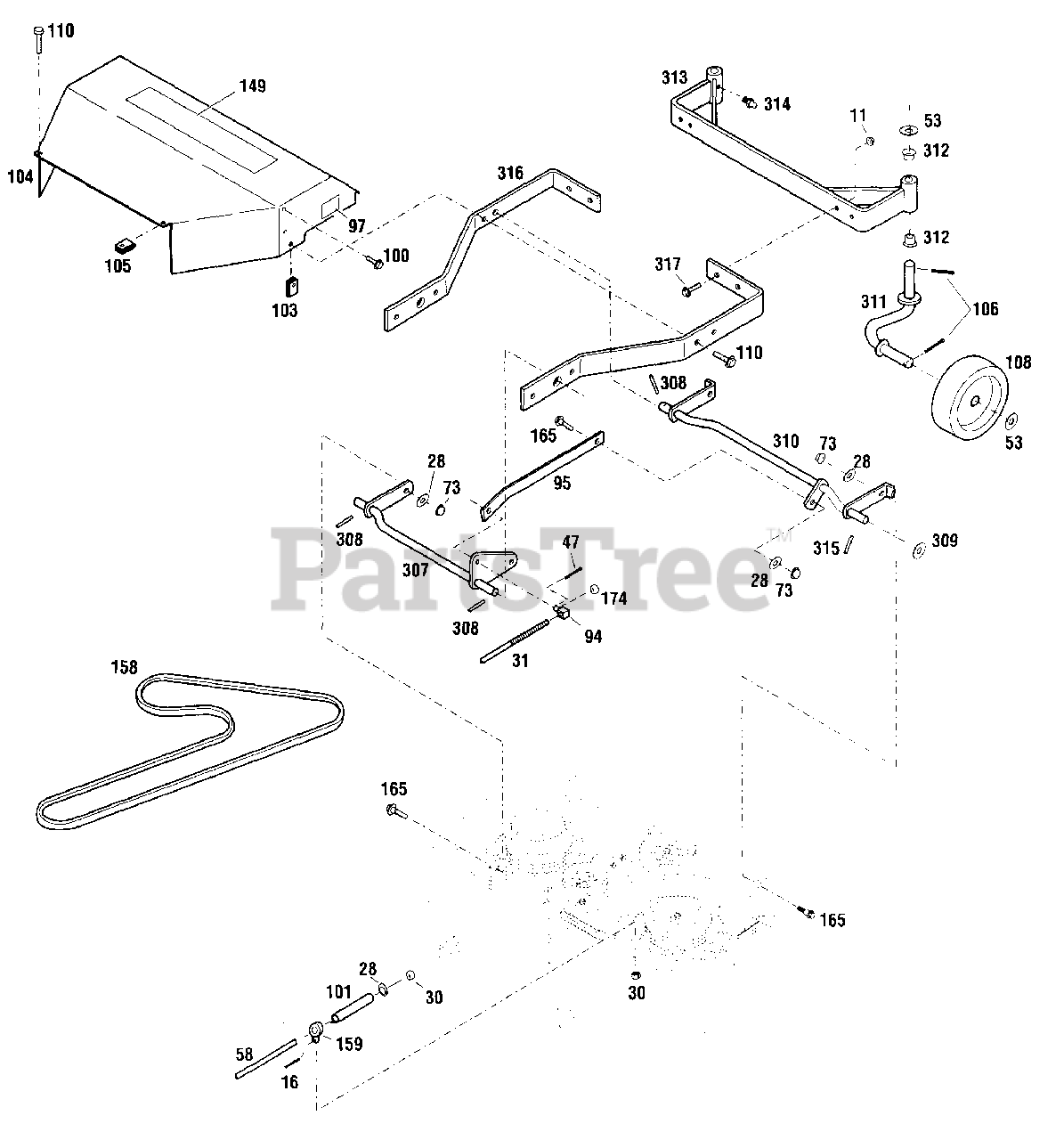

Front Frame Assembly Parts Diagram

  • Title
11

Cub Cadet 1186393

Flange Locknut, 3/8-16

$2.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 1733398

Locknut, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 1769895

Lift Crank
(Superseded to 1915831)

$23.99

$

In Stock, only 1 left!

0

47

Cub Cadet 1100349

Cotter Pin
(Superseded to 914-0474)

$

$

Not available

53

Cub Cadet 1701447

Special Washer

$3.99

$

In Stock, Qty 12

0

58

Cub Cadet 1770247

Lower Blade Rod

$

$

Not available

73

Cub Cadet 1185506

Flange Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

94

Cub Cadet 1768231

Pivot Block

$

$

Not available

95

Cub Cadet 1769521072

Leveler Bar
(Superseded to 1769521001)

$

$

Not available

97

Cub Cadet 1769889

Cutting Height Decal
(Superseded to 777I00006)

$

$

Not available

100

Cub Cadet 1769344

Tap Screw, #8 x 3/8
(Superseded to 710-0227)

$3.99

$

In Stock, Qty 20+

0

101

Cub Cadet 1769007

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 1185498

Speed Nut, 5/16-18
(Superseded to 926-04008)

$

$

Not available

104

Cub Cadet 1764996080

Belt Guard
(Superseded to 787-01018-0637)

$

$

Not available

105

Cub Cadet 1185873

Speed Nut, 5/16-18
(Superseded to 926-04006)

$12.99

$

In Stock, only 1 left!

0

108

Cub Cadet 1100352

Cotter Pin

$4.49

$

In Stock, Qty 7

0

106

Cub Cadet 1743691

Gage Wheel
(Superseded to 734-04005)

$

$

Not available

110

Cub Cadet 1186329

Flange Lock Screw, 5/16 x 3/4
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

149

Cub Cadet 1915677

Logo Decal

$

$

Not available

158

$44.99

$

In Stock, Qty 15

0

159

$

$

Not available

165

Cub Cadet 1754125

Shoulder Bolt

$6.49

$

In Stock, Qty 5

0

174

Cub Cadet 1770355

Toplock Nut
(Superseded to 712-0290)

$4.49

$

In Stock, Qty 12

0

307

Cub Cadet 1769903072

Rear Lift Assembly

$

$

Not available

308

Cub Cadet 1185469

Roll Pin, 1/4 x 1
(Superseded to 715-04034)

$6.49

$

In Stock, Qty 7

0

309

Cub Cadet 1107386

Flat Washer, 5/8
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

310

Cub Cadet 1770248072

Front Lift Assembly

$

$

Currently unavailable

311

Cub Cadet 1768477072

Spindle Assembly
(Superseded to 1768477001)

$74.99

$

In Stock, only 2 left!

0

312

Cub Cadet 1764140

Flange Bearing

$4.99

$

Usually ships in 3-6 days

0

313

Cub Cadet 1769743072

Gage Support
(Superseded to 687-02003-0637)

$

$

Not available

314

Cub Cadet 1185976

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

315

Cub Cadet 1185759

Drive Pin, 1/4 x 3

$

$

Not available

316

Cub Cadet 1769899072

Mower Support
(Superseded to 787-01003-0637)

$

$

Not available

317

Cub Cadet 1186347

Whizlock Screw, 3/8-16 x 1
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0
