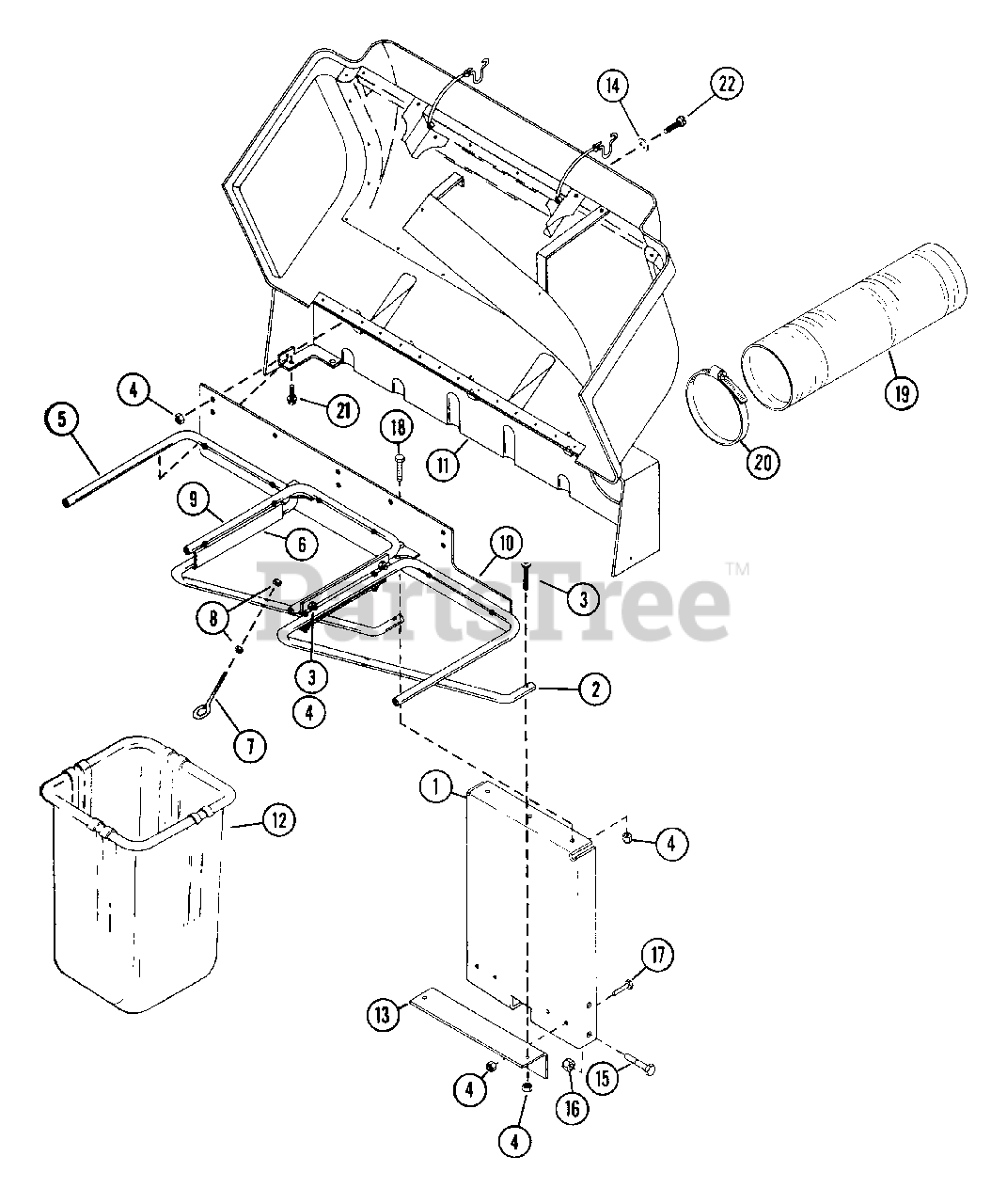

833002 - Gravely Grass Bagger 3-Basket for 4-Wheel Tractor (SN: 000101 & Above) Grass Catcher Parts Diagram

Grass Bagger 3-Basket for 4-Wheel Tractor

Grass Catcher Parts Diagram

  • Title

1

42296

Support

$

$

Not available

2

38321

Right Tube

$

$

Not available

3

35809

Screw, Machine 5/16-18x1.50

$

$

Not available

4

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

5

38322

Left Tube

$

$

Not available

6

38323

Tube Bracket

$

$

Not available

7

38324

Eyebolt

$

$

Not available

8

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

38325

Center Tube

$

$

Not available

10

38534

Mounting Bracket

$

$

Not available

11

38535

Cover Assembly

$

$

Not available

12

38328

Grass Bagger Basket

$

$

Not available

13

38530

Bracket

$

$

Not available

14

38335

Washer, .339/.359x1.125x.063 Pl

$

$

Not available

15

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

18

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

19

42299

Hose

$

$

Not available

20

38532

Hose Clamp

$

$

Not available

21

Gravely 180073

Bolt, Hex 5/16-18x.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 15

0

22

38334

Screw, Machine 5/16-18x.75 T/Hd

$

$

Not available
