833007 - Gravely 32" Snow Blower for 2-Wheel Tractor (SN: 000101 & Above) Blower Housing And Controls Parts Diagram

32" Snow Blower for 2-Wheel Tractor

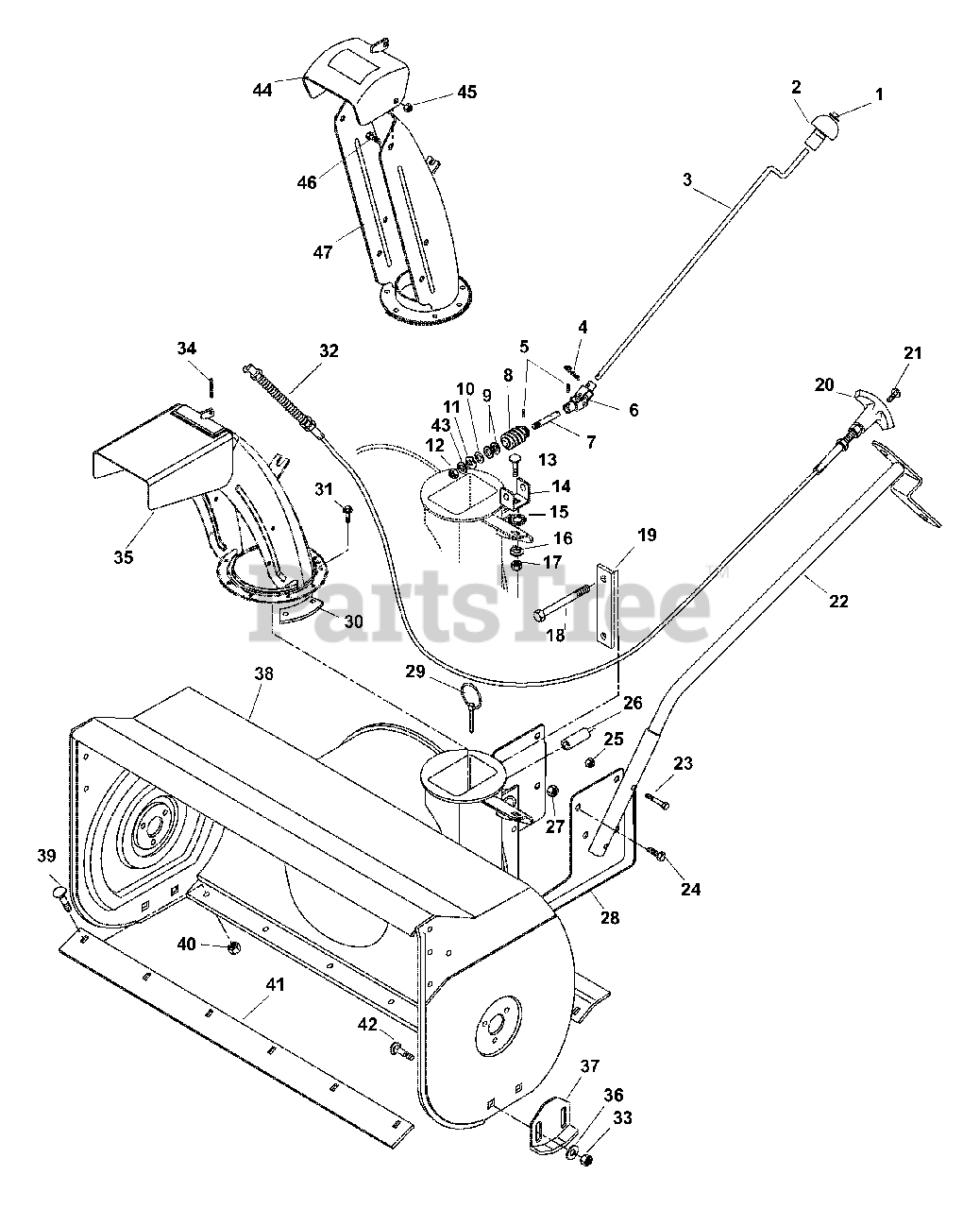

Blower Housing And Controls Parts Diagram

  • Title
1

Gravely 036903

Cap - 3/8" Rod
(Superseded to 01019800)

$2.99

$

In Stock, Qty 7

0

2

Gravely 036902

Knob
(Superseded to 07508300)

$15.99

$

In Stock, only 2 left!

0

3

Gravely 038849

Crank Chute Control
(Superseded to 03330600)

$

$

Not available

4

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 05803400

Pin-Roll .125 x .750

$0.99

$

In Stock, Qty 10

0

6

Gravely 02470400

Universal Joint Assembly

$129.99

$

Usually ships in 4-12 days

0

7

Gravely 038841

Worm Shaft
(Superseded to 02451400)

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 038839

Worm Gear Left Hand
(Superseded to 02450000)

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 038840

Washer-Plastic .390 x .875 x .062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0

10

Gravely 06443800

Washer-Flat-Steel .43 x 1.00 x .16

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 038843

Wave Washer
(Superseded to 01320200)

$3.49

$

In Stock, Qty 7

0

12

Gravely 06529600

Nut-Lock-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06220800

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

14

Gravely 038837

Worm Clevis
(Superseded to 02212300)

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 06307000

Washer-Lock External .375 x .035

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06310600

Washer-Lock .313 x .062

$5.99

$

In Stock, only 1 left!

0

17

Gravely 06529200

Nut-Hex .312-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

18

Gravely 05962300

Bolt-Hex .50-13 x 4.50
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

19

Gravely 035053

Strap, Locking
(Superseded to 08538200)

$62.99

$

In Stock, only 2 left!

0

20

Gravely 07530800

Knob-Black

$9.99

$

In Stock, only 1 left!

0

21

Gravely 07029300

Screw-Machine 8-32 x .75

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 03329743

Crank Support

$50.99

$

Usually ships in 4-12 days

0

23

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

25

Gravely 06512200

Nut-Locking Top .375-16

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 035054

Bushing Sleeve .501 x 1.00 x 2.30
(Superseded to 08538800)

$37.99

$

Usually ships in 4-12 days

0

27

Gravely 06540600

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 03336843

Support Bracket

$

$

Not available

29

Gravely 021244

Pin-Self-Lock .25 x 1.00
(Superseded to 07014300)

$11.99

$

Usually ships in 4-12 days

0

30

Gravely 049103

Chute Clamp
(Superseded to 02463500)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 07411300

Screw-Tapping 12-24 x .50

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 06943400

Control Cable

$166.99

$

In Stock, only 1 left!

0

33

Gravely 06529600

Nut-Locking .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

35

Gravely 53128500

Chute, Discharge with Cap-Krinkle Black

Note: (S/N 002000 and up)

$387.99

$

Usually ships in 4-12 days

0

36

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 02483043

Runner-Skid Shoe

Note: (S/N 001952 and up)

$35.99

$

Usually ships in 4-12 days

0

Gravely 03075553

Runner-Skid Shoe

Note: (S/N 000101 to 001951)

$36.99

$

Usually ships in 4-12 days

0

38

Gravely 53303300

32" Sno-Thro Housing

Note: (S/N 001952 and up)

$

$

Not available

Gravely 53302400

32" Sno-Thro Housing

Note: (S/N 000101 to 001951)

$

$

Not available

39

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x .88
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

40

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 03331543

Scraper Blade, 32"

$57.99

$

In Stock, only 1 left!

0

42

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 53301800

Deflector with Decal

Note: (S/N 000101 to 001999)

$

$

Not available

45

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

Note: (S/N 000101 to 001999)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 180120

Bolt-Hex .38-16X.75 Grade 5
(Superseded to 05901702)

Note: (S/N 000101 to 001999)

$1.49

$

In Stock, only 3 left!

0

47

Gravely 038835

Discharge Chute
(Superseded to 02449953)

Note: (S/N 000101 to 001999)

$213.99

$

Usually ships in 4-12 days

0
