833007 - Gravely 32" Snow Blower for 2-Wheel Tractor (SN: 000101 & Above) Blower Housing And Controls Parts Diagram

32" Snow Blower for 2-Wheel Tractor

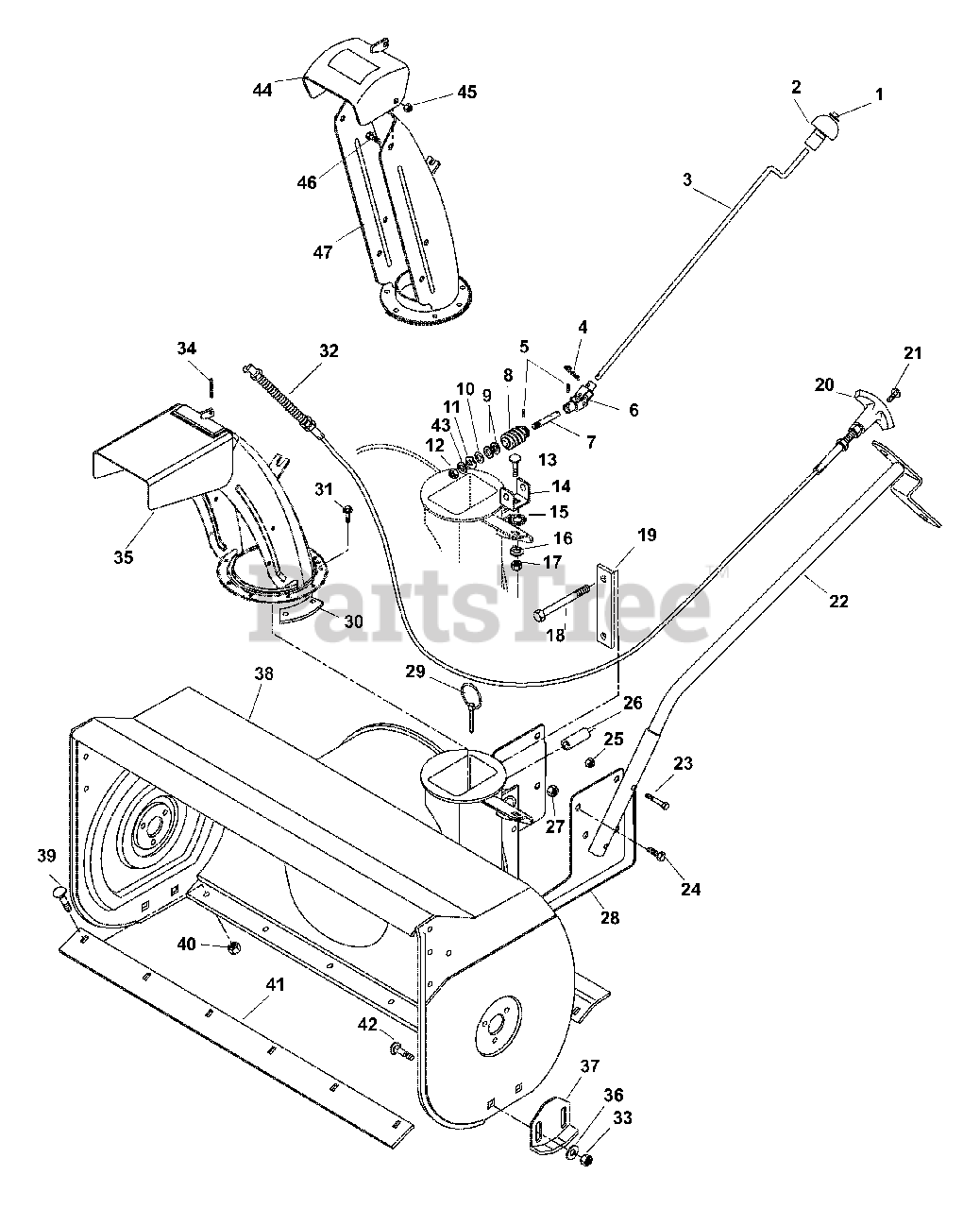

Blower Housing And Controls Parts Diagram

  • Title

1

Gravely 036903

CAP, 3/8 ROD YWZC
(Superseded to 01019800)

$2.99

$

In Stock, only 3 left!

0

2

Gravely 036902

KNOB
(Superseded to 07508300)

$14.99

$

In Stock, only 2 left!

0

3

Gravely 038849

CRANK CHUTE CONTROL
(Superseded to 03330600)

$

$

Not available

4

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 12

0

6

Gravely 02470400

UNIVERSAL JOINT ASS'Y

$131.99

$

In Stock, only 1 left!

0

7

Gravely 038841

WORM SHAFT
(Superseded to 02451400)

$

$

Not available

8

Gravely 038839

WORM GEAR L.H.
(Superseded to 02450000)

$

$

Not available

9

Gravely 038840

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

10

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

$3.99

$

In Stock, only 1 left!

0

11

Gravely 038843

WAVE WASHER .390X.655X.110
(Superseded to 01320200)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

14

Gravely 038837

WORM CLEVIS
(Superseded to 02212300)

$16.99

$

Usually ships in 4-12 days

0

15

Gravely 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06310600

WSHR-LK PYM .31X.062YWZC

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

19

Gravely 035053

STRAP,LOCKING
(Superseded to 08538200)

$50.99

$

In Stock, only 2 left!

0

20

Gravely 07530800

KNOB, CONTROL

$9.99

$

In Stock, only 1 left!

0

21

Gravely 07029300

SCR-MCH 8-32X.75 PN HD YWZC

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 03329743

SUPPORT, CRANK

$

$

Not available

23

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

25

Gravely 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 035054

BUSH.,S.501X1.00X2.30 ST
(Superseded to 08538800)

$

$

Not available

27

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 03336843

BRACKET, SUPPORT

$

$

Not available

29

Gravely 021244

PIN-SELF-LOCK .25X1.00 YWZC
(Superseded to 07014300)

$

$

Not available

30

Gravely 049103

CHUTE CLAMP
(Superseded to 02463500)

$17.99

$

Usually ships in 4-12 days

0

31

Gravely 07411300

SCR-TAP 12-24X.50 TORX YWZC TR

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 06943400

CABLE, CONTROL W/HANDLE/SCREW

$171.99

$

Usually ships in 4-12 days

0

33

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

35

Gravely 53128500

CHUTE,DISCHARGE-KRKL BLACK

Note: (S/N 002000 and up)

$395.99

$

Usually ships in 4-12 days

0

36

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 02483043

RUNNER, SKID SHOE-1/2" FLANGE

Note: (S/N 001952 and up)

$40.99

$

Usually ships in 4-12 days

0

Gravely 03075553

RUNNER - SKID SHOE

Note: (S/N 000101 to 001951)

$40.99

$

Usually ships in 4-12 days

0

38

Gravely 53303300

HOUSING, BLOWER - 32"

Note: (S/N 001952 and up)

$

$

Not available

Gravely 53302400

HOUSING, BLOWER - 32"

Note: (S/N 000101 to 001951)

$

$

Not available

39

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 03331543

BLADE, SCRAPER - 32"

$60.99

$

Usually ships in 4-12 days

0

42

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 53301800

DEFLECTOR W/ DECAL

Note: (S/N 000101 to 001999)

$

$

Not available

45

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (S/N 000101 to 001999)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (S/N 000101 to 001999)

$1.99

$

In Stock, Qty 14

0

47

Gravely 038835

DISCHARGE CHUTE
(Superseded to 02449953)

Note: (S/N 000101 to 001999)

$

$

Not available
