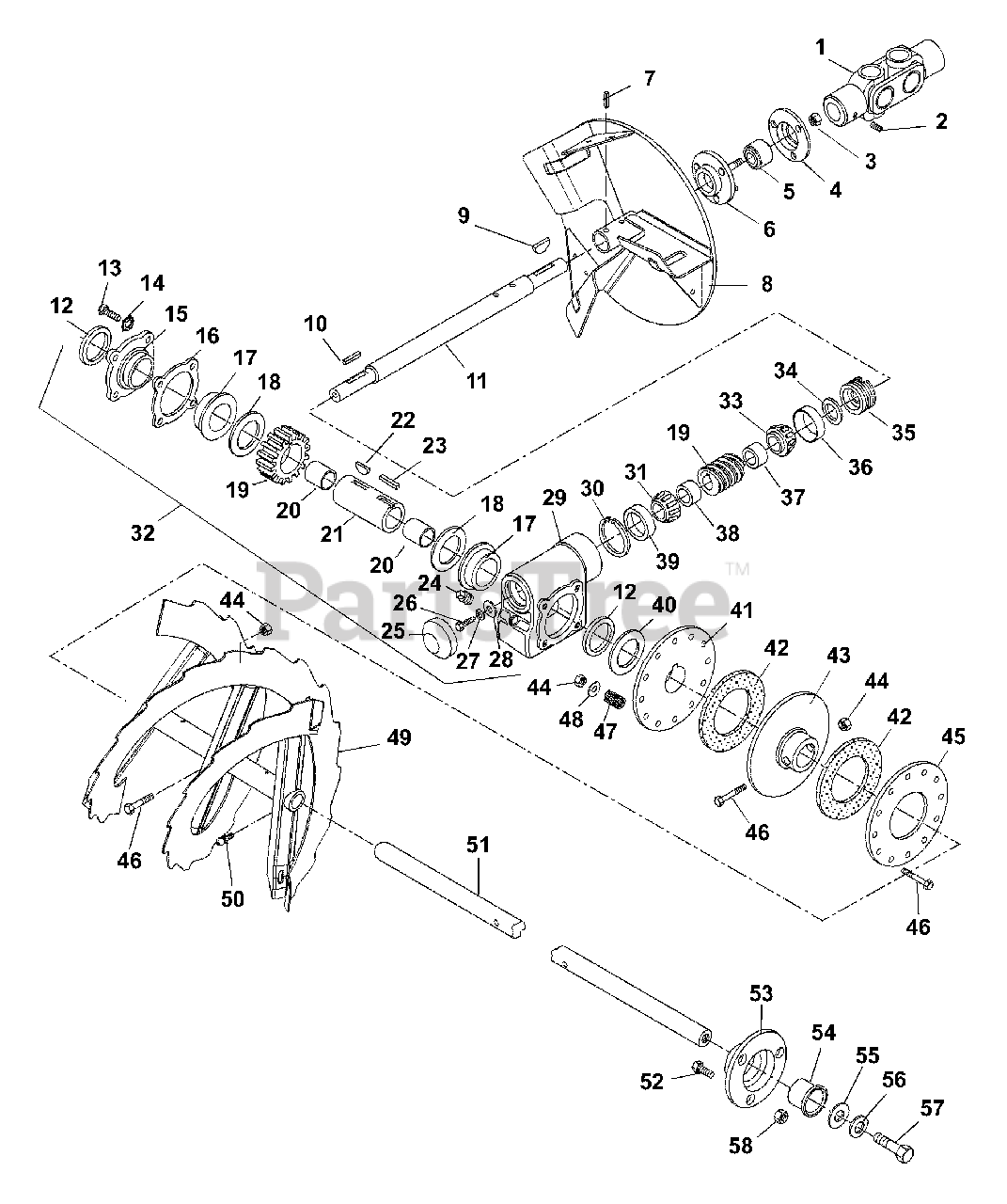

833007 - Gravely 32" Snow Blower for 2-Wheel Tractor (SN: 000101 & Above) Gearcase And Rake Parts Diagram

32" Snow Blower for 2-Wheel Tractor

Gearcase And Rake Parts Diagram

  • Title

1

Gravely 03329900

G-JOINT ASSEMBLY

$593.99

$

Usually ships in 4-12 days

0

2

Gravely 102592

SCR-SET .38-16X.38 SKHCUP OH
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 051655

BEARING FLANGE
(Superseded to 03086100)

$17.99

$

In Stock, only 2 left!

0

5

Gravely 051656

BRG-BALL1.0X2.0X.56
(Superseded to 05418200)

$34.99

$

In Stock, only 2 left!

0

6

Gravely 051657

BEARING FLANGE
(Superseded to 03086200)

$23.99

$

In Stock, only 2 left!

0

7

Gravely 036869

PIN-ROLL .313X1.75
(Superseded to 05801500)

$2.99

$

In Stock, only 2 left!

0

8

Gravely 03097951

FAN - 16"
(Superseded to 03097943)

$

$

Not available

9

Gravely 06608200

KEY-WDRF .188X.875 HRDN #11

$3.99

$

In Stock, only 1 left!

0

10

Gravely 036230

KEY-SQ .188X1.0X.188 SAE 8630
(Superseded to 06601300)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 049156

WORM SHAFT 16
(Superseded to 03335200)

$

$

Not available

12

Gravely 036863

SEAL 1.625X2.125X.250
(Superseded to 05607000)

$10.99

$

In Stock, only 2 left!

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 036861

GEAR CASE COVER
(Superseded to 02401300)

$139.99

$

Usually ships in 4-12 days

0

16

Gravely 036862

GASKET
(Superseded to 00200800)

$3.99

$

In Stock, Qty 8

0

17

Gravely 036860

BSHG-FLG .683X1.87X1.68X2.250
(Superseded to 05505900)

$15.99

$

In Stock, only 2 left!

0

18

Gravely 036859

WSHR-FL-STL 1.625X2.500X.012
(Superseded to 06408700)

$11.99

$

In Stock, only 2 left!

0

19

Gravely 036858

WORM & GEAR SERVICE ASSEMBLY
(Superseded to 52400900)

$180.99

$

In Stock, only 1 left!

0

20

Gravely 037532

BSHG-SLV 1.125X1.250X1.000
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 037530

GEAR CASE SHAFT
(Superseded to 03054700)

$116.99

$

In Stock, only 1 left!

0

22

Gravely 038820

KEY-FTHR .25X.875X.25 SAE 8630
(Superseded to 06604800)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 037536

KEY-SQ .25X.625X.375
(Superseded to 06604700)

$9.99

$

In Stock, only 2 left!

0

24

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 036856

DUST CAP
(Superseded to 00403700)

$18.99

$

In Stock, only 2 left!

0

26

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 037524

GEAR CASE - CAST IRON

$

$

Not available

30

Gravely 036921

RG-RTNG-INT 1.781X.062
(Superseded to 05707500)

$9.99

$

In Stock, Qty 7

0

31

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

32

Gravely 53301900

GEAR CASE-G 40-48 ST - C.I.

$

$

Not available

33

Gravely 038110

BRG-CONE 1.0X.58
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

34

Gravely 037528

SEAL 1.125X1.375X.125
(Superseded to 05604600)

$10.99

$

In Stock, Qty 5

0

35

Gravely 037529

ADJUSTMENT PLUG
(Superseded to 03188200)

$59.99

$

Usually ships in 4-12 days

0

36

Gravely 038109

BRG-CUP1.980X.420
(Superseded to 05407000)

$18.99

$

In Stock, Qty 20+

0

37

Gravely 036352

BEARING SPACER 1.032X1.25X1.78
(Superseded to 03188100)

$27.99

$

Usually ships in 4-12 days

0

38

Gravely 036852

BSHG, SPCR .755X1.12X.50 PM
(Superseded to 00200500)

$7.49

$

In Stock, Qty 7

0

39

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

40

Gravely 037535

WSHR-FL-NYL 1.625X2.500X.060
(Superseded to 06421100)

$9.99

$

Usually ships in 4-12 days

0

41

Gravely 037537

DRIVER
(Superseded to 03055000)

$

$

Not available

42

Gravely 037538

FRICTION DISC
(Superseded to 03055100)

$

$

Not available

43

Gravely 037539

DRIVEN PLATE
(Superseded to 03055200)

$

$

Not available

44

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

45

Gravely 037540

PRESSURE PLATE
(Superseded to 03055300)

$

$

Not available

46

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

47

Gravely 08321600

SG-COMP .156X.665X.75

$9.99

$

Usually ships in 4-12 days

0

48

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

49

Gravely 53302900

RAKE, RIGHT-32(1.12ID X 15.75)

Note: (Includes #50)

$452.99

$

Usually ships in 4-12 days

0

Gravely 53303000

RAKE, LEFT-32"(1.12ID X 15.75)

Note: (Includes #50)

$

$

Not available

50

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

51

Gravely 038831

32 INCH RAKE SHAFT
(Superseded to 03329100)

$263.99

$

Usually ships in 4-12 days

0

52

Gravely 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, only 4 left!

0

53

Gravely 02437451

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 2 left!

0

54

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$13.99

$

In Stock, Qty 14

0

55

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

56

Gravely 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

In Stock, only 2 left!

0

57

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

58

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 7

0
